Wilkins 8-375ASTDA 8 RDC PRS BFP

Product Description

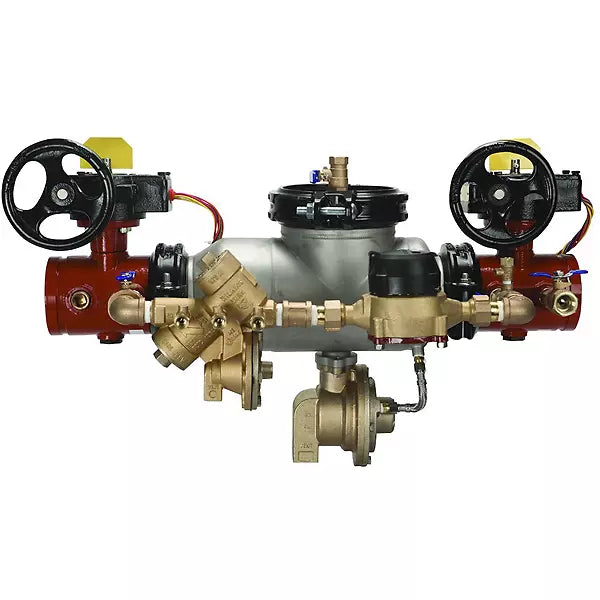

The WILKINS 8-375ASTDA 8 RDC PRS BFP reduced pressure detector assembly with stainless steel body provides high hazard protection. It is ideal for fire protection applications, with a metered by-pass to detect leaks and unauthorized water use. Designed with short lay-length for small space installation and improved flow characteristics.

• Short lay-length for small space installation
• Improved flow characteristics, allowing for installation in lower-pressure systems
• Corrosion resistant

Product Highlights

The Wilkins 375ASTDA is a reduced pressure detector assembly with stainless steel body, ideal for fire protection.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 8-375ASTDA

Technical Specifications

• Item Name: Reduced Pressure Detector Assembly With Grooved End Butterfly Valve And Integral Supervisory Switch
• Type: Backflow Preventer
• Series/Model: Model 375ASTDA
• Nominal Size: 8 IN
• Connection Type: Grooved End
• Pressure Rating: 175 PSI
• Temperature Rating: 140 DEG F
• Body Material: 304L Stainless Steel
• Stem Material: Stainless Steel
• Trim Material: EPDM Disc
• Material Standard: Stem: ASTM A276
• Industry Standards: ASSE Listed 1047, Certified To NSF/ANSI 61, CSA Certified B64.4, AWWA Compliant C550, FM Approved, UL/CUL Classified, AWWA C606
• Width: 45-3/4 IN
• Height: 34-1/8 IN
• Lead Free: Yes
