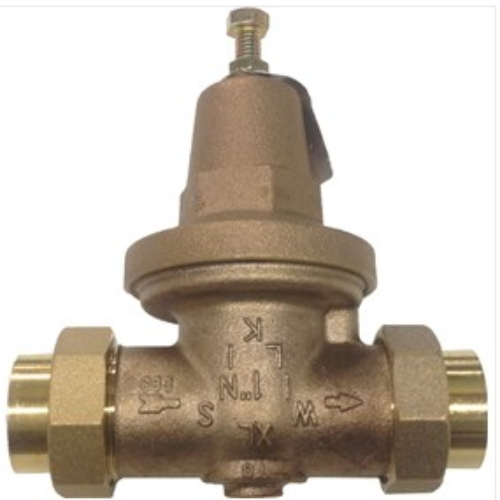

Wilkins 70XLDUC1 Pressure Reducing Valve 1 Inch Double Union Female C 300 Psi Cast Bronze

Product Description

The Wilkins 70XLDUC1 is a lead-free pressure reducing valve built for demanding plumbing and water distribution systems. Designed for 1-inch nominal pipe connections, this valve features a double union female C end connection that allows for easy in-line installation and removal without disturbing adjacent piping. It is part of the trusted Zurn Wilkins 70XL Series, which is widely used by licensed plumbers, mechanical contractors, and facilities maintenance professionals across commercial and residential applications. The valve regulates incoming water pressure to a safe and consistent downstream level, protecting fixtures, appliances, and piping from high-pressure damage. It is rated for service up to 300 psi and handles water temperatures up to 140 degrees Fahrenheit, making it suitable for a broad range of cold and hot water supply systems. The cast bronze body provides excellent corrosion resistance and long service life in potable water environments. Internal trim components are made from 300 series stainless steel, covering the seat, stem, and sleeve for reliable sealing and smooth operation over many years of service. The elastomers used in the valve are Buna Nitrile and EPDM, both well-suited for water service. The inlet to outlet length measures approximately 5 and 7 eighths inches, and the overall height is approximately 6 and 11 sixteenths inches. The unit ships as a single piece and weighs approximately 4.15 pounds. It is manufactured in the USA and complies with lead-free standards for potable water systems. Plumbers and pipe fitters searching for a reliable 1-inch PRV, pressure regulator valve, or water pressure reducing valve will find the 70XLDUC1 a solid choice for both new construction and retrofit projects.

• Lead-free cast bronze body rated for potable water service up to 300 psi and 140 degrees Fahrenheit
• Double union female C end connections allow for convenient in-line removal and reinstallation
• 300 series stainless steel seat, stem, and sleeve trim with Buna Nitrile and EPDM elastomers for long-lasting reliability

Product Highlights

The Wilkins 70XLDUC1 delivers dependable pressure regulation for commercial and residential water systems in a lead-free, USA-made cast bronze body. Its double union design simplifies maintenance and service without disrupting the surrounding piping layout.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 70XLDUC1

Technical Specifications

• Series: 70XL
• Nominal Size: 1 inch
End Connection: Double Union Female C
• Maximum Pressure Rating: 300 psi
• Maximum Temperature Rating: 140 degrees Fahrenheit
• Media: Water
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Seat, Stem, and Sleeve
• Elastomers: Buna Nitrile and EPDM
• Inlet to Outlet Length: 5 and 7 eighths inches
• Overall Height: 6 and 11 sixteenths inches
• Lead Free: Yes
• Country of Origin: USA
• Package Quantity: 1
• Weight: 4.15 pounds
