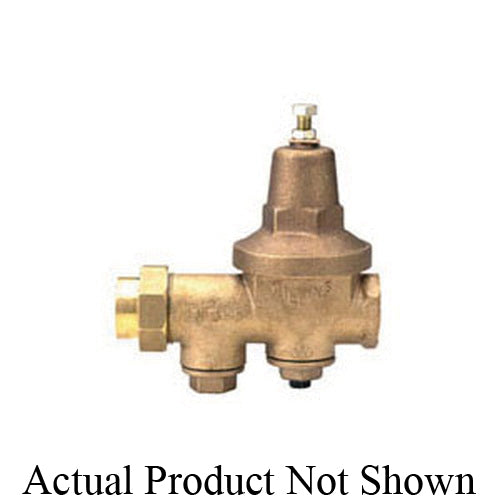

Wilkins 610XL-1 Pressure Reducing Valve With Integral By-Pass Check Valve and Strainer 400 psi

Product Description

The WILKINS 610XL-1 is a pressure reducing valve with an integral bypass check valve and strainer. Designed for high flow capacity, this valve features an easily cleaned integral strainer with the removal of one cap. It has a cast bronze body and is suitable for water media.

• Designed for high flow capacity
• Integral strainer is easily cleaned with the removal of one cap
• 75 psi to 125 psi spring range, factory set at 85 psi

Product Highlights

Pressure reducing valve with integral bypass, check valve, and strainer. Ideal for maintaining consistent pressure in water systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 610XL-1

Technical Specifications

• Body Material: Cast Bronze
• End Style: FNPT Union x FNPT
• Inlet to Outlet Length: 6-1/8 in
• Media: Water
• Nominal Size: 1 in
• Pressure Range: 400 psi
• Series: 600XL
• Softgoods Material: Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin ) Cap Gasket
• Temperature Rating: 140 deg F
• Trim Material: 300 Stainless Steel Seat
