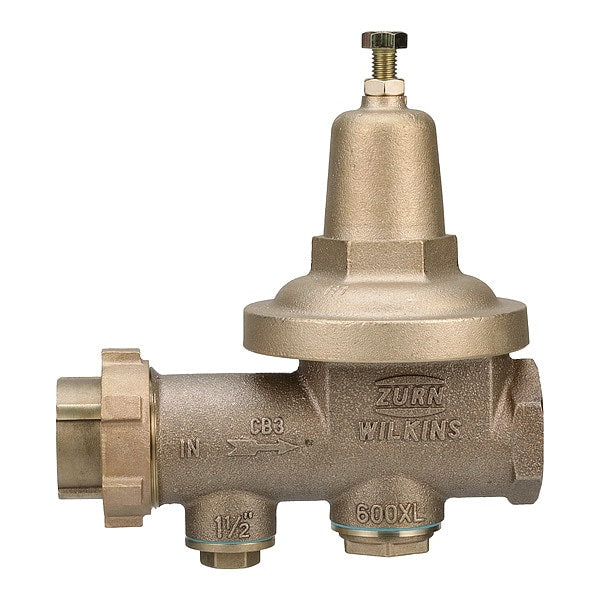

Wilkins 600XLHR112 Water Pressure Reducing Valve 1-1/2 Inch

Product Description

The Wilkins 600XLHR112 is a heavy-duty water pressure reducing valve designed for commercial and industrial plumbing systems. Pressure reducing valves, also called PRVs, control and limit the incoming water pressure from a municipal supply line or high-pressure source. They protect downstream piping, fixtures, and equipment from damage caused by excessive pressure. The 600XLHR112 features a 1-1/2 inch pipe size with both inlet and outlet connections at 1-1/2 inches, making it suited for larger-diameter systems that handle significant water flow volumes. Licensed plumbers, mechanical contractors, and facilities maintenance professionals rely on valves like this one for commercial buildings, multi-unit residential properties, irrigation systems, and industrial process applications. Wilkins is a well-established name in flow control products, known for producing pressure regulation equipment that meets the demands of professional trade work. The 600XLHR112 is manufactured in the United States, which supports consistent quality standards and material traceability. The overall height of this valve measures approximately 10-5/16 inches, with a working height of 10 inches and a body length of 9-1/8 inches. The overall width measures 5-5/16 inches. These dimensions are important when planning installation in mechanical rooms, utility chases, or inline piping runs where clearance is limited. The XL and HR designations in the model number indicate an extended body and high-flow or heavy-duty range configuration, making this valve appropriate for systems with elevated flow demands. Proper pressure regulation reduces pipe stress, extends the service life of water heaters and fixtures, and lowers the risk of costly leaks or burst pipes. This valve is a reliable choice for any PRV replacement or new installation project requiring a 1-1/2 inch connection size.

• 1-1/2 inch inlet and outlet connection size for large-diameter commercial plumbing systems
• Heavy-duty extended body design suited for high-flow water pressure regulation applications
• Manufactured in the United States for consistent quality and material standards

Product Highlights

The Wilkins 600XLHR112 water pressure reducing valve delivers reliable pressure control in demanding commercial and industrial plumbing systems, with a 1-1/2 inch connection size and a robust extended body built for high-flow performance.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XLHR112

Technical Specifications

• Pipe Size: 1-1/2 inches
• Inlet Connection Size: 1-1/2 inches
• Outlet Connection Size: 1-1/2 inches
• Overall Height: 10-5/16 inches
• Height: 10 inches
• Length: 9-1/8 inches
• Overall Width: 5-5/16 inches
• Country of Origin: United States
