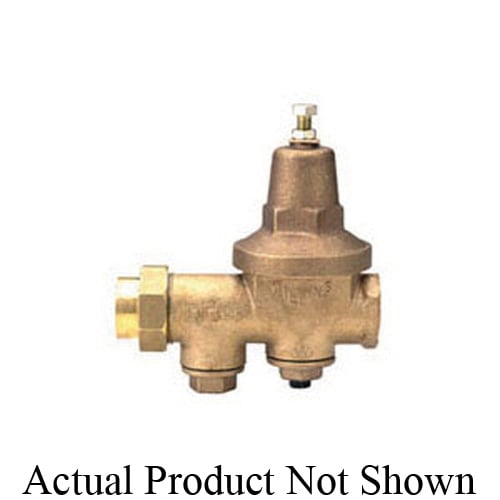

Wilkins 600XLC112 600XL Pressure Reducing Valve with Integral By-pass Check Valve and Strainer 1-1/2 in Female C Union X Fnpt

Product Description

The WILKINS 600XLC112 is a lead-free pressure reducing valve (PRV) from the 600XL series. It is designed for commercial and residential plumbing systems that require precise downstream pressure control. This valve features an integral by-pass check valve and a built-in strainer, combining three critical functions into a single, compact unit. Plumbers and mechanical contractors use this type of valve to protect downstream piping, fixtures, and appliances from high incoming supply pressure. By reducing and maintaining a consistent outlet pressure, the valve helps extend the service life of water heaters, boiler feed lines, irrigation systems, and other pressurized water equipment.

The 600XLC112 has a nominal size of 1-1/2 inches and uses a Female C Union inlet connection with a Female NPT (FNPT) outlet. This connection style allows for straightforward installation and removal during maintenance without disturbing the surrounding piping. The valve body is made from cast bronze, a material well suited for potable water service because of its corrosion resistance and long-term durability. The seat trim is 300 stainless steel, which resists wear and maintains a reliable seal over time. Internal elastomers include Buna Nitrile and EPDM, along with a natural vulcanized fiber and Acetal (Delrin) cap gasket. These materials are compatible with standard municipal water supplies and contribute to a tight, consistent shutoff.

This valve is rated for a maximum working pressure of 300 psi and a maximum temperature of 140 degrees Fahrenheit, making it suitable for cold and warm water service in typical commercial plumbing applications. The overall height is 10 inches, and the inlet-to-outlet length measures 9-1/8 inches. These dimensions are important when planning installation in tight mechanical rooms or equipment chases. The 600XL series is a well-recognized product line among plumbing professionals for its reliability in pressure management on potable water systems.

• Lead-free cast bronze body meets potable water compliance requirements for commercial and residential plumbing
• Integral by-pass check valve and strainer built in, reducing the need for separate components and fittings
• 300 stainless steel seat trim and Buna Nitrile/EPDM elastomers provide durable, long-term sealing performance

Product Highlights

The WILKINS 600XLC112 delivers reliable pressure reduction, backflow protection, and straining in one lead-free bronze valve. Its 1-1/2 inch Female C Union x FNPT configuration suits a wide range of commercial plumbing installations requiring 300 psi pressure-rated components.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XLC112

Technical Specifications

• Series: 600XL
• Nominal Size: 1-1/2 inches
• End Style: Female C Union x FNPT
• Pressure Range: 300 psi
• Temperature Rating: 140 degrees F
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Seat
• Softgoods Material: Buna Nitrile/EPDM Elastomers, Natural Vulcanized Fiber, Acetal (Delrin) Cap Gasket
• Media: Water
• Inlet to Outlet Length: 9-1/8 inches
• Height: 10 inches
• Domestic/Import: Import
