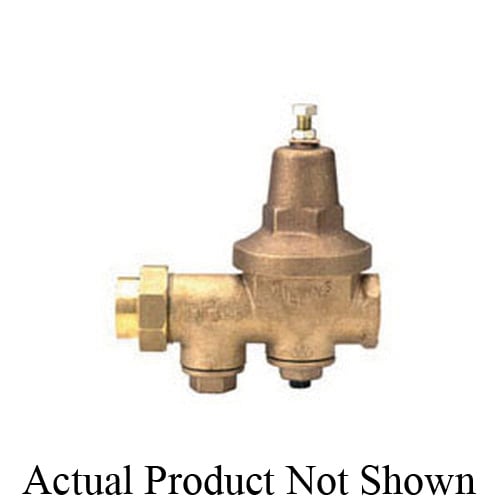

Wilkins 600XLC1 600XL Pressure Reducing Valve with Integral By-pass Check Valve and Strainer 1 Inch Female C Union X Fnpt

Product Description

The Wilkins 600XLC1 is a lead-free pressure reducing valve from the 600XL Series, designed for reliable water pressure control in commercial and residential plumbing systems. This valve combines a pressure reducing function with an integral by-pass check valve and a built-in strainer, making it a compact, multi-function solution for plumbing professionals and mechanical contractors. The 1 inch nominal size fits standard pipe configurations, and the Female C Union x FNPT end style allows for straightforward installation and easy service without cutting into the line. The cast bronze body provides lasting resistance to corrosion in potable water applications, standing up to the demands of daily use in both new construction and retrofit projects. HVAC technicians, plumbers, and facility maintenance crews rely on pressure reducing valves like the 600XLC1 to protect downstream fixtures and equipment from high inlet pressures that can cause premature wear, leaks, or damage. The integral strainer catches debris before it reaches sensitive components, reducing maintenance calls and extending system life. The by-pass check valve prevents backflow, adding an extra layer of protection in systems where back pressure is a concern. Rated to 300 psi and 140 degrees Fahrenheit, this valve handles the pressure and temperature demands of typical municipal water supply connections. The 300 stainless steel seat trim delivers a precise, long-lasting seal. Softgoods include Buna Nitrile and EPDM elastomers, natural vulcanized fiber, and an Acetal cap gasket, all selected for compatibility with potable water service. The valve measures 7.25 inches in height with an inlet to outlet length of 6.125 inches, fitting within standard mechanical room and utility space constraints. Lead-free construction meets current plumbing code requirements for potable water contact.

• Integral by-pass check valve and strainer built into a single compact valve body
• Cast bronze body with 300 stainless steel seat trim for corrosion resistance and long service life
• Lead-free construction compliant with potable water plumbing codes

Product Highlights

The Wilkins 600XLC1 delivers pressure regulation, backflow protection, and debris filtration in one unit, saving installation time and reducing the number of fittings needed in a plumbing system. Its cast bronze body, stainless steel seat, and code-compliant lead-free design make it a dependable choice for trade professionals working on water supply systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XLC1

Technical Specifications

• Series: 600XL
• Nominal Size: 1 inch
• End Style: Female C Union x FNPT
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Seat
• Softgoods Material: Buna Nitrile and EPDM Elastomers, Natural Vulcanized Fiber, Acetal Cap Gasket
• Pressure Rating: 300 psi
• Temperature Rating: 140 degrees F
• Media: Water
• Height: 7.25 inches
• Inlet to Outlet Length: 6.125 inches
• Domestic or Import: Import
