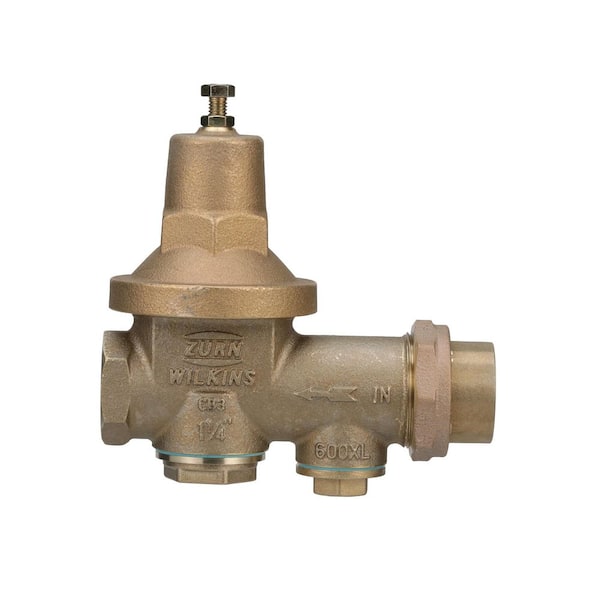

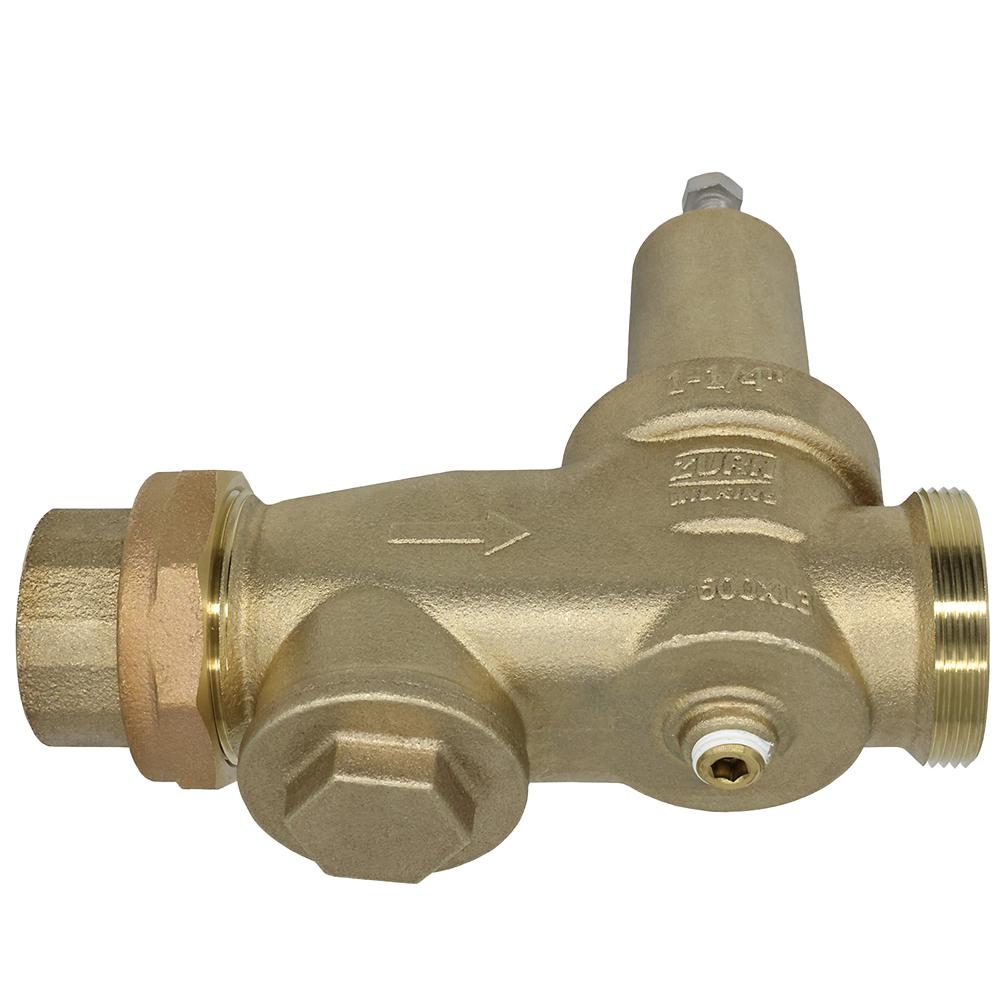

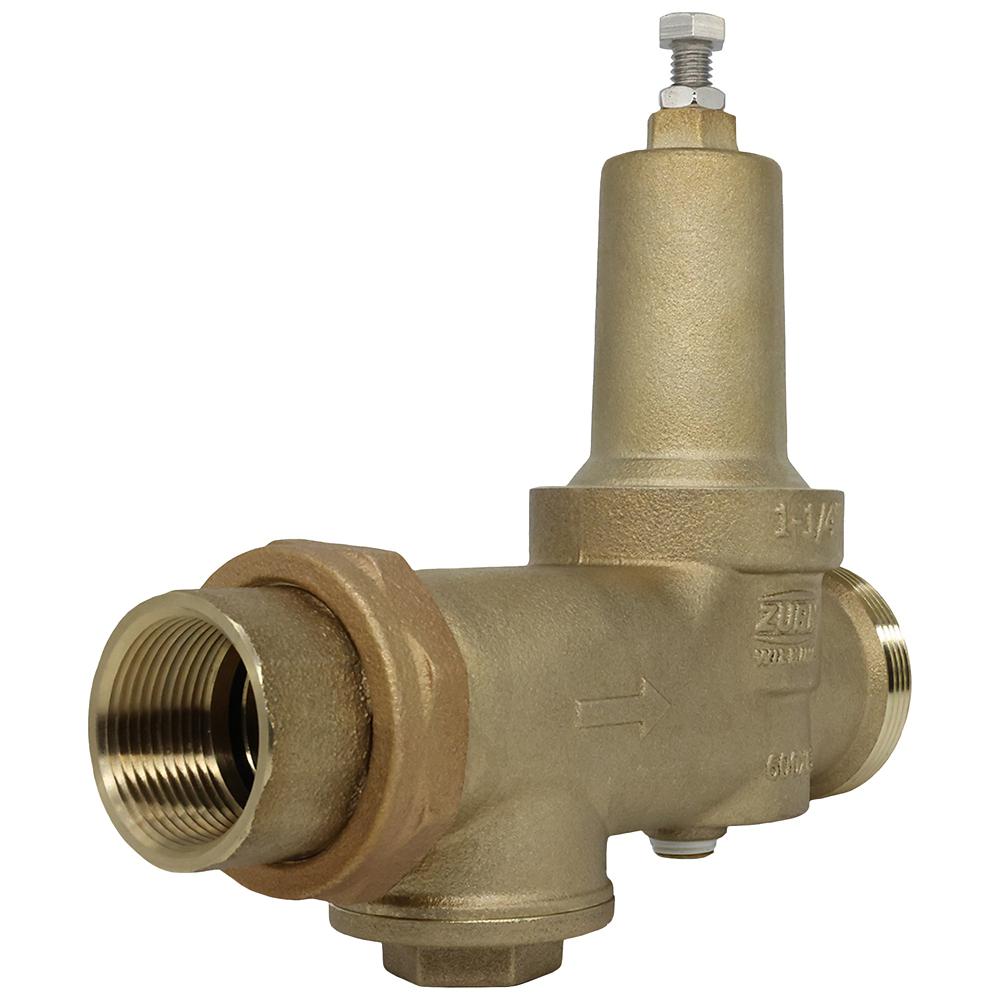

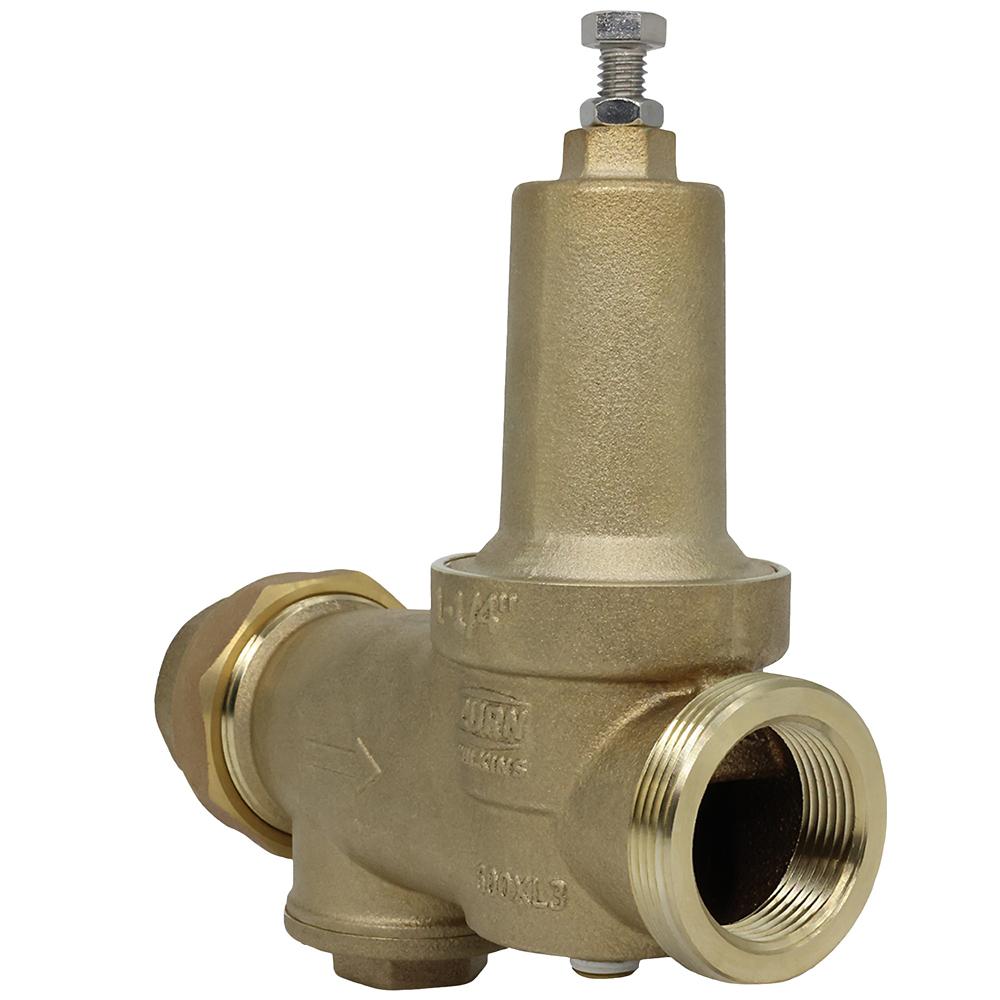

Wilkins 600XL3-114 Water Pressure Reducing Valve with Integral Strainer (1 1/4 Inches)

Product Description

The Wilkins 600XL3-114 is a water pressure reducing valve with integral strainer designed for residential and commercial potable water systems. It offers superior flow performance and easy maintenance with its balanced piston design. Ideal for high-flow capacity with lead-free compliance and durable construction.

• Best-in-Class Flow Performance: Patented integral venturi enables superior flow performance, making sizing easier and providing ideal water pressure at higher flow rates.
• Enhanced Durability: Premium 300 series stainless steel internals as standard provide enhanced corrosion resistance and lasting durability in demanding applications.
• Easy Maintenance: Removable cartridge design and cost-effective repair kits significantly reduce maintenance time and costs without removing the body from the line.

Product Highlights

Designed with inlet pressure changes to protect system. Made with fiber union gasket to ensure quick installation.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XL3-114

Technical Specifications

• Size: 1 1/4 Inches (32mm)
• Valve Type: Water Pressure Reducing Valve with Integral Strainer
• Connection Type: Single Union FNPT Inlet x FNPT Outlet
• Thread Standard: ANSI B1.20.1
• Maximum Working Water Pressure: 400 psi
• Maximum Working Water Temperature: 140 0F (60 0C)
• Reduced Pressure Range: 15 psi to 75 psi
• Factory Preset Pressure: 50 psi
• Design: Balanced piston design with removable cartridge
• Body Material: Low Lead Cast Bronze ASTM B806
• Strainer Screen Material: 300 Series Stainless Steel
• Elastomers: Buna Nitrile and EPDM (FDA approved)
• Certifications: ASSE Listed 1003, cUPC Listed, CSA Certified B356, NSF/ANSI/CAN 61 & 372
• Inlet Diameter (In.): 1-1/4
