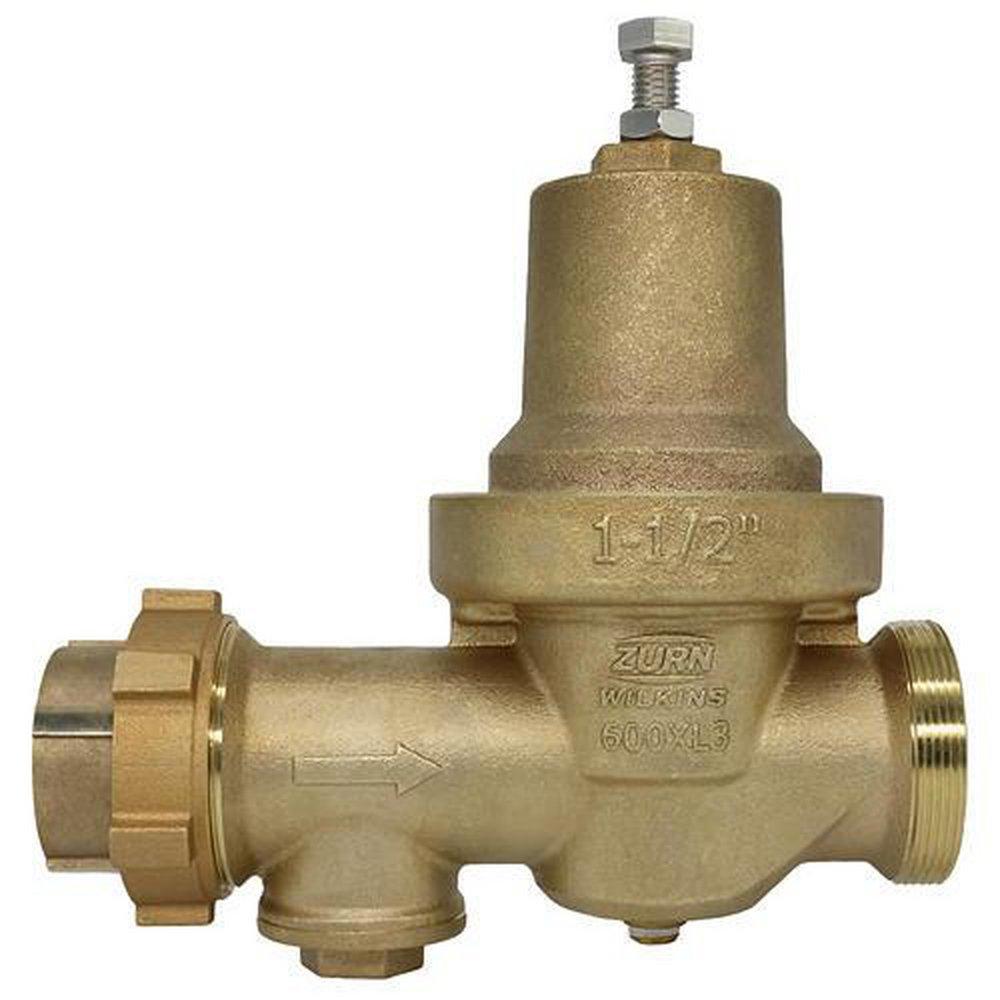

Wilkins 600XL3-112 1 1/2 600xl3 Water Pressure Reducing Valve With Integral Strainer

Product Description

The WILKINS 600XL3-112 is for use with potable water pipes with a 1 1/2 in. inner diameter. It reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience. Ideal for high-end residential and light commercial use. The valve is designed for residential and light commercial water lines, providing high-flow rate capacity and low-pressure falloff.

• For use with potable water pipes with a 1 1/2 in. inner diameter
• Single union copper sweat inlet x FNPT outlet
• Threaded for double union connections

Product Highlights

The 600XL3 Pressure Reducing Valve with integral strainer is designed for residential and light commercial water lines.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XL3-112
• Country of Origin: United States

Technical Specifications

• ASSE Standards: ASSE 1003
• CSA Certified: CSA
• End Connection 1: Sweat
• End Connection 2: FNPT
• End Connections: Sweat x FNPT
• Fitting Size 1: 1-1/2
• Fitting Size 2: 1-1/2
• Height: 9-5/8
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 8-3/4
• Material: Brass, Bronze, Rubber, Stainless Steel, Noryl
• Maximum Temperature: 140
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Type: W600XL3CJ
• UPC: 889934272574
• Valve Body Material: Low Lead Cast Bronze
• Valve Body Style: Inline
• Valve Disc Material: EPDM
• Valve Seat Material: Noryl
• Weight: 9.8
• Width: 4-9/16
• HPS Quick Code: 123179
• MPN: WK600XL3-112
• ALTCODES: WK600XL3-112
• Brand: Wilkins
• Manufacturers: VisionAid
• MFR #: 112-600XL3
• Zoro #: G315079187
• UPC #: -
• Country of Origin: United States
• Pipe Size: 1 1/2 in
• Outlet Connection Size: 1 1/2 in
• Overall Width: 4-9/16 in
• Inlet Connection Size: 1 1/2 in
• Overall Height: 9-5/8 in
• Item: Pressure Reducing Valve
• Body Material: Brass
• Application: Light Commercial Use, Residential Use
• Standards: CSA(R) Certified, cUPC(R) Listed, is ASSE(R) Listed, NSF/ANSI/CAN 61 and 372
• Factory Set Pressure: 50 psi
• Pilot Adjustment - Minimum: 15 psi
• NSF Certifications for Food and Drinking Water: NSF 372, NSF 61
• Fluid Temperature - Maximum: 140 Degrees F
• Outlet Connection Gender: Female
• Operating Pressure - Maximum: 400 psi
• Port Design: Full Port
• Operating Pressure - Minimum: 15 psi
• Stem Material: Stainless Steel
• Inlet Connection Gender: Female
• For Media: Water
• Flow Rate - Continuous Maximum: 95 gpm
• Includes Strainer: Strainer Included
• Pilot Adjustment - Maximum: 75 psi
• Flow Rate - Intermittent Maximum: 127 gpm
• Outlet Connection Type: NPT
• Inlet Connection Type: NPT
• Valve Type: Pressure Reducing
• Pressure Adjustment Range: 15 psi to 75 psi
• Operating Pressure Range: 15 psi to 400 psi
• Max. Operating Temperature: 140 °F
• Max. Continuous Flow Rate: 95 gpm
• Max. Intermittent Flow Rate: 127 gpm
• Low-Lead Compliance: Low-Lead Compliant
