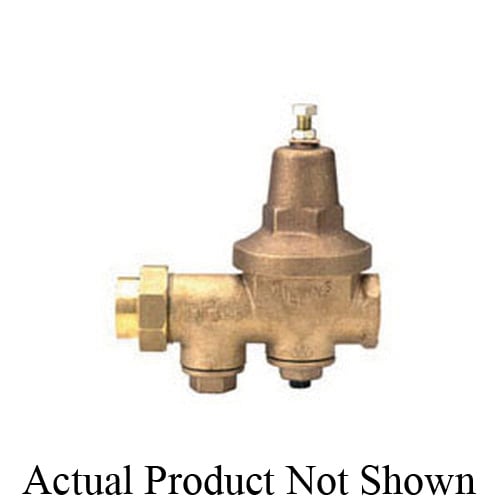

Wilkins 600XL2 2 Inch Pressure Reducing Valve with Bypass Check Valve and Strainer Fnpt Union Cast Bronze

Product Description

The Wilkins 600XL2 is a 2-inch pressure reducing valve designed for commercial and residential plumbing systems that require precise downstream pressure control. This valve is part of the trusted 600XL series from Wilkins, a brand known for producing reliable water control products used by plumbers and mechanical contractors across the country. The 600XL2 features an integral bypass check valve and a built-in strainer, making it a multi-function assembly that reduces installation complexity and saves time on the job. The valve accepts FNPT Union x FNPT connections, allowing for easy removal and servicing without cutting into the line. This is a significant advantage in commercial installations where maintenance access matters. The cast bronze body provides excellent corrosion resistance and long service life in water distribution applications. Internal components include a 300 stainless steel seat trim, Buna Nitrile and EPDM elastomers, natural vulcanized fiber, and an Acetal cap gasket, all of which contribute to durable, leak-free performance under demanding conditions. The valve is rated for up to 300 psi inlet pressure and a maximum temperature of 140 degrees Fahrenheit, making it suitable for a wide range of cold and warm water supply systems. The inlet to outlet length measures 10.25 inches and the overall height is 12 inches, giving installers the dimensions needed for accurate rough-in planning. This valve is lead free, meeting the requirements of current potable water regulations. It is domestically sourced and compliant with applicable plumbing codes. Plumbers, pipefitters, and mechanical contractors working on water service entry points, booster systems, or building pressure management will find the 600XL2 a dependable, code-compliant choice for 2-inch applications.

• Integral bypass check valve and strainer reduce the need for separate fittings and simplify the installation
• Cast bronze body with 300 stainless steel seat trim delivers long-term corrosion resistance in potable water systems
• Lead free construction meets current drinking water compliance standards for commercial and residential use

Product Highlights

The Wilkins 600XL2 combines pressure reduction, bypass check protection, and straining into a single 2-inch bronze valve assembly. Its FNPT union connections, high-pressure rating, and lead free design make it a practical choice for trade professionals managing water pressure in commercial plumbing systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XL2

Technical Specifications

• Series: 600XL
• Nominal Size: 2 inches
• Connection Type: FNPT Union x FNPT
• Maximum Inlet Pressure: 300 psi
• Maximum Temperature: 140 degrees Fahrenheit
• Media: Water
• Inlet to Outlet Length: 10.25 inches
• Overall Height: 12 inches
• Body Material: Cast Bronze
• Seat Trim Material: 300 Stainless Steel
• Elastomer Materials: Buna Nitrile and EPDM
• Cap Gasket Material: Acetal
• Lead Free: Yes
• Origin: Domestic
