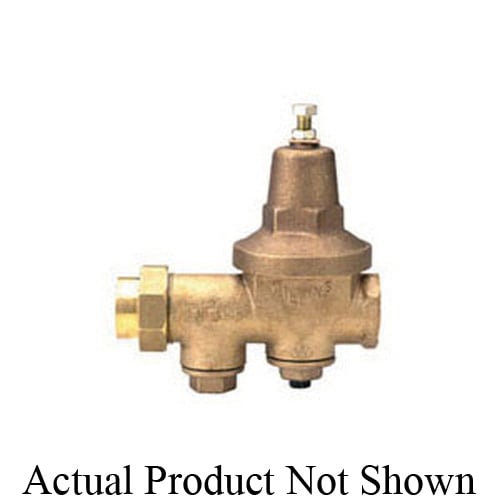

Wilkins 600XL12 Pressure Reducing Valve with Integral By-pass Check Valve and Strainer 1/2 Inch Fnpt Union X Fnpt

Product Description

The Wilkins 600XL12 is a lead-free pressure reducing valve designed for residential and light commercial plumbing systems. It features an integral by-pass check valve and a built-in strainer, making it a compact, all-in-one solution for controlling water pressure at the point of entry or service. Plumbers and water system technicians rely on pressure reducing valves like this one to protect downstream fixtures, appliances, and piping from damaging high-pressure surges. Without proper pressure regulation, household and commercial water systems can experience premature wear on faucets, water heaters, washing machines, and other connected equipment. The 600XL12 addresses this by reducing incoming supply pressure to a safe, stable working level. This valve is rated for up to 300 psi inlet pressure and handles water temperatures up to 140 degrees Fahrenheit, making it well suited for standard potable water applications. The 1/2 inch nominal size and FNPT Union x FNPT end connections make installation and future service straightforward, as the union ends allow the valve body to be removed without cutting pipe. The cast bronze body provides strong corrosion resistance in water service environments, while the 300 stainless steel seat trim adds durability at the seating surface where wear is most common. Soft goods include Buna Nitrile and EPDM elastomers along with natural vulcanized fiber and an Acetal cap gasket, all selected for compatibility with potable water systems. The valve measures 6.25 inches in height with an inlet-to-outlet length of 5.5 inches. Domestically produced, the 600XL12 meets lead-free compliance standards for use in potable water systems. This valve is part of the Wilkins 600XL series, a trusted line among licensed plumbers, water system contractors, and mechanical contractors.

• Integral by-pass check valve and strainer built into a single valve body for simplified installation
• Lead-free cast bronze construction rated for potable water service up to 300 psi and 140 degrees Fahrenheit
• FNPT Union x FNPT end connections allow easy removal and reinstallation without cutting into the pipe

Product Highlights

The Wilkins 600XL12 combines pressure reduction, check valve protection, and straining into one lead-free cast bronze valve, offering plumbers a reliable and code-compliant solution for 1/2 inch water service lines.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XL12

Technical Specifications

• Series: 600XL
• Nominal Size: 1/2 inches
• End Style: FNPT Union x FNPT
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Seat
• Softgoods Material: Buna Nitrile and EPDM Elastomers, Natural Vulcanized Fiber, Acetal Cap Gasket
• Pressure Range: 300 psi
• Temperature Rating: 140 degrees F
• Media: Water
• Inlet to Outlet Length: 5.5 inches
• Height: 6.25 inches
• Domestic/Import: Domestic
