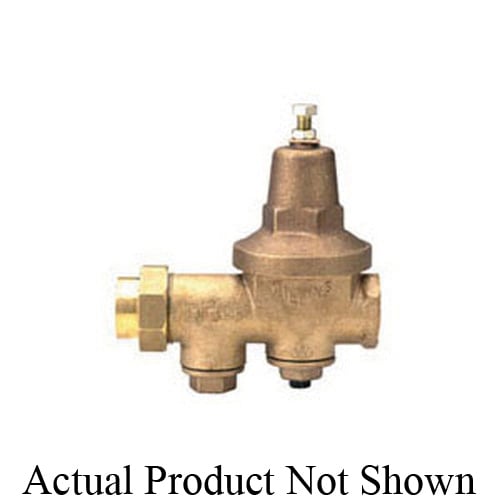

Wilkins 600XL112 Pressure Reducing Valve with Integral By-pass Check Valve and Strainer 1-1/2 in Fnpt Union X Fnpt Cast Bronze

Product Description

The Wilkins 600XL112 is a lead-free pressure reducing valve designed for commercial and residential plumbing systems that require precise downstream pressure control. This valve belongs to the 600XL Series and features a 1-1/2 inch nominal size with FNPT Union x FNPT end connections, making it straightforward to install and remove for service without cutting pipe. The cast bronze body provides long-term durability in potable water applications, and the domestically manufactured construction meets quality expectations for licensed plumbers and mechanical contractors working on water distribution systems.

This PRV includes an integral by-pass check valve and a built-in strainer, combining multiple functions into a single compact assembly. The integral check valve protects against backflow while the strainer helps keep debris from reaching downstream fixtures and equipment. These combined features reduce the number of individual components needed in the system, saving installation time and potential leak points.

The valve is rated for pressures up to 300 psi and handles water temperatures up to 140 degrees Fahrenheit, making it suitable for a wide range of domestic hot and cold water supply applications. The 300 stainless steel seat trim resists corrosion and wear under continuous flow conditions. Internal soft goods include Buna Nitrile and EPDM elastomers, natural vulcanized fiber, and an Acetal cap gasket, all selected for compatibility with potable water media. Overall dimensions measure 10 inches in height with an inlet to outlet length of 9-1/8 inches, providing a compact footprint for mechanical rooms and utility spaces where clearance is limited. Plumbing professionals will find this valve reliable for pressure zone control, water service entry points, and tenant submetering applications.

• Integral by-pass check valve and strainer built into a single valve body for simplified installation
• Cast bronze body with 300 stainless steel seat trim for corrosion resistance in potable water systems
• Rated to 300 psi and 140 degrees Fahrenheit with lead-free, domestically manufactured construction

Product Highlights

The Wilkins 600XL112 pressure reducing valve delivers reliable downstream pressure management with an integrated check valve and strainer in a durable lead-free cast bronze body. It is well suited for commercial plumbing installations requiring a compact, multi-function pressure control solution.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 600XL112

Technical Specifications

• Series: 600XL
• Nominal Size: 1-1/2 inches
• End Style: FNPT Union x FNPT
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Seat
• Softgoods Material: Buna Nitrile and EPDM Elastomers, Natural Vulcanized Fiber, Acetal Cap Gasket
• Pressure Range: 300 psi
• Temperature Rating: 140 degrees F
• Media: Water
• Inlet to Outlet Length: 9-1/8 inches
• Height: 10 inches
• Domestic/Import: Domestic
