Product Description

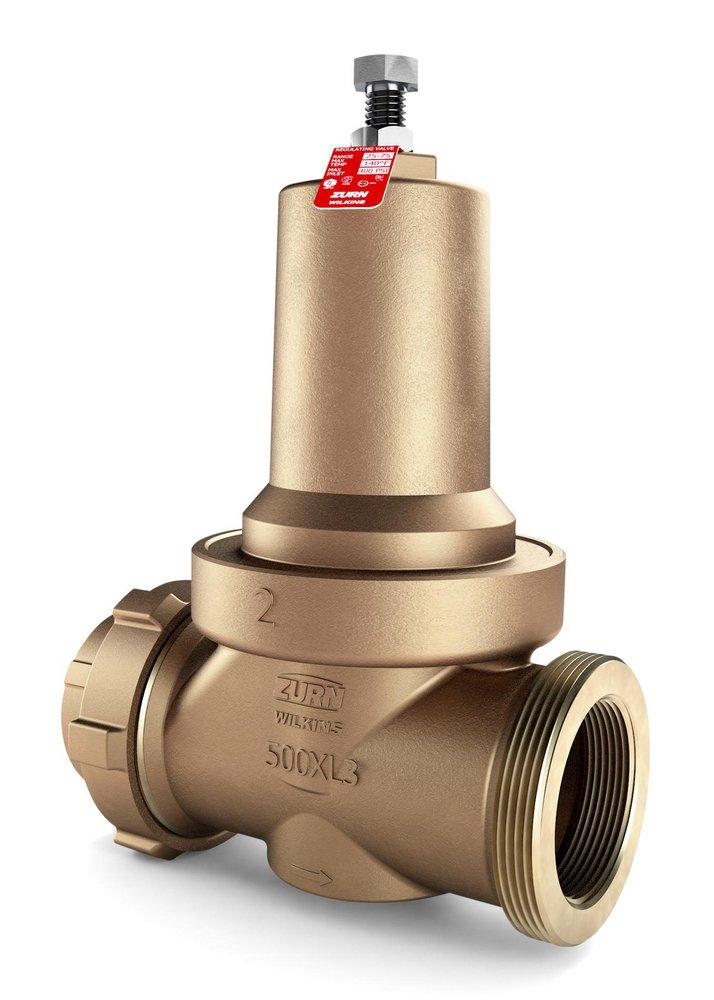

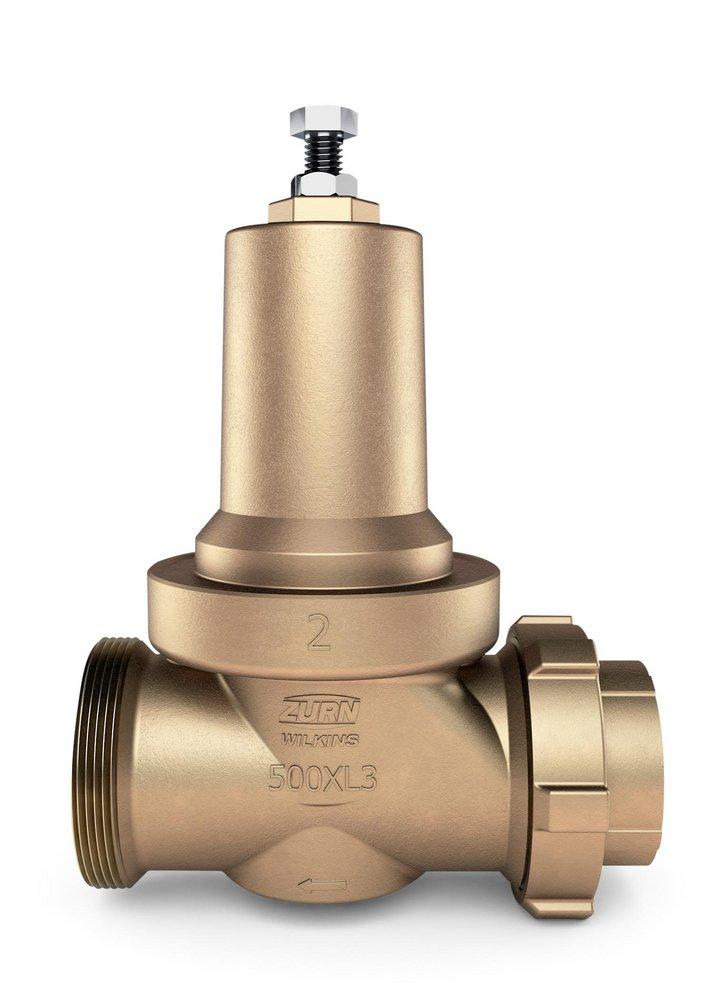

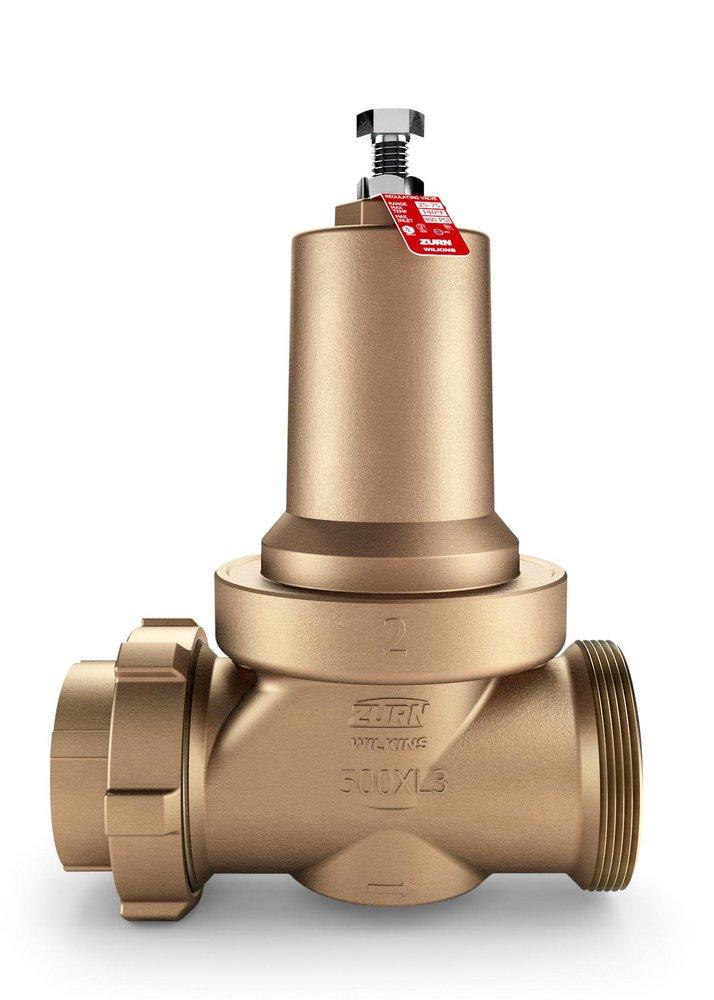

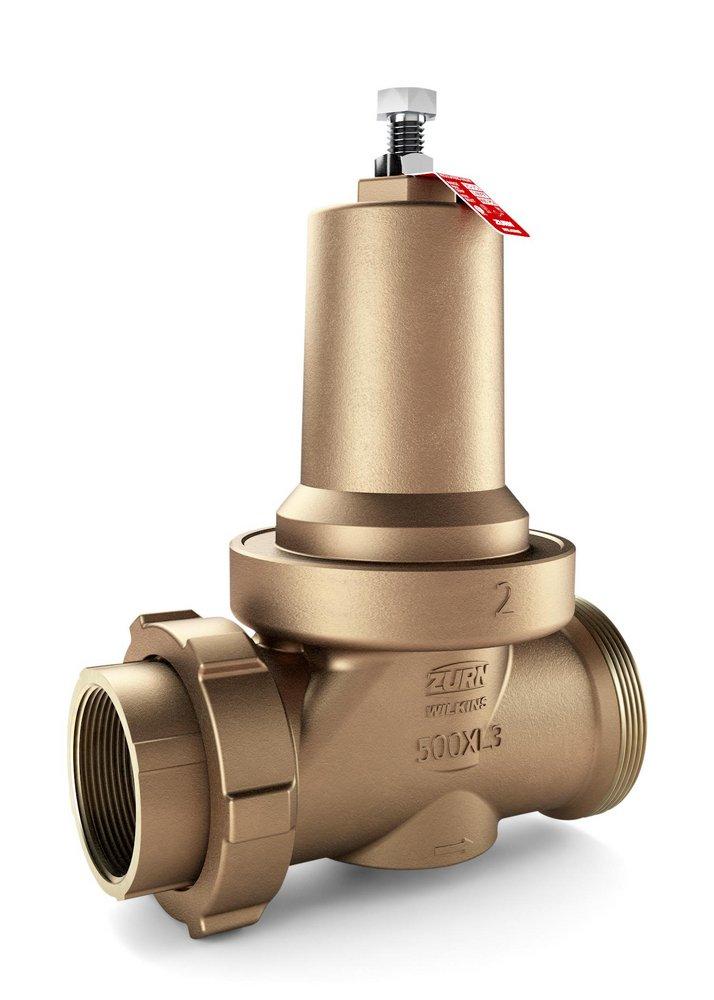

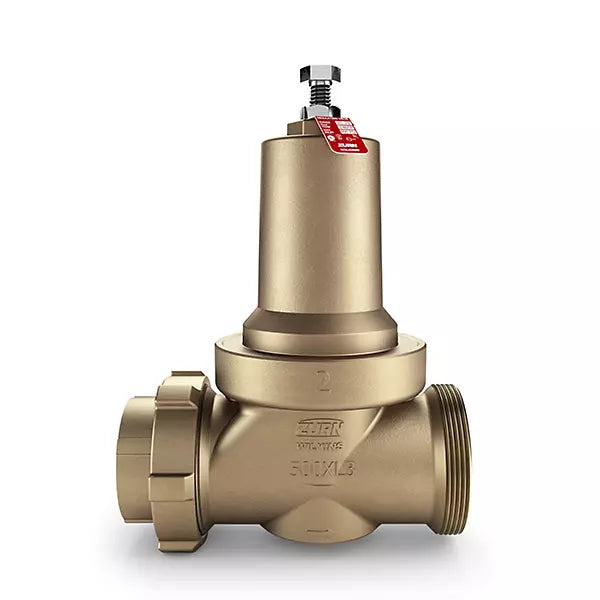

The WILKINS 500XL3 Pressure Reducing Valve works effectively for industrial water lines and commercial-grade solutions, with high-flow rate capacity and low falloff. The all-bronze body, stainless-steel stem and cartridge internals provide superior corrosion resistance and increases product life. It delivers high-flow performance with low pressure drop.
- Industry leading flow performance, durability, and premium materials of all direct-acting pressure reducing valves on the market
- Delivers best-in-class flow performance of all direct-acting pressure reducing valves allowing for value engineered design optimization
- Compact and shortest pressure reducing valve on the market allowing for installation versatility
Product Highlights
This valve is ideal for demanding water distribution environments. It is lead-free and meets the requirements of NSF/ANSI/CAN 61 & 372.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: 500XL3
Technical Specifications
-
ASSE Standards: ASSE 1003
-
CSA Certified: Yes
-
Collection: Model 500XL3
-
End Connection 1: FPT
-
End Connection 2: FPT
-
End Connections: FPT
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Material: Cast Bronze
-
NSF Certified: Yes
-
Valve Body Material: Cast Bronze
-
Valve Body Style: Inline
-
Valve Seat Material: Noryl
-
Valve Size: 1-1/2 in
-
Valve Type: Pressure Reducing Valve
-
Maximum Working Pressure: 400 PSI
-
Maximum Temperature: 140
(60
C)
-
Pressure Range: 15
201375 PSI
-
Factory Preset: 50 PSI
-
Connections: Single union FNPT inlet x FNPT outlet
-
Body Material: Lead-free bronze
