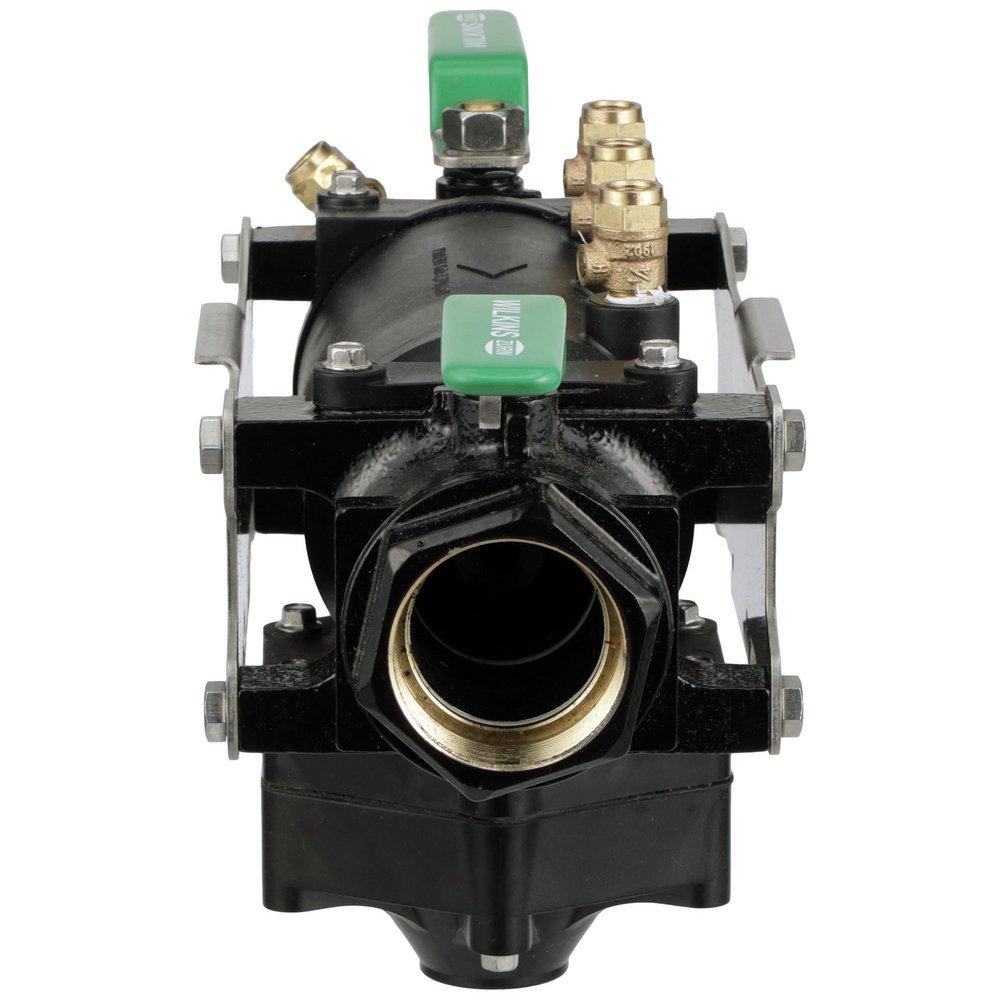

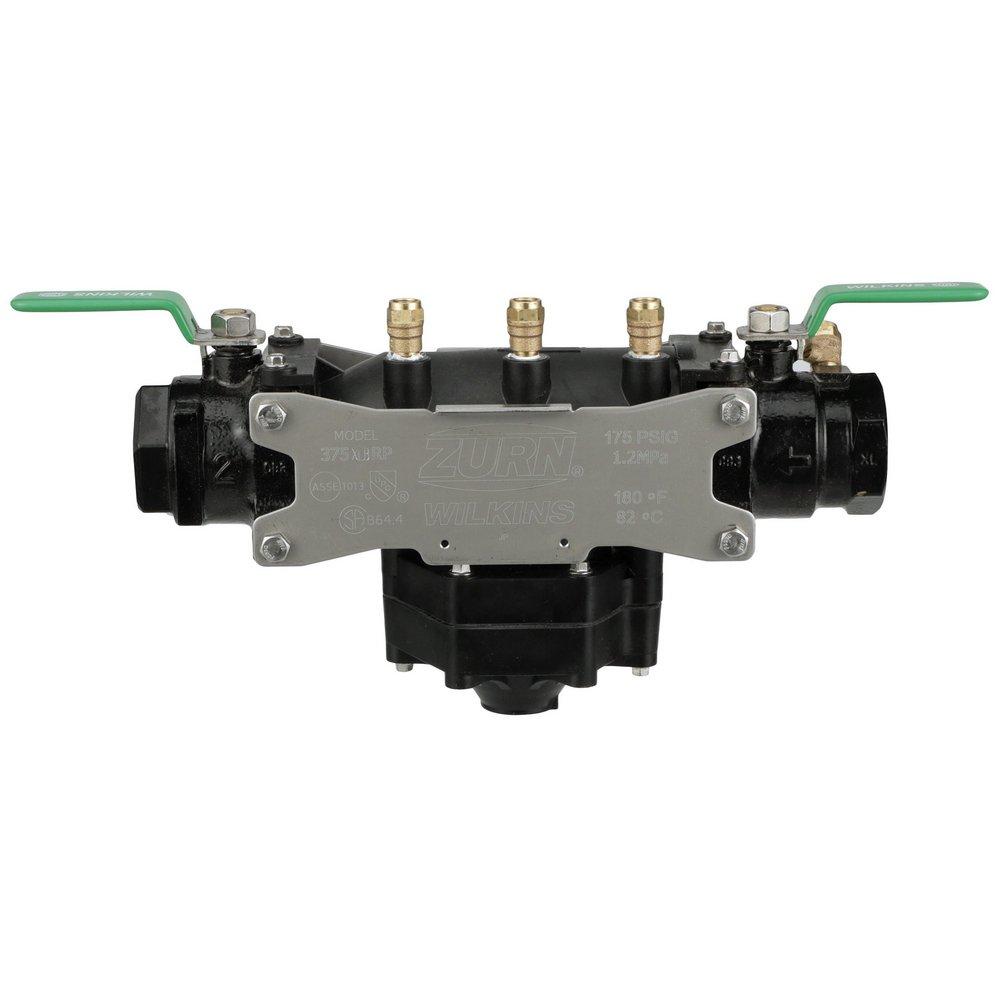

Wilkins 375XLB-2 Reinforced Nylon FPT Reduced Pressure Zone Assembly 2 in

Product Description

The WILKINS 375XLB-2 is a 2 in reinforced nylon FPT reduced pressure zone assembly. AWWA compliant C511 and NSF Listed-Standard 61, Annex G. The EZSwap Pressure Vessel is removable for easy access. It features a flush tool for easy line flushing, saving up to 15 minutes per installation. Durable UV resistant reinforced nylon EZSwap Pressure Vessel resists corrosion and mineral build-up.

• AWWA compliant C511
• NSF Listed-Standard 61, Annex G
• EZSwap Pressure Vessel is removable for easy access and added convenience

Product Highlights

The WILKINS 375XLB-2 features durable UV resistant reinforced nylon construction and a removable pressure vessel.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 375XLB-2

Technical Specifications

• ANSI: ANSI B1.20.1, ANSI B16.1
• ASSE Standards: ASSE 1013
• AWWA: AWWA C-511
• CSA Certified: CSA
• Coating: Epoxy
• Collection: 375XLB
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: No
• Height: 7-3/5
• IAPMO Listed: Yes
• Installation Type: Horizontal
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 19-1/2
• Material: Plastic, Stainless Steel, Cast Bronze
• Material Type: Reinforced Nylon
• Maximum Temperature: 180
• Minimum Temperature: 33
• NSF Certified: Yes
• Number of Handles: Two Handle
• Pressure - Maximum: 175 psi
• Recommended Valve Application: Plumbing, Water
• UL Listed: Yes
• Valve Body Material: Reinforced Nylon
• Valve Body Style: Grooved
• Valve Material: Stainless Steel
• Valve Port Opening: Full Port
• Valve Seat Material: Delrin
• Valve Size: 2 in
• Valve Type: Reduced Pressure Zone Assembly
• Width: 13
