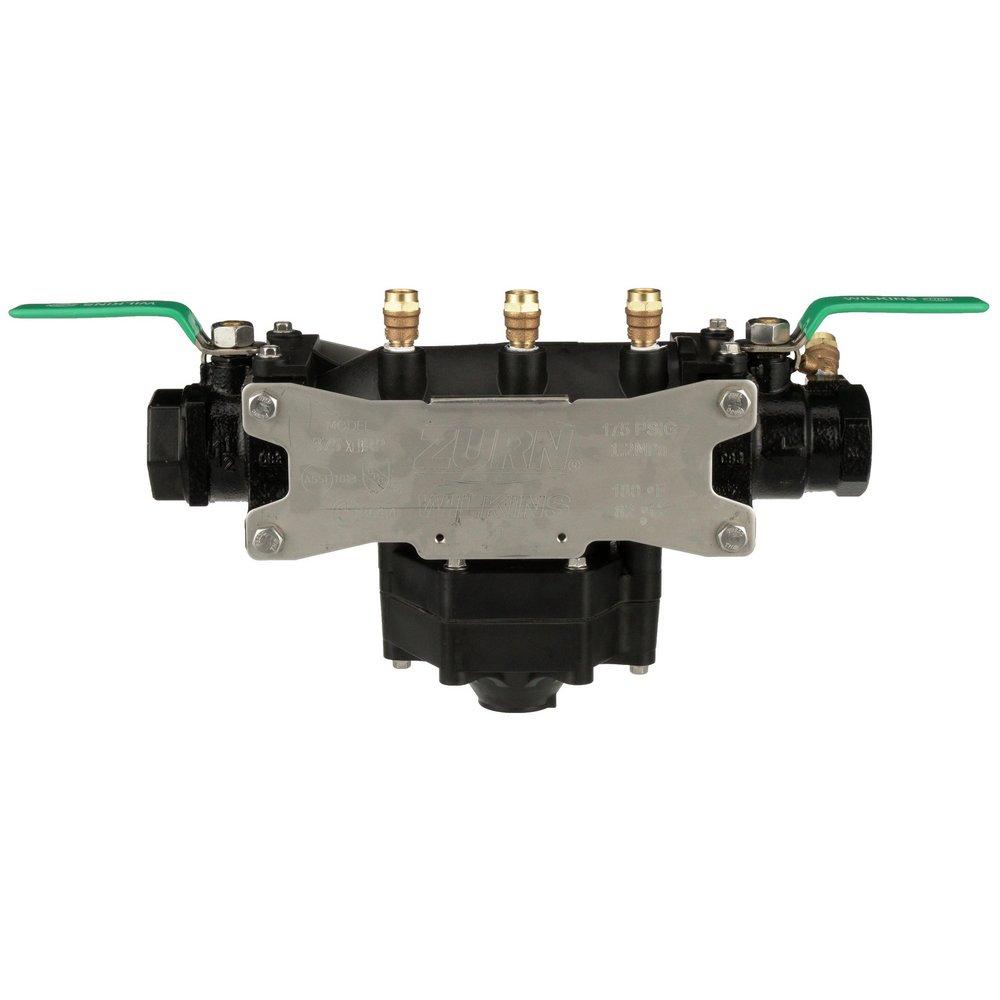

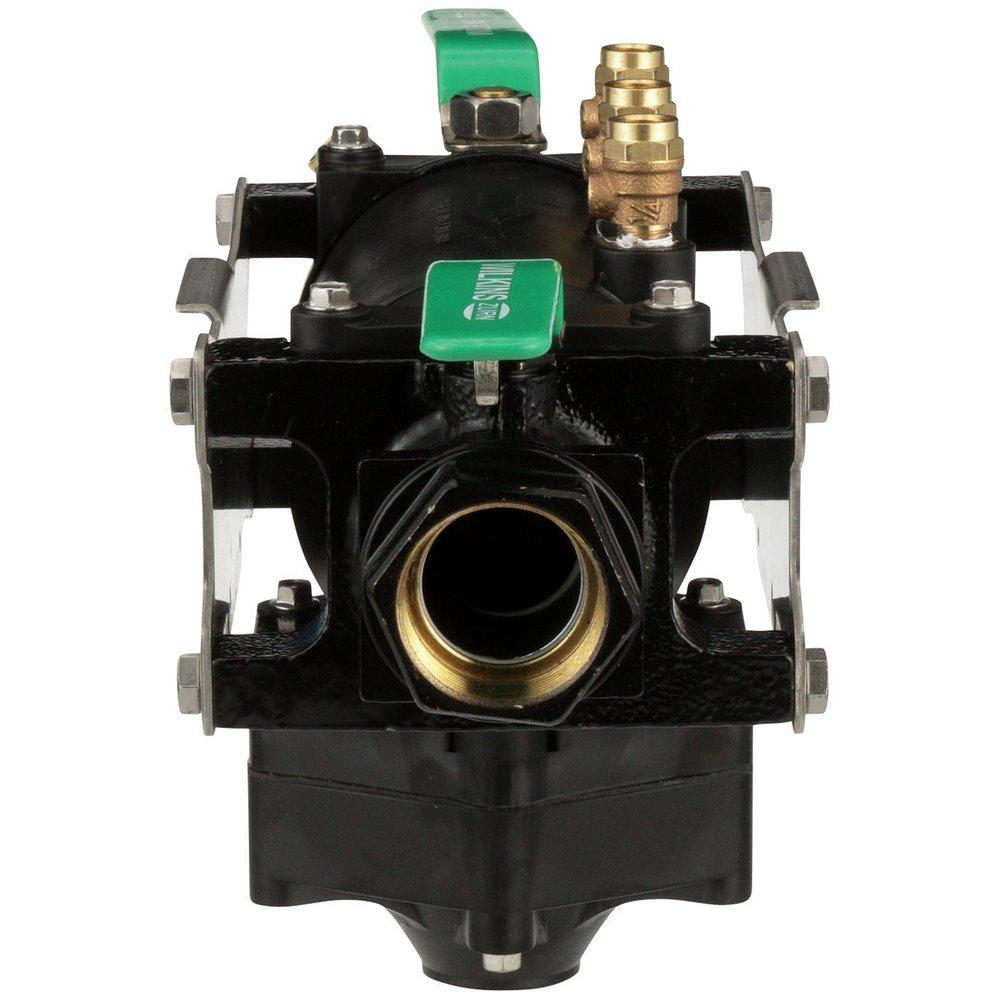

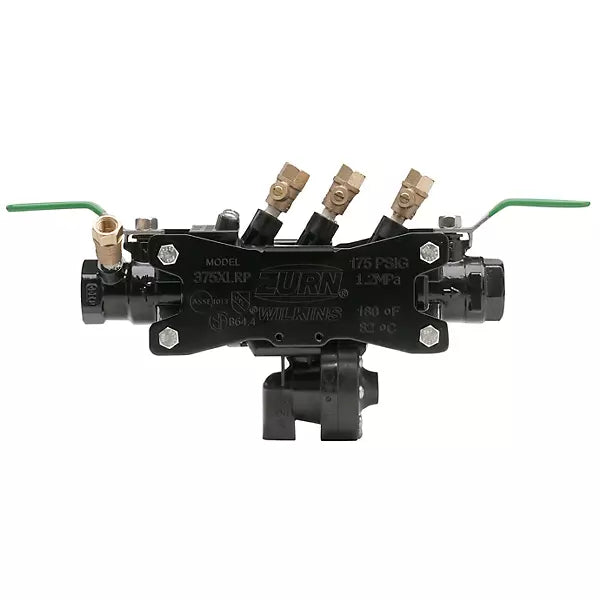

Wilkins 375XLB (1/2 inches - 2 inches) Reduced Pressure Principle Backflow Preventer

Product Description

The Wilkins 375XLB Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. The EZSwap Pressure Vessel is removed and replaced with the Flush Fitting Tool for faster flushing and testing. Ideal for use where Lead-Free valves are required. Designed for installation on potable water lines to protect against both backsiphonage and backpressure.

• EZSwap Pressure Vessel is removable for easy access and added convenience
• Flush Tool (FLUSH) provides easy line flushing, saving up to 15 minutes per installation
• Durable UV resistant reinforced nylon EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions

Product Highlights

The Wilkins 375XLB backflow preventer offers reliable protection for potable water systems. Its EZSwap pressure vessel and flush tool enhance ease of maintenance and installation. Suitable for various plumbing and water applications.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 375XLB-1

Technical Specifications

• Model: 375XLB
• Manufacturer: Wilkins
• ANSI: ANSI B1.20.1
• ASSE Standards: ASSE 1013
• AWWA: AWWA C-511
• CSA Certified: CSA
• Coating: Epoxy
• Collection: 375XLB
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• FM Approved: No
• IAPMO Listed: Yes
• Installation Type: Horizontal
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 6
• Material: Plastic, Stainless Steel, Cast Bronze
• Material Type: Reinforced Nylon
• Maximum Temperature: 180
• Mesh Size: 20
• Minimum Temperature: 33
• NSF Certified: Yes
• Number of Handles: Two Handle
• Pressure - Maximum: 175 psi
• Recommended Valve Application: Plumbing, Water
• UL Listed: Yes
• Valve Body Material: Reinforced Nylon
• Valve Body Style: Grooved
• Valve Material: Stainless Steel
• Valve Port Opening: Full Port
• Valve Seat Material: Delrin
• Valve Size: 1 in
• Valve Type: Reduced Pressure Principle Assembly
• Width: 4-1/10
• Series: 375XLB Series
• Connection Type: Fnpt
• Pressure Rating: 175 PSI
• Connection Size: 1 in.
• Body Material: Stainless Steel
• Item: Pressure Assembly
• Type: Backflow
• Includes: Ball Valve
• Regulated: No
• Brand Name: Wilkins
