Wilkins 375XLB 1 1/2 inches 375XLB Series Lead Free Theft Deterrent RP

Product Description

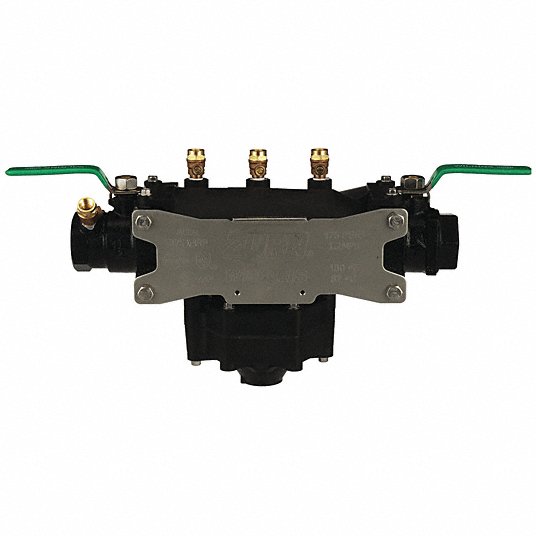

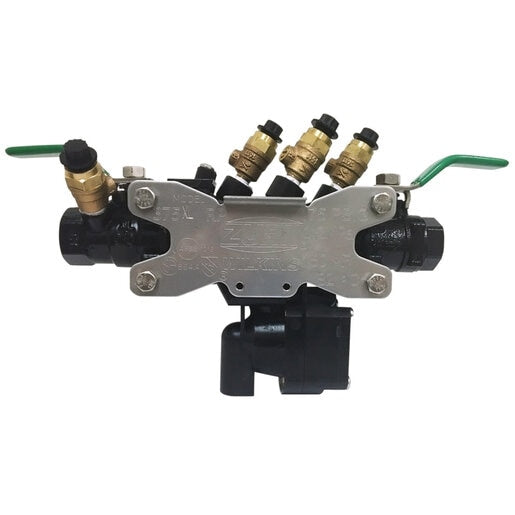

The WILKINS 375XLB is a 1 1/2" 375XLB Series lead-free theft-deterrent reduced pressure zone assembly. Designed for installation on potable water lines, it protects against backsiphonage and backpressure of contaminated water. A durable black UV stabilized fusion epoxy coating is applied to the exterior bronze surfaces. Ideal for use where Lead-Free valves are required.

• Lead Free
• Theft Deterrent
• Reduced Pressure Zone Assembly
• Durable black UV stabilized fusion epoxy coating

Product Highlights

Protects against backflow and is ideal for potable water lines. Features a black epoxy coating for theft prevention and complies with low-lead laws.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 375XLB-112
• Country of Origin: USA

Technical Specifications

• Model: 375XLB
• Manufacturer: Wilkins
• Allow Overnight Shipping: No
• Series: 375XL Series
• Connection Type: FNPT
• Pressure Rating: 175 PSI
• Connection Size: 1-1/2 in.
• Body Material: Bronze
• Item: Assembly
• Type: Reduced Pressure
• Includes: Ball Valve
• Lead Free: Yes
• Regulated: No
• Brand Name: Wilkins
• Valve Series: 375
• For Media: Water
• Hazard Protection Level: High Health
• Hazard: Pipe Size 1-1/2 in
• Media Temp. Range: 33 °F – 180 °F
• Max. Pressure (CWP): 175 psi
• Overall Height: 9.5 in
• Overall Length: 15.25 in
• Overall Width: 9 in
• Protection Type: Back-Pressure; Back-Siphonage
• Includes Strainer: No
• Strainer: Includes Freeze Protection No Freeze
• Sensor: Shut-Off Valve Type Ball Valve
• Standards: Annex G; Approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California; ASSE 1013; AWWA C511; C-UL Classified; CSA B64.4; IAPMO Listed; NSF Listed-Standard 61; NSF/ANSI 61; UL Listed
• Spring Material: Stainless Steel
• Connection Gender - Side 1: Female
• Connection Type - Side 1: NPTF
• Connection Size - Side 2: 1-1/2 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: NPTF
• Mounting Orientation: Horizontal
• Flow Rate: 120 gpm
• MFR: 112-375XLB
• Backflow Preventer Type: Reduced Pressure Assembly (RP)
• Freeze Protection: No
• UNSPSC: 40141622
