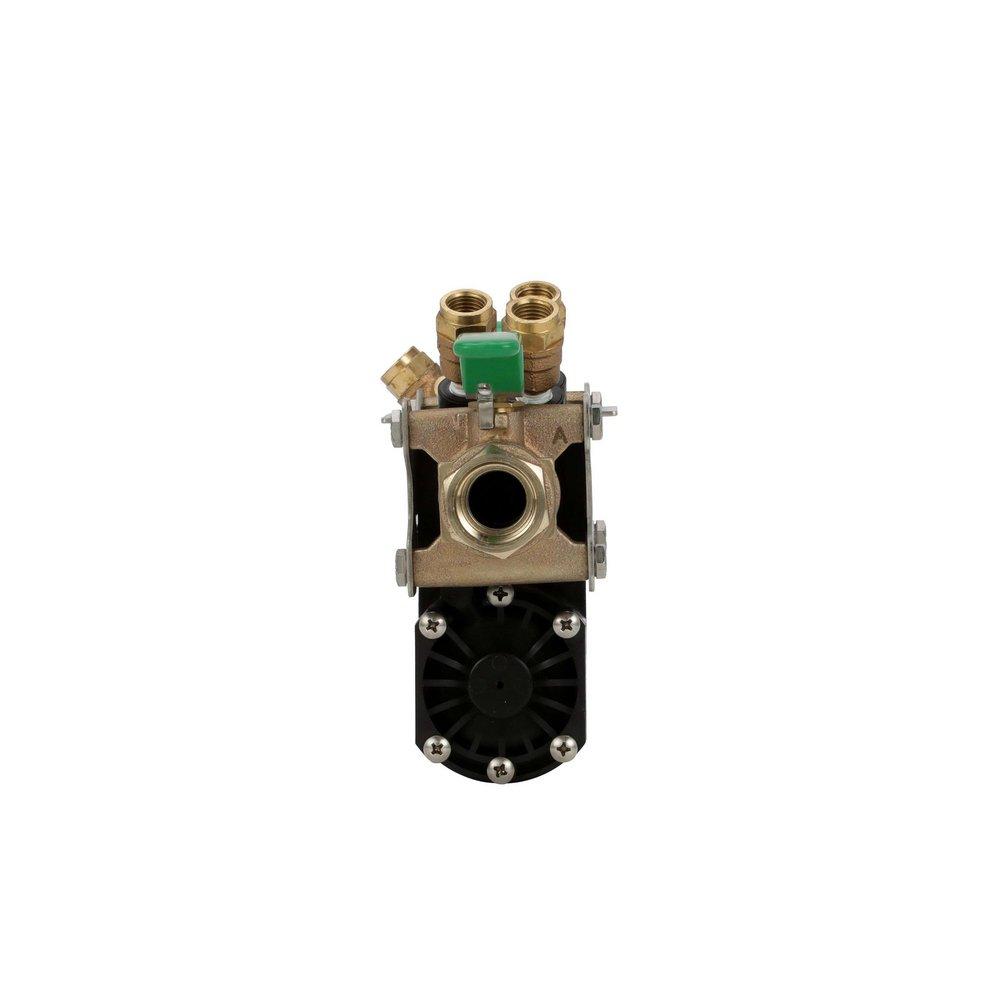

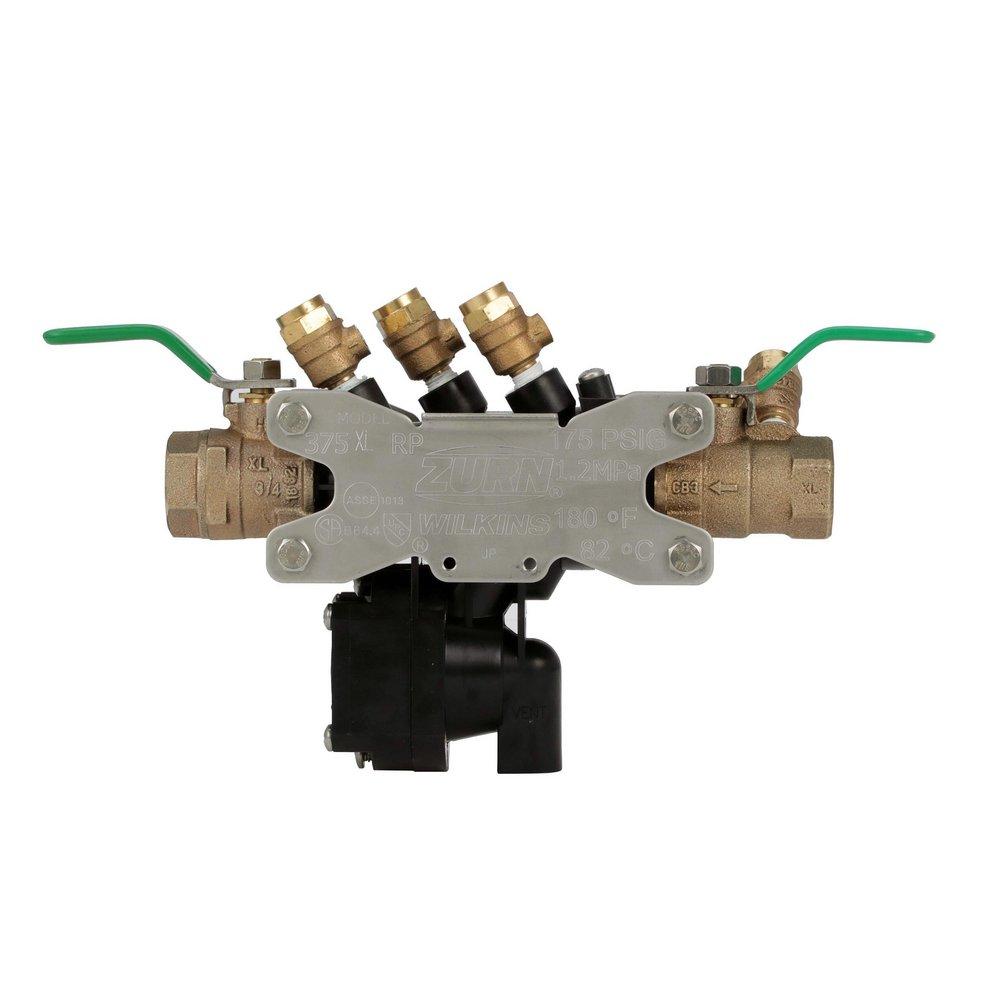

Wilkins 375XL-34 3/4 in Reinforced Nylon Flanged Reduced Pressure Principle Assembly

Product Description

The Wilkins 375XL-34 is a 3/4" reinforced nylon flanged reduced pressure principle assembly. It fits pipes with 3/4" inner diameter and has full port QT ball valves. The EZSwap pressure vessel is removable for easy access. It is ASSE listed 1013 and cUPC listed and CSA certified B64.4 and meets NSF/ANSI/CAN 61.

• Fits pipes with 3/4" inner diameter
• With full port QT ball valves
• EZSwap pressure vessel is removable for easy access and added convenience

Product Highlights

Durable, UV-resistant EZSwap Pressure Vessel resists corrosion and mineral build-up to better withstand harsh conditions.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 375XL-34

Technical Specifications

• ANSI: ANSI B1.20.1
• ASSE Standards: ASSE 1013
• AWWA: AWWA C-511
• CSA Certified: CSA
• Collection: 375XL
• End Connection 1: Flanged
• End Connection 2: Flanged
• End Connections: Flanged
• IAPMO Listed: Yes
• Installation Type: Horizontal, Vertical
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Plastic, Rubber, Stainless Steel
• Material Type: 300, Buna-N, Reinforced Nylon
• Maximum Temperature: 180
• Minimum Temperature: 33
• NSF Certified: Yes
• Number of Handles: Two Handle
• Pressure - Maximum: 175 psi
• Recommended Valve Application: Plumbing, Water
• UL Listed: Yes
• Valve Body Material: Reinforced Nylon
• Valve Body Style: Inline
• Valve Material: Stainless Steel
• Valve Operator: Lever Handle
• Valve Port Opening: Full Port
• Valve Seat Material: Delrin
• Valve Size: 3/4 in
• Valve Type: Reduced Pressure Principle Assembly
