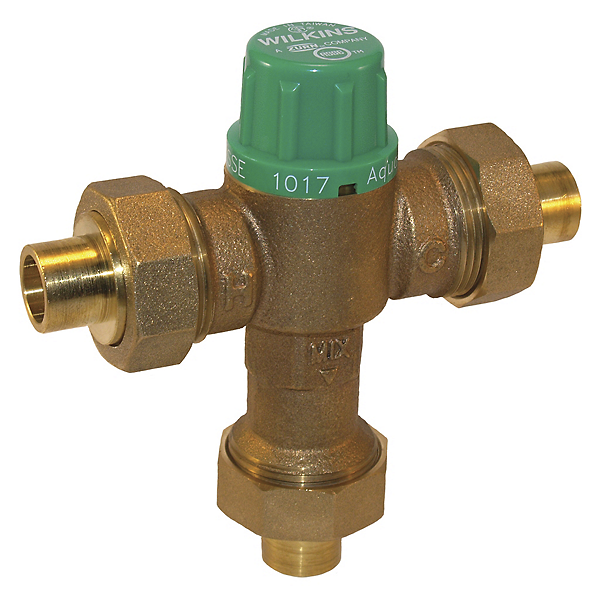

Wilkins 34-ZW1017XLC Aqua-Gard Thermostatic Mixing Valve 3/4 in.

Product Description

The Wilkins 34-ZW1017XLC Aqua-Gard thermostatic mixing valve is designed to deliver safe, accurately controlled tempered water for residential and light commercial use. It is installed at the potable water heat source to reduce hot water temperatures and prevent injuries. Includes check valves and inlet strainers. The valve mixes hot and cold water to reduce the temperature of the hot water in the distribution system.

• Maintains set temperature accuracy within ±4°F (2°C) from minimum to maximum flow rate.
• Constructed with low lead cast bronze body and stainless steel internal components.
• Handles flow rates up to 18 gpm at 45 psi pressure loss with minimum flow of 0.5 gpm.

Product Highlights

Designed for safe, controlled water delivery in residential and light commercial applications.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 34-ZW1017XLC
• Country of Origin: Taiwan, Province of China

Technical Specifications

• Inlet Diameter (In.): 3/4
• Size: 3/4 Inches
• Maximum Working Pressure: 145 psi
• Outlet Temperature Range: 95 °F to 131 °F
• Notable Certifications: ASSE 1017, cUPC, CSA B125.3
• Connection Type: Sweat x Sweat
• Body Material: Cast Bronze
• Internal Brass Material: Low Lead Brass, ASTM B 927, UNS C27450
• Hot Supply Temperature Range: 120–195°F max. (49–90.5°C)
• Cold Supply Temperature Range: 40–75°F (4.4–23.8°C)
• Set Temperature Accuracy: ±4°F (2°C)
• Approach Temperature: 20°F (11.1°C) minimum between hot supply and outlet setting
• Maximum Pressure Differential: 15 psi between Hot & Cold inlets
• Flow Rate at 45 psi Pressure Loss: 18 gpm
• Minimum Flow Rate: 0.5 gpm
• Item: Thermostatic Mixing Valve
• Outlet Type: Sweat
• For Use With: Hot Water Supply Systems
• Inlet Temperature (Hot): 120 Degrees to 195 Degrees F
• Valve Type: Thermostatic
• Compliance: ANSI 61-9, ASSE 1017, ASTM B 584, ASTM B 927, CSA, IAPMO, NSF, UNS C27450, XL Lead Free
• Inlet Temperature (Cold): 40 Degrees to 75 Degrees F
• Standards: ASSE 1017, CSA Certified, IAPMO, NSF/ANSI/CAN 61-9
• Max. Pressure: 145 psi
• Includes: Check Valves, Inlet Strainers
• Temp. Range: 95 Degrees to 131 Degrees F
• Inlet Connection Type - Cold: Sweat
• For Media: Hot Water, Water
• Seal Material: NBR
• Inlet Temperature - Minimum Cold: 40 Degrees F
• Inlet Temperature - Minimum Hot: 120 Degrees F
• Operating Temperature - Minimum Outlet: 95 Degrees F
• Operating Pressure - Maximum: 145 psi
• Inlet Temperature - Maximum Hot: 195 Degrees F
• Inlet Temperature - Maximum Cold: 75 Degrees F
• Includes Temperature Gauge: Temperature Gauge Not Included
• Operating Temperature - Maximum Outlet: 131 Degrees F
• Outlet Connection Type: Sweat
• Operating Pressure - Minimum: 145 psi
• Inlet Connection Type - Hot: Sweat
• Inlet Size: 3/4 in
• Overall Width: 5 7/16 in
• Overall Length: 5 7/16 in
• Overall Height: 5 1/2 in
• Outlet Size: 3/4 in
• Inlet Connection Size - Cold: 3/4 in
• Outlet Connection Size: 3/4 in
• Inlet Connection Size - Hot: 3/4 in
• Max. Operating Pressure: 145 psi
• Inlet (Cold) Temperature Range: 40 °F to 75 °F
• Inlet (Hot) Temperature Range: 120 °F to 195 °F
