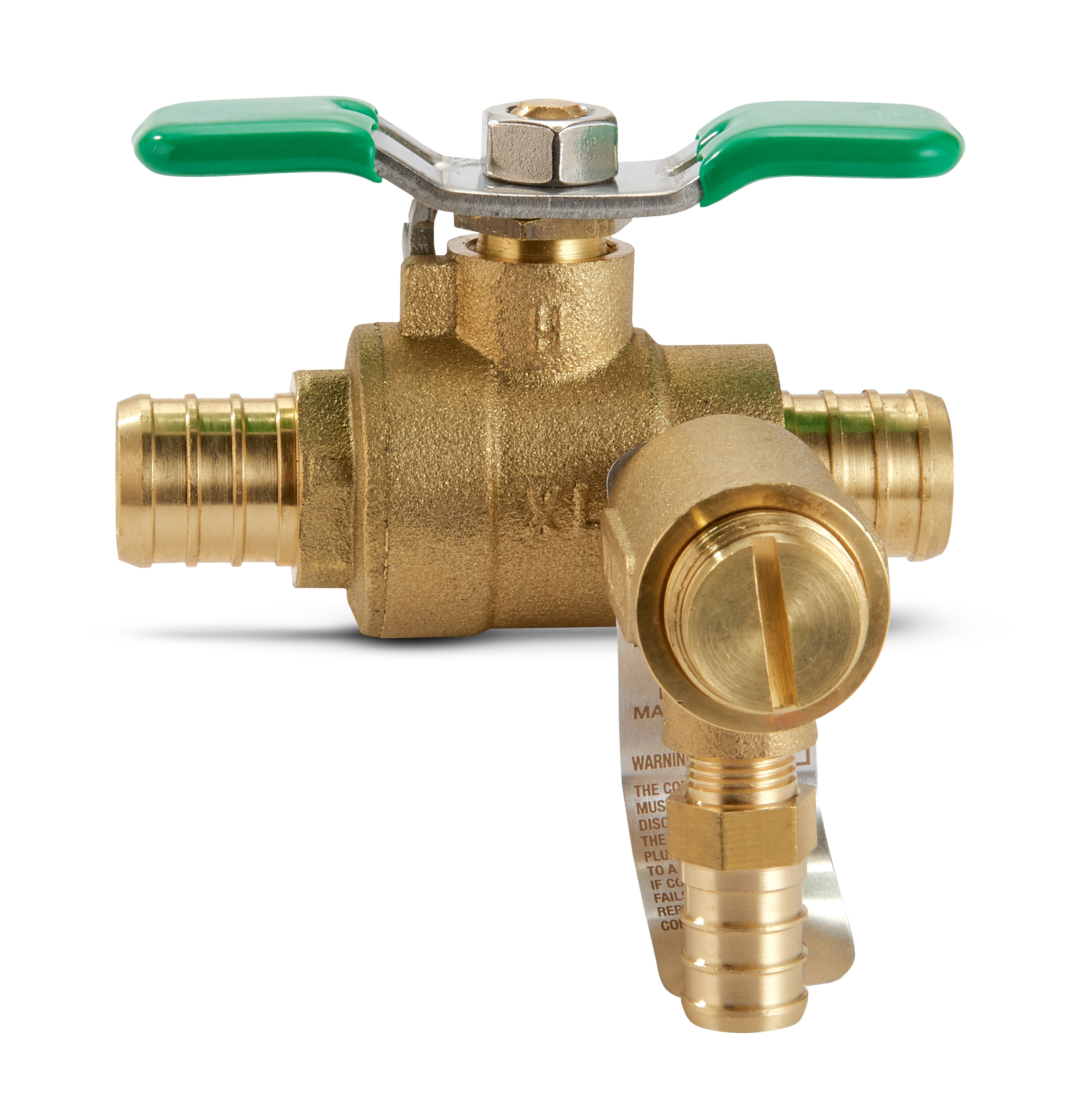

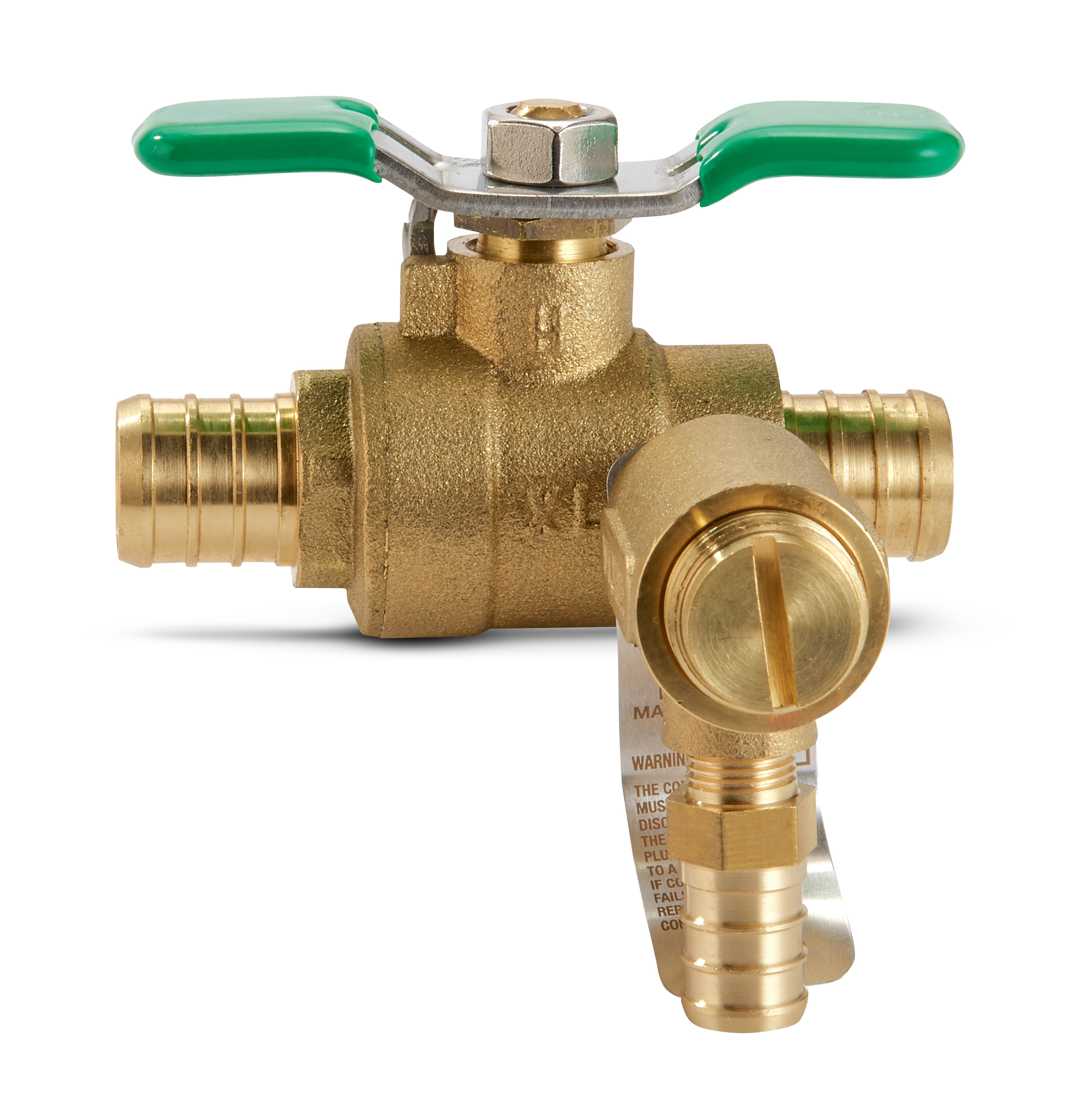

Wilkins 34-BVECXLPEX-125-PEX Brass Ball Valve 3/4 in Pex

Product Description

The WILKINS 34-BVECXLPEX-125-PEX is a full port brass ball valve designed for 3/4 inch PEX piping systems with 1/2 inch PEX fitting connections. Built to lead-free standards, this valve provides reliable shutoff and flow control in potable water and hydronic applications. The full port design minimizes pressure drop across the valve, maintaining system flow efficiency. Plumbers and pipefitters install this valve in residential and light commercial systems where a durable, code-compliant shutoff point is required at PEX transitions or distribution points.

This valve is suited for installations using cross-linked polyethylene tubing in domestic water supply, radiant heating, and plumbing distribution systems. Its lead-free brass construction meets current federal and state requirements for use in potable water systems. The integrated PEX fitting connection simplifies installation by eliminating additional adapter fittings at the valve body.

Key Features

• Full port design for minimal flow restriction and low pressure drop
• Lead-free brass body meets federal Safe Drinking Water Act requirements for potable water use
• 3/4 inch PEX inlet with 1/2 inch PEX fitting connection for direct system integration
• Ball valve mechanism provides quarter-turn shutoff for fast, reliable isolation
• Durable brass construction suitable for residential and light commercial plumbing systems

Compatibility

Designed as an OEM-style replacement and standard fit for 3/4 inch PEX plumbing systems requiring a lead-free full port ball valve shutoff with 1/2 inch PEX fitting outlets.

Installation Notes

Installation should be performed by a licensed plumber in accordance with local plumbing codes and the International Plumbing Code. Shut off the water supply and relieve system pressure before beginning work. Use the appropriate PEX crimping or expansion tool rated for the tubing size and connection type to ensure a leak-free joint. Do not overtighten or apply excessive force to the valve body during installation.

Technical Specifications

• Valve Type: Full Port Ball Valve
• Material: Lead-Free Brass
• Inlet Size: 3/4 inch PEX
• Outlet Fitting Size: 1/2 inch PEX
• Connection Type: PEX
• Lead Free: Yes
• UPC: 612052217789

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 34-BVECXLPEX-125-PEX
