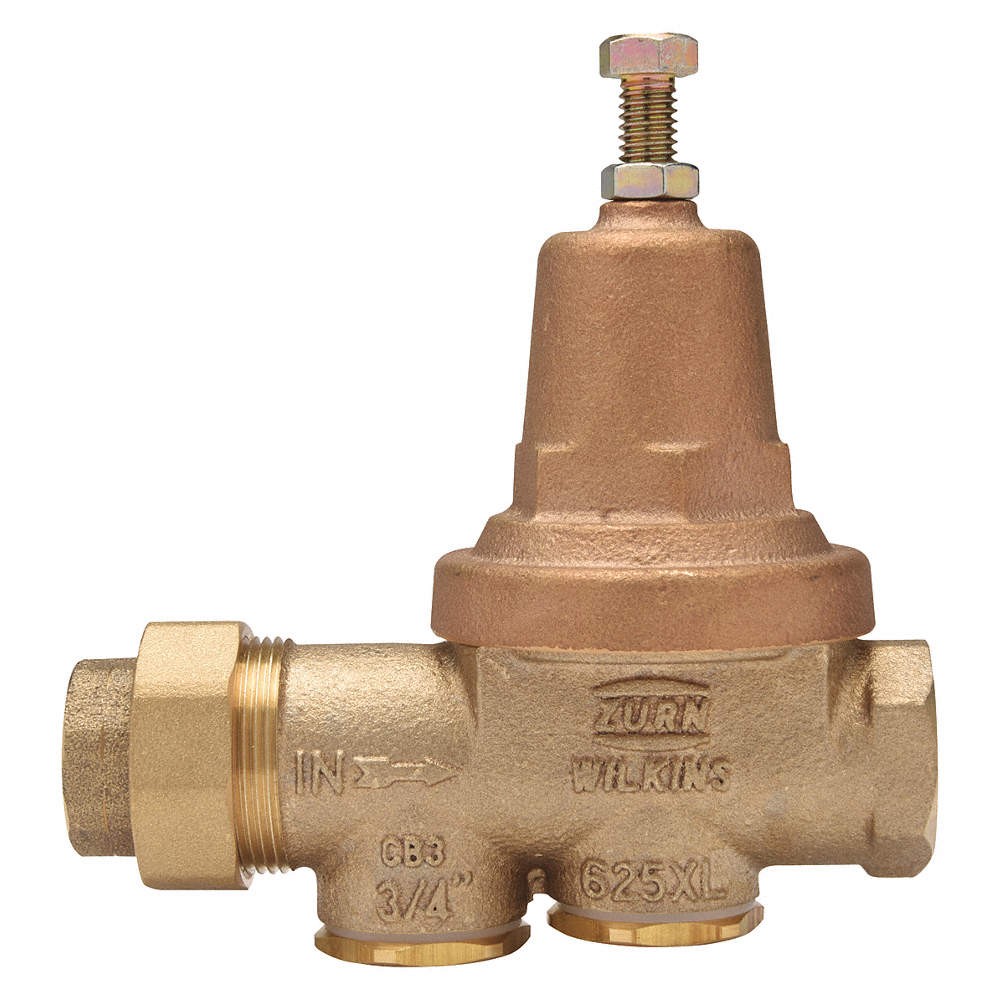

WILKINS 34-625XLC Pressure Reducing Valve 3/4 in. Competitor Replacement

Product Description

The WILKINS 34-625XLC pressure reducing valve is a reliable solution for water pressure regulation, designed with a competitive replacement footprint. This valve allows for quick installation thanks to the included fiber union gasket, which helps eliminate the need for re-piping.

• Eliminates the need for re-piping
• Designed with competitive replacement footprint
• Fast installation due to fiber union gasket

Product Highlights

This valve is certified in compliance with the Safe Drinking Water Act and features a lead-free bronze construction.

Product Information

Standard Information

• Item: Water Pressure Reducing Valve
• Compliance: ANSI/NSF 61

Technical Specifications

• Pipe Size: 3/4 inches
• Height: 5 1/2 inches
• Length: 5 5/16 inches
• Overall Height: 5 1/2 inches
• Inlet Connection Size: 3/4 inches
• Overall Width: 2 13/16 inches
• Connection Type: Female CU SWT Union x FNPT
• Body Material: Bronze
• Max. Pressure: 300 psi
• Max. Temp: 140 Degrees F
• Valve Type: Standard
• Material: Lead Free Bronze
• Pressure Adjustment Range: 25 to 75 psi
• Includes: Strainer
• Preset Pressure Settings: 50 psi
• Seat Material: Stainless Steel
• Port Design: Full Port
• Inlet Connection Gender: Female
• Operating Pressure - Maximum: 300 psi
• For Media: Water
• Fluid Temperature - Maximum: 140 Degrees F
• Union Type: Single
• Inlet Connection Type: NPT
• Pilot Adjustment - Maximum: 75 psi
• Pilot Adjustment - Minimum: 25 psi
• Coating/Lining: NSF Listed Fusion Bonded Epoxy Lining and Coating
• Operating Pressure - Minimum: 25 psi
• Flow Rate - Continuous Maximum: 25.1 gpm
• NSF Certifications for Food and Drinking Water: NSF 61
