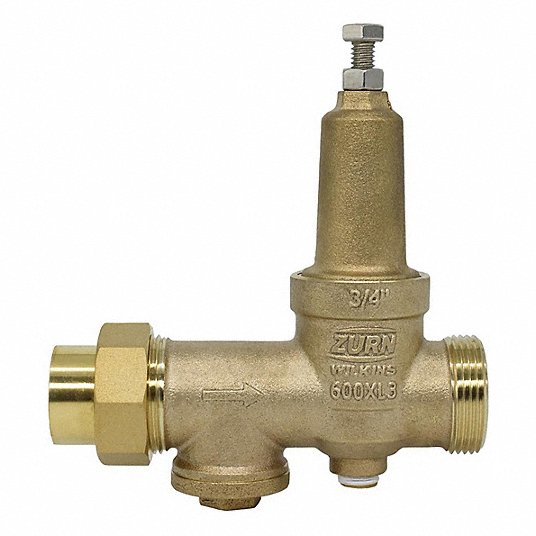

Wilkins 34-600XL3HR Pressure Reducing Valve 3/4 inches Inlet NPT

Product Description

The WILKINS 34-600XL3HR pressure reducing valve controls incoming water pressure to protect plumbing systems and reduce water consumption. It is certified to be compliant with the ". It is ideal for high-end residential and light commercial use. The integral strainer provides easy accessibility for inline servicing in tight spaces.

• For use with potable water pipes with a 3/4 in. inner diameter
• High range, outlet adjust from 60 PSI to 125 PSI
• Meets the requirements of NSF/ANSI/CAN 61 and 372, and Safe Drinking Water Act compliant

Product Highlights

This pressure reducing valve has standard stainless internals and a sealed cage for superior durability. It reduces pressure loss over the entire flow range.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 34-600XL3HR
• Country of Origin: Switzerland

Technical Specifications

• Body Material: Brass
• Application: Light Commercial Use, Residential Use
• Fluid Temperature - Maximum: 140 Degrees F
• Flow Rate - Intermittent Maximum: 33 gpm
• Pilot Adjustment - Maximum: 125 psi
• For Media: Water
• NSF Certifications for Food and Drinking Water: NSF 372, NSF 61
• Factory Set Pressure: 50 psi
• Port Design: Full Port
• Pilot Adjustment - Minimum: 60 psi
• Flow Rate - Continuous Maximum: 25 gpm
• Operating Pressure - Maximum: 400 psi
• Operating Pressure - Minimum: 60 psi
• Outlet Connection Gender: Female
• Inlet Connection Gender: Female
• Inlet Connection Type: NPT
• Outlet Connection Type: NPT
• Outlet Connection Size: 3/4 in
• Inlet Connection Size: 3/4 in
• Pipe Size: 3/4 in
• Overall Height: 6 1/4 in
• Overall Width: 1 3/4 in
• End Connection 1: FNPT
• End Connection 2: FNPT
• End Connections: FNPT
• Fitting Size 1: 3/4
• Fitting Size 2: 3/4
• Height: 6-1/4
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Length: 5-1/4
• Material: Brass, Bronze, Rubber, Stainless Steel, Noryl
• Maximum Temperature: 140
• Pressure - Maximum: 400 psi
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Type: W600XL3HRF
• UPC: 889934273489
• Valve Body Material: Low Lead Cast Bronze
• Valve Body Style: Inline
• Valve Disc Material: EPDM
• Valve Seat Material: Noryl
• Weight: 2
• Width: 1-3/4
• Pressure Adjustment Range: 60 psi to 125 psi
• Operating Pressure Range: 60 psi to 400 psi
• Max. Operating Temperature: 140 °F
• Max. Continuous Flow Rate: 25 gpm
• Max. Intermittent Flow Rate: 33 gpm
• Low-Lead Compliance: Low-Lead Compliant
• Manufacturer Part Number: 34-600XL3HR
