Product Description

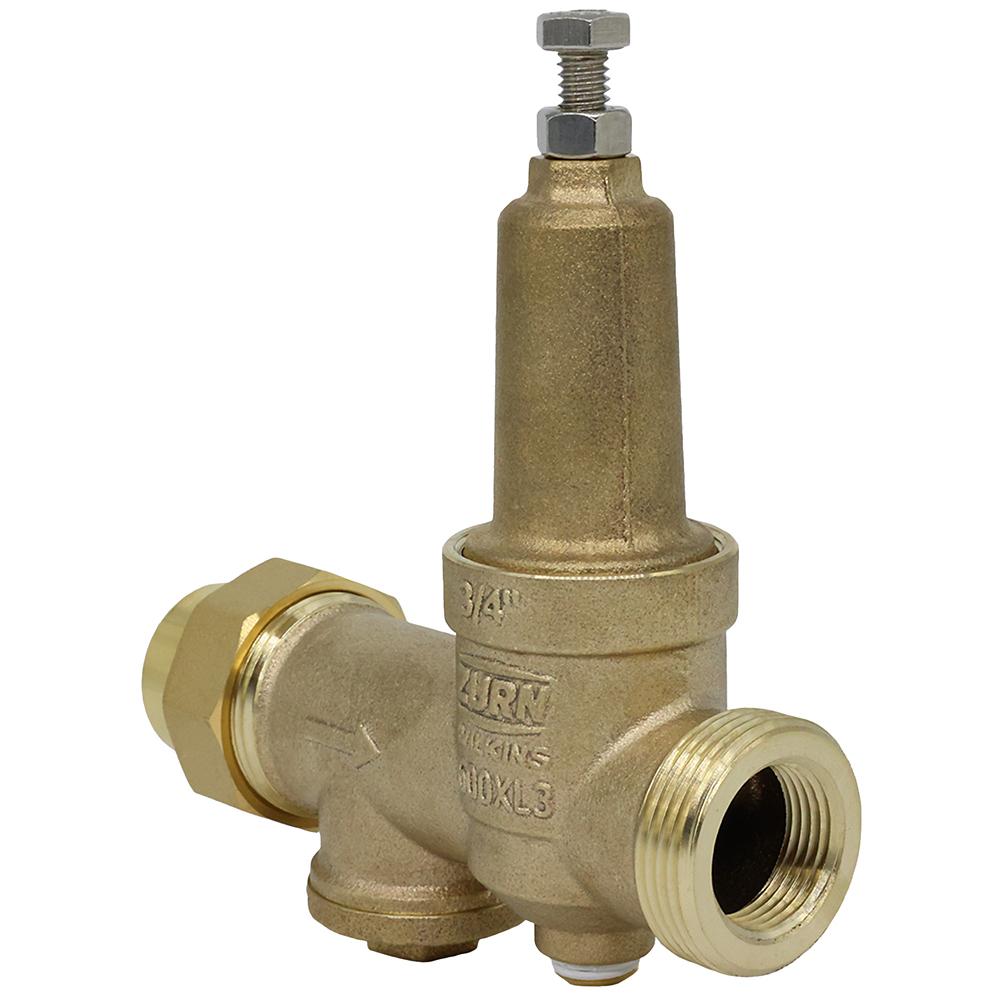

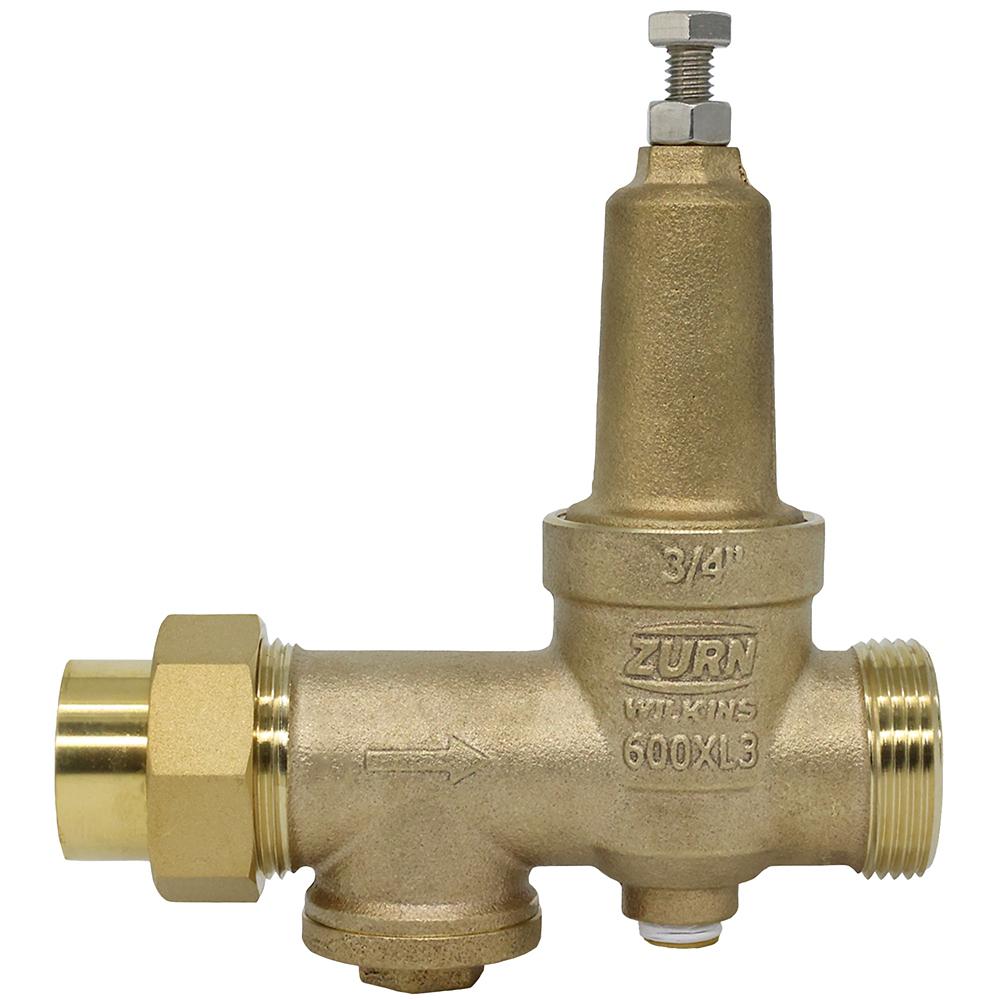

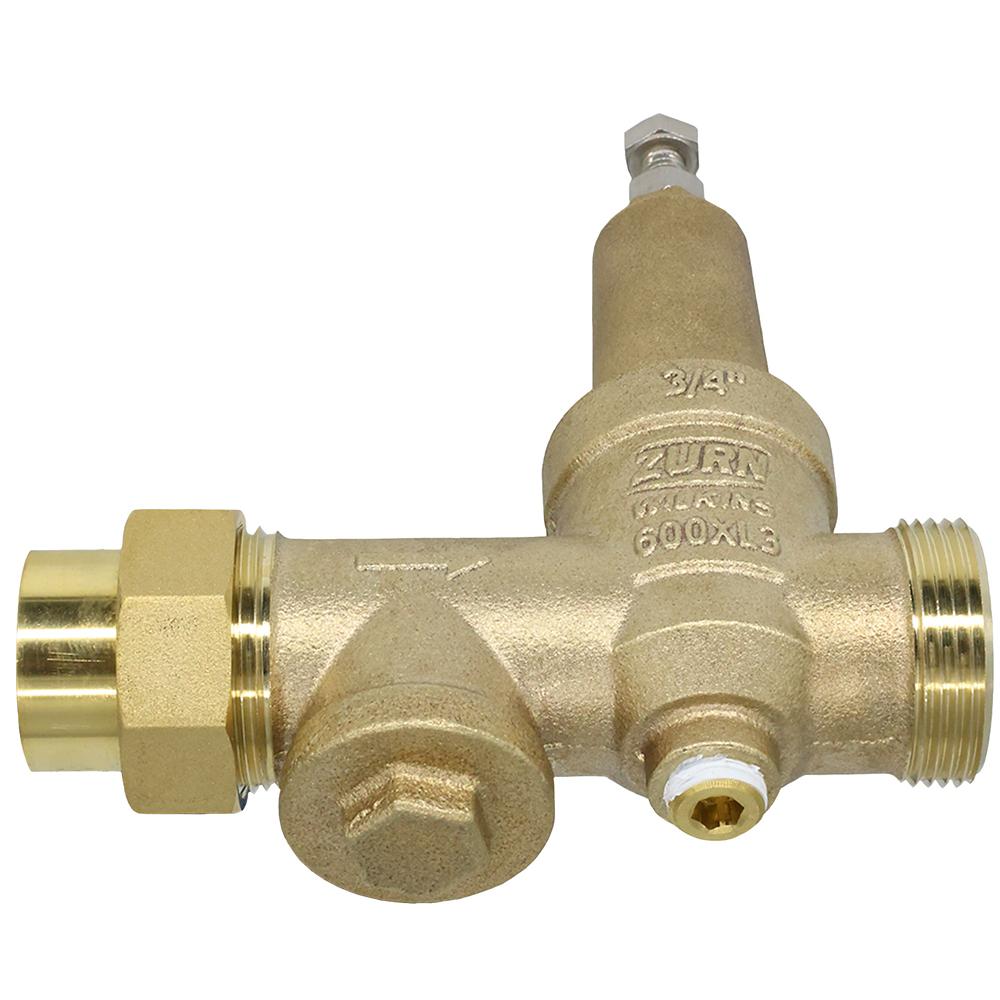

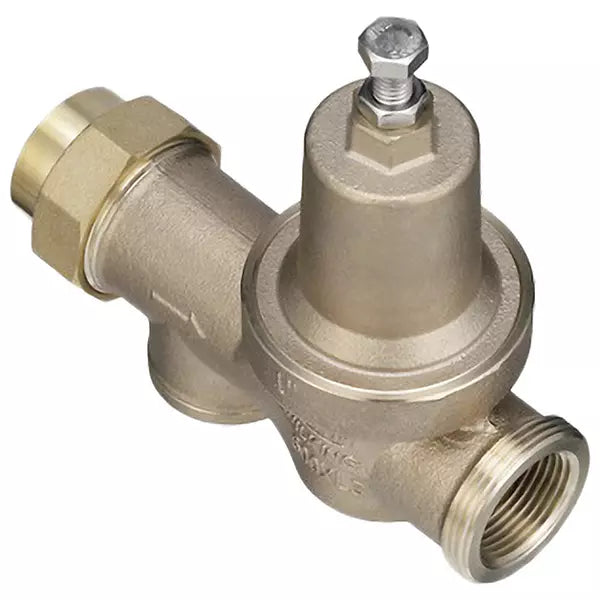

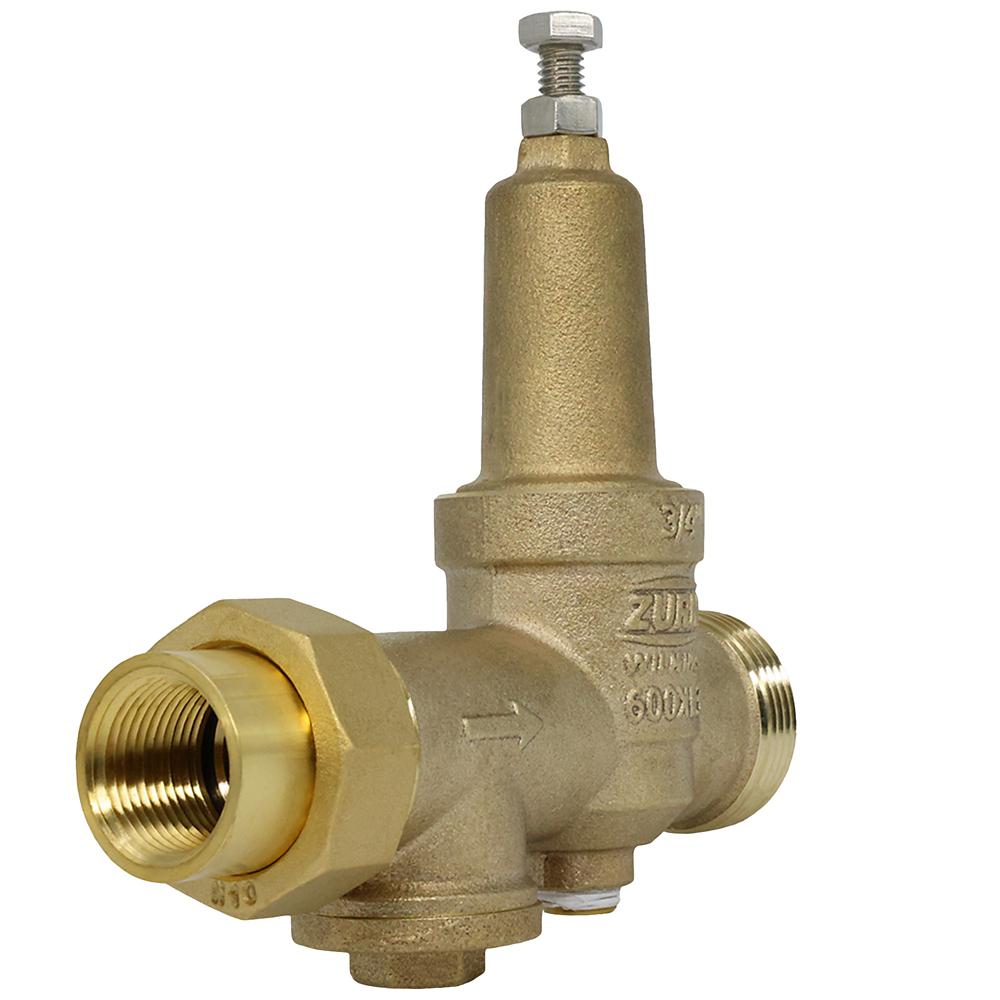

The Wilkins 34-600XL3 is a water pressure reducing valve with integral strainer designed for residential and commercial potable water systems, providing reliable pressure regulation and debris filtration in one compact unit. The patented venturi technology ensures the valve delivers best-in-class flow performance. Constructed with an all-bronze body and stainless-steel stem, this valve offers superior corrosion resistance.
- Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
- Standard stainless internals and sealed cage provide superior durability
- Works effectively for new and retrofit installations
Product Highlights
Ideal for residential and light commercial use. Meets the requirements of NSF/ANSI/CAN 61 and 372; is ASSE Listed; cUPC Listed; CSA Certified, and Safe Drinking Water Act. Single or double union connection options allow for installation flexibility.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: 34-600XL3
Technical Specifications
-
Size: 3/4 Inches (20mm)
-
Connection Type: Single Union FNPT inlet x FNPT outlet
-
Maximum Working Water Pressure: 400 psi
-
Maximum Working Water Temperature: 140°F
-
Reduced Pressure Range: 15 psi to 75 psi
-
Factory Preset Pressure: 50 psi
-
Body Material: Low lead cast bronze ASTM B806
-
Strainer Material: 300 series stainless steel
-
Internal Components: Premium 300 series stainless steel
-
Threaded Connections Standard: ANSI B1.20.1
-
Cartridge Material: Noryl™
-
Elastomers: FDA approved Buna Nitrile and EPDM
-
Valve Design: Balanced piston with integral by-pass and removable cartridge
-
Certifications: ASSE 1003, cUPC, CSA B356, NSF/ANSI/CAN 61 & 372
-
ASSE Standards: ASSE 1003
-
CSA Certified: CSA
-
End Connection 1: FNPT
-
End Connection 2: FNPT
-
End Connections: FNPT
-
Fitting Size 1: 3/4
-
Fitting Size 2: 3/4
-
Height: 6-1/4
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Length: 5-1/4
-
Material: Brass, Bronze, Rubber, Stainless Steel, Noryl
-
Maximum Temperature: 140
-
NSF: NSF 61, NSF 372
-
NSF Certified: Yes
-
Pressure - Maximum: 400 psi
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Type: W600XL3F
-
UPC: 889934272567
-
Valve Body Material: Low Lead Cast Bronze
-
Valve Body Style: Inline
-
Valve Disc Material: EPDM
-
Valve Seat Material: Noryl
-
Weight: 2
-
Width: 1-3/4
