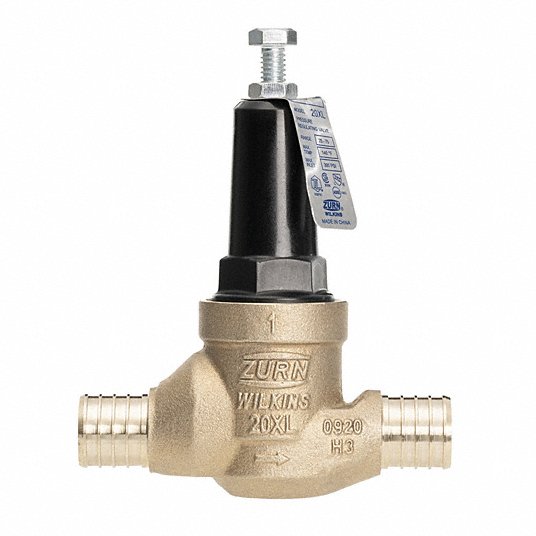

Wilkins 34-20XLPEX Water Pressure Reducing Valve 3/4 in Pipe Size

Product Description

The WILKINS 34-20XLPEX water pressure regulator controls incoming water pressure to set levels, protecting plumbing systems and reducing water consumption in light commercial and residential applications. It features a cast bronze body, EPDM seat material, and elastomer disc material. The regulator includes an integral strainer for easy inline servicing and has a pressure adjustment range of 25 psi to 75 psi.

• Controls incoming water pressure
• Protects plumbing systems
• Reduces water consumption

Product Highlights

This water pressure regulator is ideal for commercial and residential applications, offering reliable pressure control and easy maintenance.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 34-20XLPEX
• Country of Origin: China

Technical Specifications

• Brand: WILKINS
• Manufacturer Part Number: 34-20XLPEX
• For Media: Water
• Application: Commercial Use; Residential
• Use: Union Type
• Inlet Connection Size: 3/4 in
• Outlet Connection Size: 3/4 in
• Body Material: Cast Bronze
• Seat Material: EPDM
• Disc Material: Elastomer
• Coating/Lining: NSF Listed Fusion Bonded Epoxy Lining and Coating
• Pressure Adjustment Range: 25 psi to 75 psi
• Operating Pressure Range: 25 psi to 300 psi
• Max. Operating Temperature: 140 °F
• Factory Set Pressure: 50 psi
• Max. Continuous Flow Rate: 25.1 gpm
• Port Design: Full Port
• Overall Width: 1-3/4 in
• Overall Height: 4-3/8 in
• Includes Strainer: Strainer Included
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61
• Standards: ASSE 1003; CSA B356; cUPC; Safe Drinking Water Act Compliant
