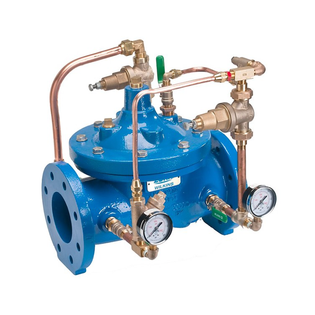

Wilkins 3-ZW209BP Pressure Reducing Valve 3 inches Flanged X Flanged

Product Description

The Wilkins 3-ZW209BP pressure reducing valve is designed to reduce high inlet pressure to a controlled downstream pressure. It features a flanged connection and low flow bypass. The pilot-operated design helps maintain stable outlet pressure. This valve is suitable for applications requiring the reduction of high inlet pressures to safe and stable outlet pressures.

• Pilot-operated design helps maintain stable outlet pressure
• Low flow bypass helps reduce valve chatter at low flow
• Includes copper tubing and brass fittings

Product Highlights

This pressure reducing valve is ideal for maintaining constant downstream pressure in commercial, industrial, and irrigation applications.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 3-ZW209BP

Technical Specifications

• Description: Pressure Reducing Valve, 150#, Flanged X Flanged, Low Flow By-pass
• Manufacturer: Wilkins
• PDW MFR CAT: 3-ZW209BP
• Pittman #: 197308
• Brand: Zurn Wilkins
• Model: ZW209BP
• Product Type: Pilot Operated Pressure Reducing Valve with Low Flow Bypass
• Size: 3"
• Body Style: Globe
• End Connections: ANSI Class 150 Flanged
• Main Valve Body: Ductile Iron
• Seat, Disc Guide, Stem, Spring Material: Stainless Steel
• Pilot Spring Range: 15-120 psi
• Temperature Rating: 140 deg F
• Main Valve Bonnet: Ductile Iron ASTM A536
• Disc Guide: Stainless Steel
• Seat: Stainless Steel
• Disc: Buna-N
• Rubber Diaphragm: Nylon Reinforced Buna-N
• Stem: Stainless Steel
• Spring: Stainless Steel
• Body Material: Ductile Iron
• Domestic / Import: Domestic
• End Style: Flanged
• Nominal Size: 3 in
• Pressure Range: 250 psi
• Finish: Epoxy Coated
• Media: Water
• Pressure Class: 150 Lb
• Series: ZW209BP
• Softgoods Material: Nylon Reinforced Buna-N Diaphragm
• Trim Material: Buna-N Rubber Disc/Stainless Steel Disc Guide/Seat/Stem/Spring
