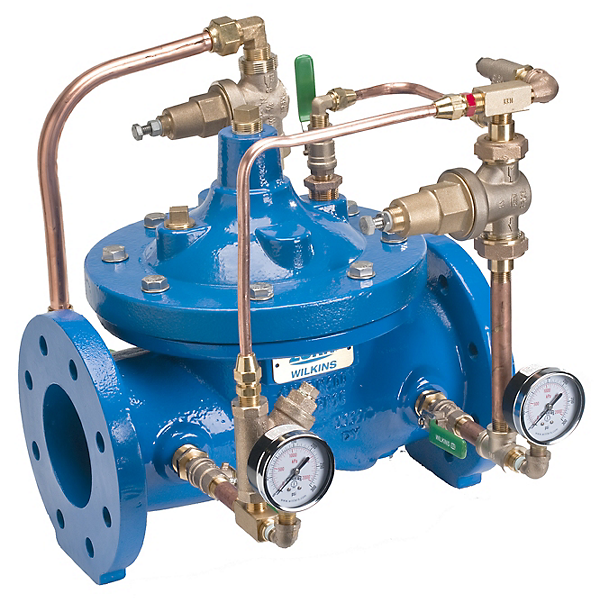

Wilkins 212-ZW209BP Globe Style Pressure Reducing Valve With Low Flow By-Pass 2-1/2 in Nominal

Product Description

The WILKINS 212-ZW209BP globe style pressure reducing valve with low flow bypass prevents chattering of the main valve specifically from 0 to 10 gpm. It is designed for high inlet pressure reduction to stable outlet pressure in commercial and industrial water systems. Standard features ease maintenance and repair and provide the lowest total cost of ownership.

• Ideal for accommodating both high and low flow rates.
• Pressure gauges, wye strainer, isolation valves, and epoxy coating come standard to simplify start-up and maintenance.
• Holds downstream pressure to a constant value.

Product Highlights

This pressure reducing valve is ideal for maintaining constant downstream pressure, simplifying maintenance, and accommodating various flow rates.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 212-ZW209BP

Technical Specifications

• Brand: Zurn Wilkins
• Body Material: Ductile Iron
• Domestic/Import: Domestic
• End Style: Flanged
• Finish: Epoxy Coated
• Flow Rate: 20 to 300 gpm
• Inlet to Outlet Length: 11 in
• Media: Water
• Nominal Size: 2-1/2 in
• Port Type: Full
• Pressure Class: 150 lb
• Pressure Range: 250 psi
• Series: ZW209BP
• Softgoods Material: Nylon Reinforced Buna-N Diaphragm
• Temperature Rating: 140 deg F
• Top to Inlet Center: 7-3/8 in
• Trim Material: Buna-N Rubber Disc/Stainless Steel Disc Guide/Seat/Stem/Spring
• Type: Globe Style
• Size: 2 1/2 Inches
• Pilot Spring Range: 15–120 psi
• Notable Certifications: NSF/ANSI 61 compliant
• End Connections: ANSI Class 150 flanged (standard); optional Class 300, NPT threaded, or IPS grooved
• Maximum Working Pressure: 250 psi for ANSI Class 150 flanged; 400 psi for Class 300 flanged
• Main Valve Body Material: Ductile iron ASTM A536 with blue epoxy coating
• Diaphragm Material: Nylon reinforced Buna-N rubber
• Maximum Continuous Flow: 300 GPM (19 L/s)
• Maximum Intermittent Flow: 375 GPM (23 L/s)
• Minimum Continuous Flow: 20 GPM (1.3 L/s)
• Low-Flow Bypass Capacity: 1–10 GPM (0.06–0.63 L/s)
• Bypass Valve Type: 1/2 Inches PRXL pressure reducing valve
• Strainer Type: Wye-type strainer (SXL) with isolation valve
• Standard Features: Isolation valves (850XL), inlet and outlet pressure gauges, opening speed control, pilot assembly, copper tubing and brass fittings
• NSF Compliance: NSF/ANSI/CAN 61 certified (0.25% max. weighted average lead content)
• Standards Compliance: ANSI/AWWA C530
