Wilkins 212-F100 Fire Hose Valve 2-1/2 inch Angle

Brand: WILKINS
SKU: 212-F100
Availability: In Stock

Ships same day if ordered by 12 pm
$181.18
$181.18
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

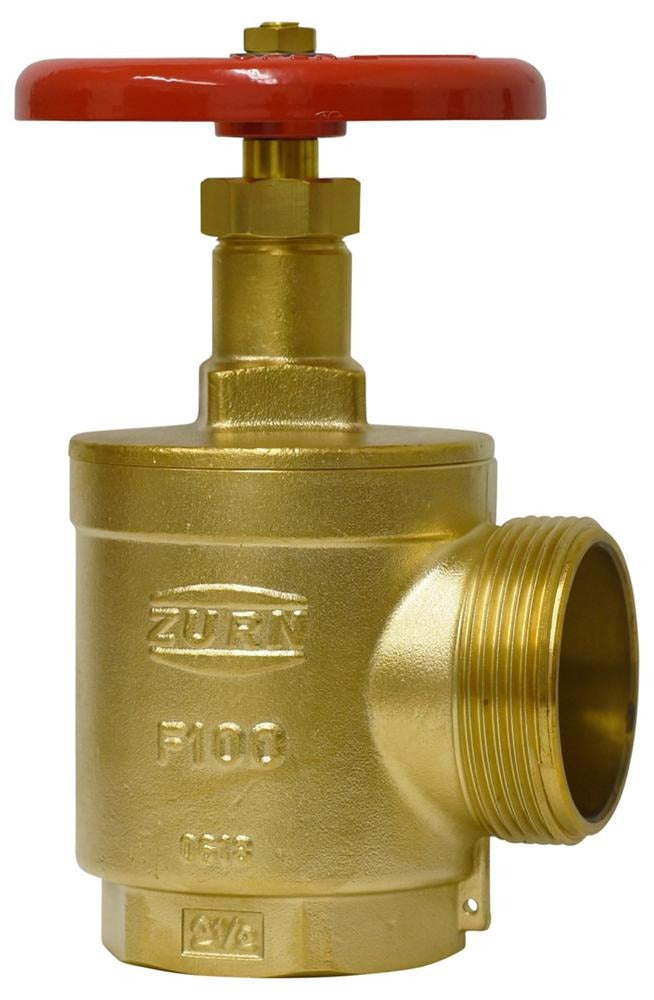

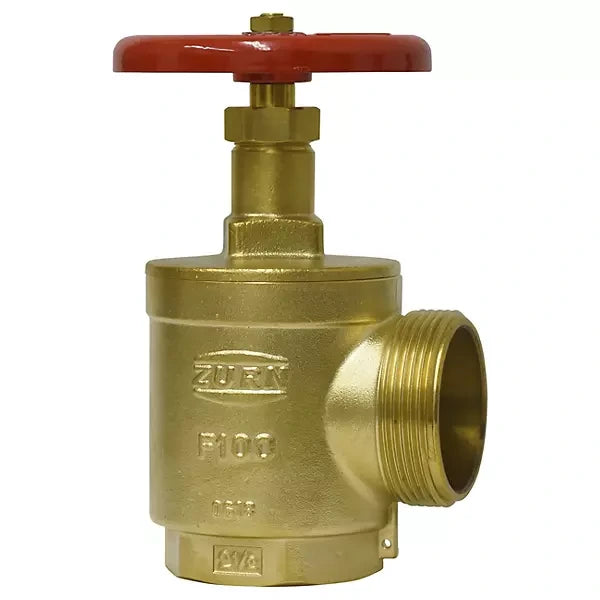

The Wilkins 212-F100 is an angle-body 2-1/2 inch fire hose valve designed for standpipe hose rack assemblies and fire department outlet connections. It has a C37700 brass main valve body, EPDM O-rings, and an aluminum handwheel, with FNPT inlet and NH outlet options. The valve provides a flow coefficient (Cv) of 148 and a maximum inlet pressure of 300 psi and is UL and FM listed for standpipe systems.

  • Angle-body fire hose valve for standpipe and fire department outlet connections; available in 1-1/2 inch and 2-1/2 inch sizes
  • C37700 brass main valve body with EPDM O-rings and aluminum handwheel; optional chrome-plated finish for select models
  • FNPT inlet with NH or special thread outlet options; Cv 148 and maximum inlet pressure 300 psi; UL Listed and FM Approved

Product Highlights

2-1/2 inch angle fire hose valve, brass body, FNPT inlet/NH outlet, Cv 148, 300 psi max, UL and FM listed

Product Information

Standard Information

  • Brand: WILKINS
  • Manufacturer Part Number: 212-F100
Technical Specifications
Brand
Wilkins
Model Number
212-F100
Model
F100
Application
Standpipe valve for fire hose rack assembly or fire department outlet connection
Valve Type
Angle body fire hose valve
Size
2-1/2 inch
Available Sizes
1-1/2 inch; 2-1/2 inch
Inlet Connection
Female NPT (FNPT)
Outlet Connection
NH (National Hose) or special thread; FNPT variants available
Flow Coefficient (Cv)
148
Maximum Inlet Pressure
300 psi
Body Material
Brass (C37700); chrome-plated brass option for select models
O-Ring Material
EPDM (A70)
Handwheel Material
Aluminum (A03600)
Handwheel Bolt Material
Brass (C37700)
Handwheel Retaining Washer Material
304 Stainless Steel
Certifications
UL Listed; FM Approved; C-UL and ULC Listed (2-1/2 inch only)
Body Style
Angle body
Outlet Thread Options
NH (National Hose), FNPT, special thread (ST)
Finish Options
Brass; rough chrome plated (2-1/2 inch option)
Other Variants
212-F100G (grooved inlet × NH outlet); 212-F100GST (grooved × special thread outlet); 212-F100F (FNPT inlet × FNPT outlet); 112-F100 (1-1/2 inch version)
