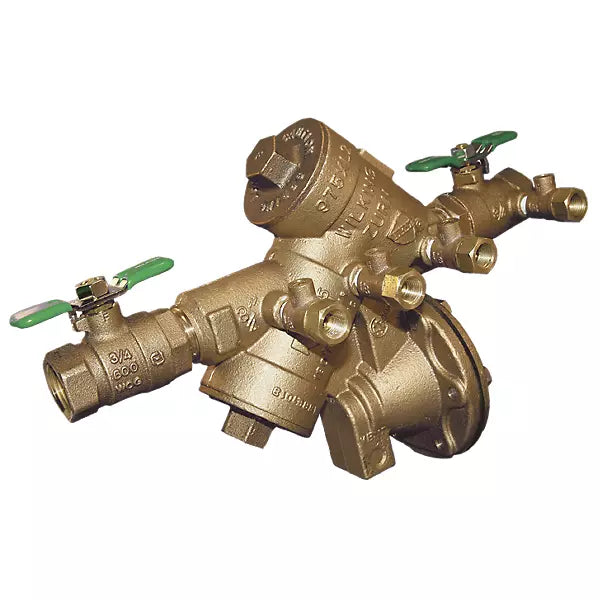

Wilkins 2-975XL2U 975xl2u Reduced Pressure Principle Assembly with Union Ball Valves 2 in

Product Description

The Wilkins 2-975XL2U Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. This wye pattern, bronze body backflow preventer is assembled with union ball valve shutoffs. It is ASSE Listed 1013, IAPMO Listed, CSA Certified B64.4, and AWWA Compliant C511. Meets the requirements of NSF/ANSI 61.

• Unions between body an shut-off valves allows body to easily be removed from the line
• Well suited to irrigation applications that require removal of the valve during the winter months
• Low-lead law compliant

Product Highlights

The 975XL2U backflow preventer offers reliable protection for potable water systems, with easy maintenance and compliance with industry standards.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 2-975XL2U

Technical Specifications

• ANSI: ANSI 61, ANSI B1.20.1
• ASSE Standards: ASSE 1013
• AWWA: AWWA C-511
• CSA Certified: CSA
• Collection: Model 975XL2U
• End Connection 1: FPT
• End Connection 2: FPT
• End Connections: FPT
• IAPMO Listed: Yes
• Lead Law Compliance Level: Lead Law Compliant and Certified
• Lead Law Compliant: Yes
• Material: Cast Bronze
• Maximum Temperature: 180
• Minimum Temperature: 33
• NSF Certified: Yes
• Number of Handles: Two Handle
• Pressure - Maximum: 350 psi
• Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
• Recommended Valve Application: Potable Water, Water
• UL Listed: Yes
• Valve Body Material: Cast Bronze
• Valve Operator: Lever Handle
• Valve Seat Material: Silicone
• Valve Size: 2 in
• Valve Type: Reduced Pressure Principle Assembly
