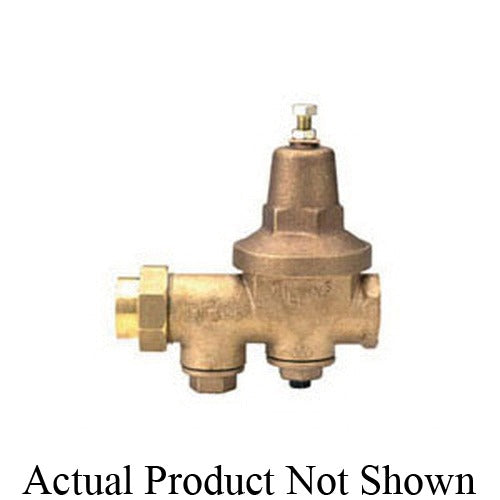

Wilkins 2-600XLC Pressure Reducing Valve 2 in 300 Psi

Product Description

The WILKINS 2-600XLC is a pressure reducing valve (PRV) designed for commercial and industrial plumbing systems where precise downstream pressure control is required. Built with a cast bronze body, this valve integrates a bypass check valve and a strainer into a single assembly, reducing the need for additional inline components. The 2-inch Female C Union by FNPT end connections allow for straightforward installation and future serviceability. Rated to 300 psi, the 2-600XLC is suited for high-pressure supply lines in buildings, mechanical rooms, and process water systems. Licensed plumbers and pipefitters are the primary installers of this type of valve.

This valve is appropriate for 2-inch potable water and general plumbing supply applications in commercial, institutional, and light industrial settings. The integral strainer protects internal valve components from debris in the supply line, extending service life and reducing maintenance intervals. The bypass check valve prevents backflow through the PRV during pressure fluctuations or reverse-flow conditions. Installation is typically performed in mechanical rooms or utility spaces where water service enters a building or zone. The Female C Union connections allow the valve body to be removed for inspection or service without cutting the supply line.

Key Features

• Integral bypass check valve eliminates the need for a separate backflow component in many installations
• Built-in strainer protects valve internals and downstream equipment from particulate contamination
• Cast bronze body provides corrosion resistance in potable water and general plumbing service
• 2-inch Female C Union x FNPT end connections support in-line serviceability without line cutting
• 300 psi pressure rating accommodates high-pressure supply conditions

Compatibility

Designed as an OEM-style replacement or new-installation PRV for 2-inch commercial and industrial plumbing systems requiring integrated bypass check and strainer functionality.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure completely before installing or servicing this valve. Ensure flow direction matches the arrow or marking on the valve body. Inspect and clean the integral strainer periodically according to the system water quality and the manufacturer service guidelines.

Technical Specifications

• Valve Type: Pressure Reducing Valve with Integral Bypass Check Valve and Strainer
• Maximum Pressure: 300 psi
• Pipe Size: 2 inches
• End Connections: Female C Union x FNPT
• Body Material: Cast Bronze

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 2-600XLC
