Product Description

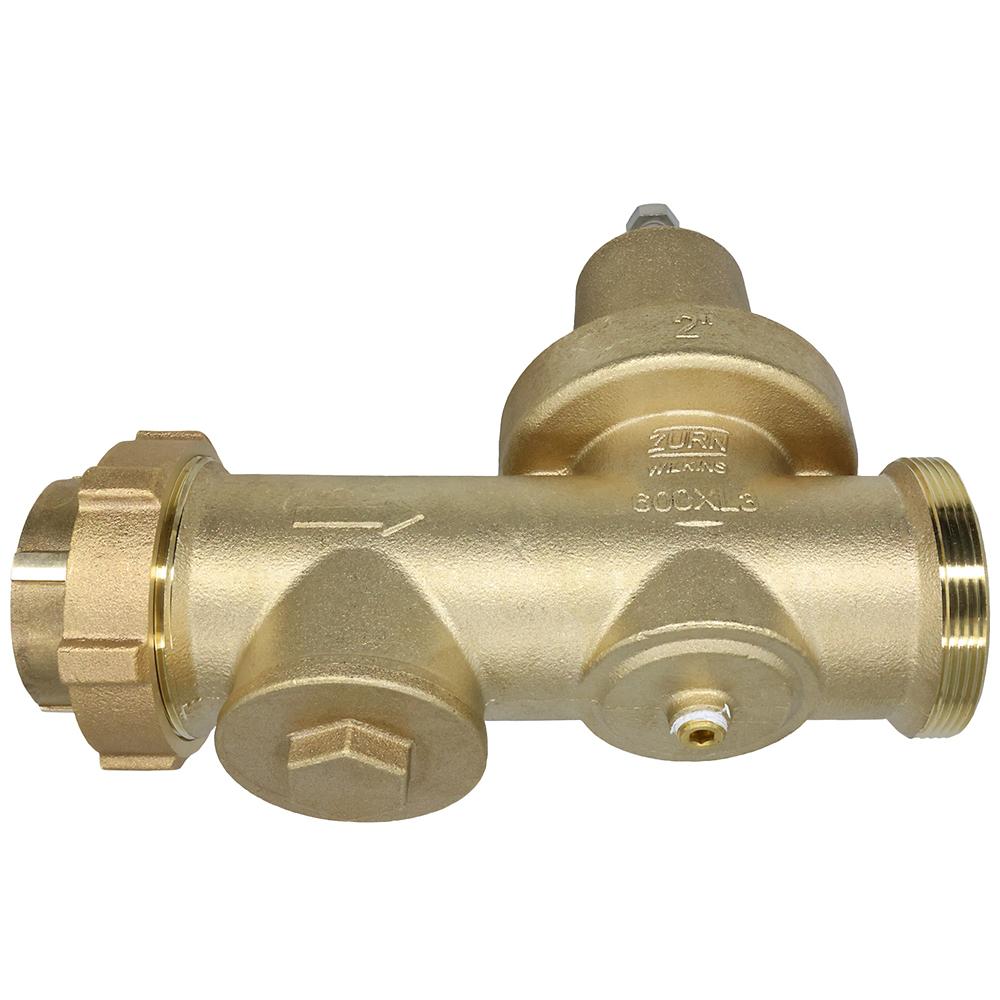

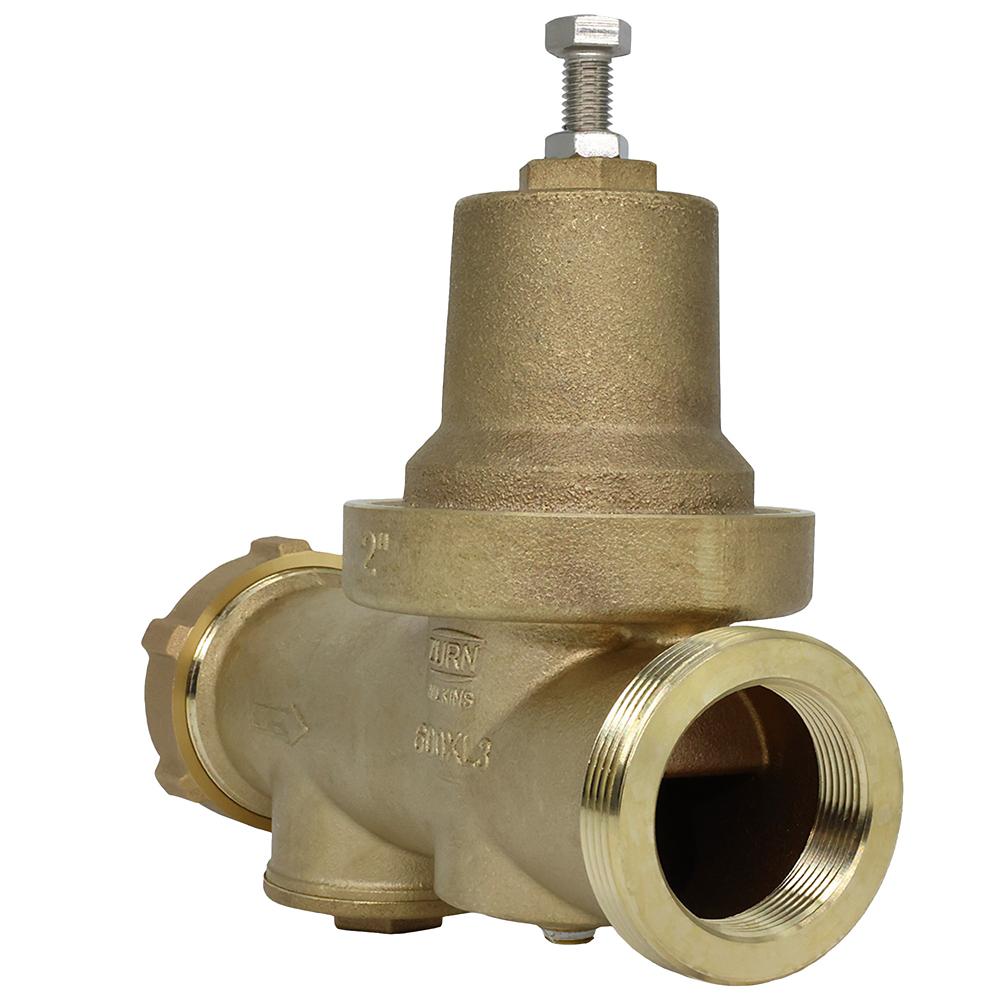

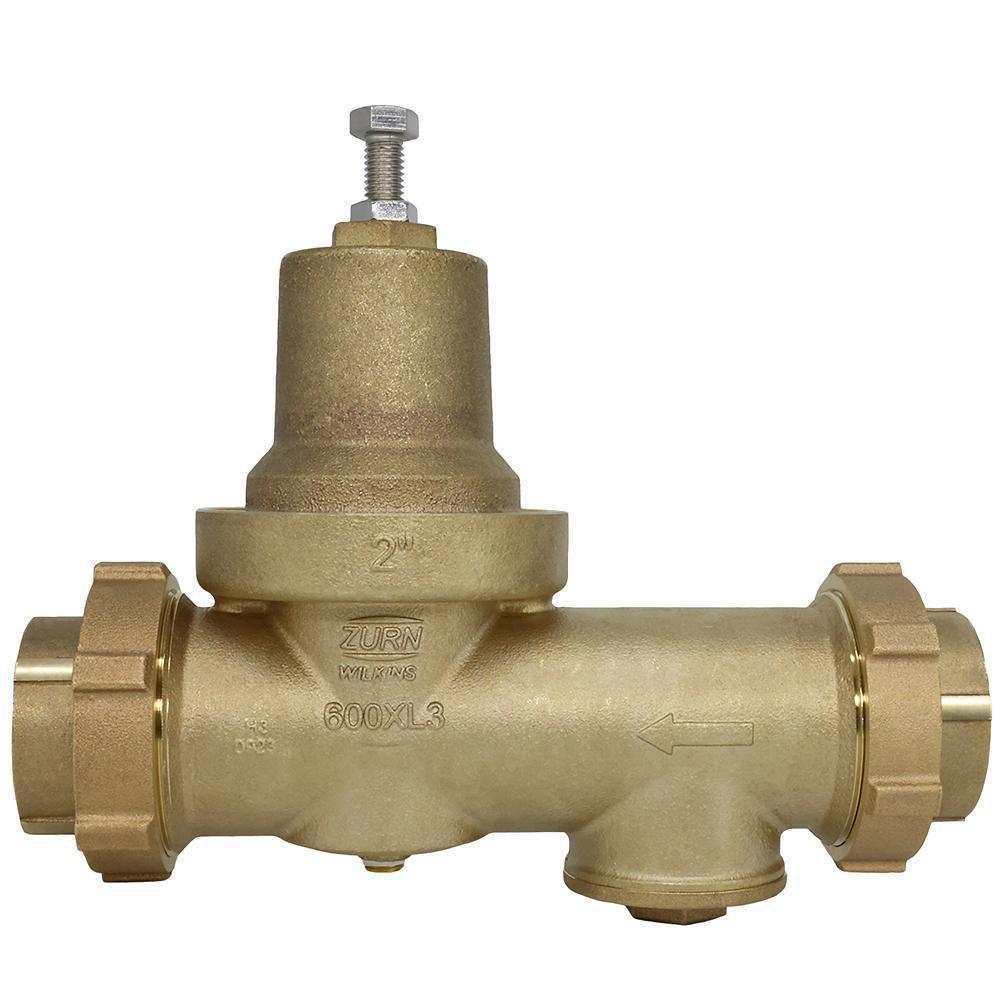

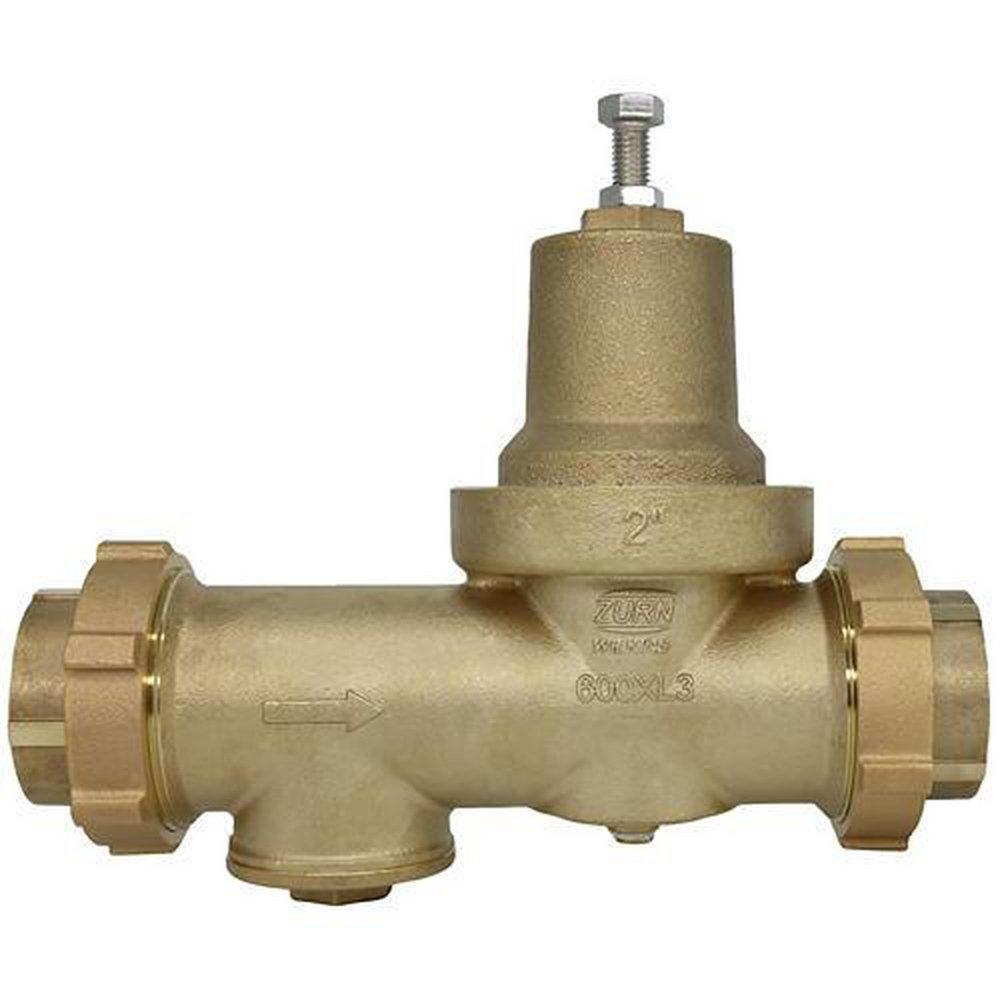

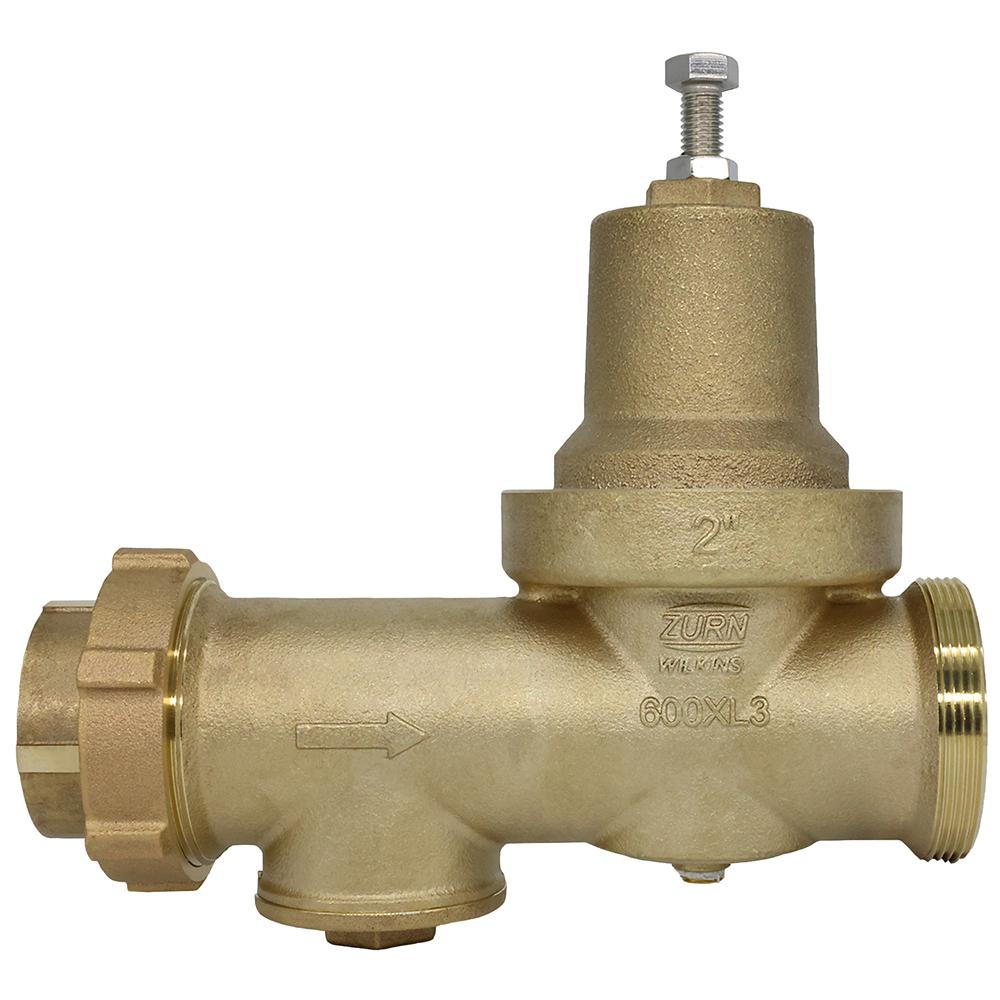

The Wilkins 2-600XL3 is a water pressure reducing valve with integral strainer designed for residential and light commercial water lines. It provides high-flow rate capacity and low-pressure falloff. The patented venturi technology ensures the valve delivers best-in-class flow performance. Constructed with an all-bronze body and stainless-steel stem, this valve offers superior corrosion resistance.
- Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
- Standard stainless internals and sealed cage provide superior durability
- Works effectively for new and retrofit installations
Product Highlights
Ideal for high-end residential and light commercial use. Meets the requirements of NSF/ANSI/CAN 61 and 372; is ASSE
Listed; cUPC Listed; CSA Certified, and Safe Drinking Water Act.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: 2-600XL3
-
Country of Origin: USA
Technical Specifications
-
ASSE Standards: ASSE 1003
-
CSA Certified: CSA
-
End Connection 1: FNPT
-
End Connection 2: FNPT
-
End Connections: FNPT
-
Fitting Size 1: 2
-
Fitting Size 2: 2
-
Height: 10 in
-
Lead Law Compliance Level: Lead Law Compliant and Certified
-
Lead Law Compliant: Yes
-
Length: 11-1/2
-
Material: Brass, Bronze, Rubber, Stainless Steel, Noryl
-
Maximum Temperature: 140 °F
-
NSF: NSF 61, NSF 372
-
NSF Certified: Yes
-
Proposition 65: WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
-
Type: W600XL3DUK
-
UPC: 889934273366
-
Valve Body Material: Low Lead Cast Bronze
-
Valve Body Style: Inline
-
Valve Disc Material: EPDM
-
Valve Seat Material: Noryl
-
Weight: 13.7
-
Width: 4-9/16 in
-
For Media: Water
-
Application: Light Commercial Use; Residential
-
Use: Connections
-
Inlet Connection Size: 2 in
-
Outlet Connection Size: 2 in
-
Body Material: Brass
-
Stem Material: Stainless Steel
-
Pressure Adjustment Range: 15 psi to 75 psi
-
Operating Pressure Range: 15 psi to 400 psi
-
Max. Operating Temperature: 140 °F
-
Factory Set Pressure: 50 psi
-
Max. Continuous Flow Rate: 157 gpm
-
Max. Intermittent Flow Rate: 209 gpm
-
Port Design: Full Port
-
Overall Width: 4-9/16 in
-
Overall Height: 10 in
-
Includes Strainer: Strainer Included
-
Low-Lead Compliance: Low-Lead Compliant
-
NSF Certifications for Food and Drinking Water: NSF 61; NSF 372
-
Standards: CSA® Certified; cUPC® Listed; is ASSE® Listed; NSF/ANSI/CAN 61 and 372
-
Manufacturer Part Number: 2-600XL3
-
Size: 2 Inches
-
Maximum Working Water Pressure: 400 psi
-
Notable Certifications: ASSE 1003, cUPC, CSA B356
-
Connection Type: Single Union FNPT
-
Main valve body: Low lead cast bronze ASTM B806
-
Bell housing: Low lead cast bronze ASTM B806
-
Fasteners: Stainless steel, 300 series
-
Stem: Stainless steel, 300 series
-
Plunger: Stainless steel, 300 series
-
Elastomers: Buna Nitrile (FDA approved), EPDM (FDA approved)
-
Springs: Stainless steel, 300 series
-
Cartridge: Noryl™
-
Strainer screen: Stainless steel, 300 series
-
Threaded Connections Standard: ANSI B1.20.1
-
Reduced Pressure Range: 15 psi to 75 psi
-
Factory Preset Pressure: 50 psi
-
Internal Components: Stainless steel, 300 series
-
Cartridge Material: Noryl™
-
Strainer Screen Material: Stainless steel, 300 series
