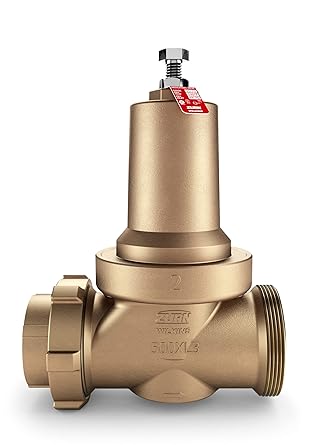

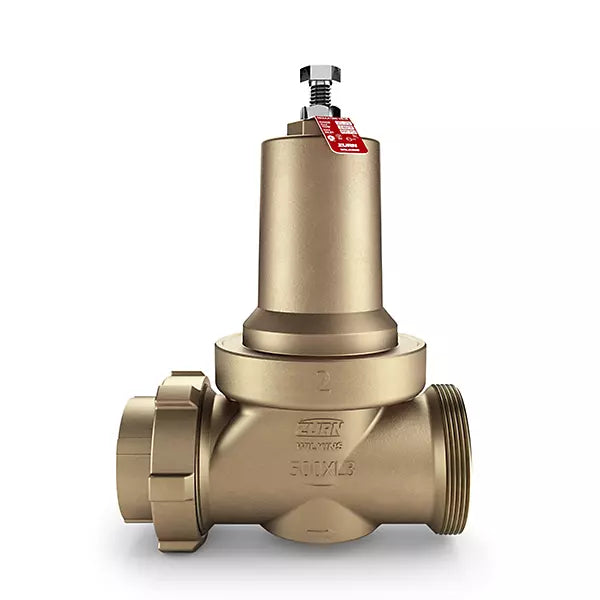

WILKINS 2-500XL3 Pressure Reducing Valve

Product Description

The WILKINS 2-500XL3 pressure reducing valve is built for industrial water lines and commercial systems. It has a bronze body and a stainless steel stem with cartridge internals. The venturi design reduces pressure falloff while maintaining a high flow rate. This valve can be installed in various orientations due to its compact size. The valve body features FNPT connections for straightforward integration.

• Bronze body provides corrosion resistance.
• Stainless steel stem for durability.
• Designed for high flow rate and low pressure loss.

Product Highlights

This valve is suitable for controlling pressure in various applications, ensuring safety and efficiency.

Product Information

Standard Information

• Brand: Wilkins
• UPC: 612052E+11

Technical Specifications

• Material: Low Lead Cast Bronze, Plastic, Rubber, Stainless Steel
• Inlet Connection Size: 2 inches
• Inlet Connection Type: FNPT
• Outlet Connection Type: FNPT
• Valve Type: Pressure Reducing Valve
• Height: 12.76 inches
• Length: 8.81 inches
• Width: 7.31 inches
• Maximum Temperature: 140°F
• Weight: 25 lb
• CSA Certified: Yes
• Lead Law Compliant: Yes
