Product Description

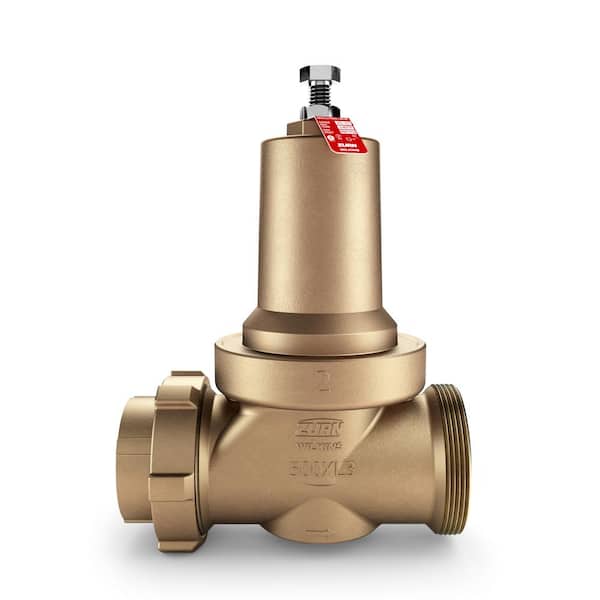

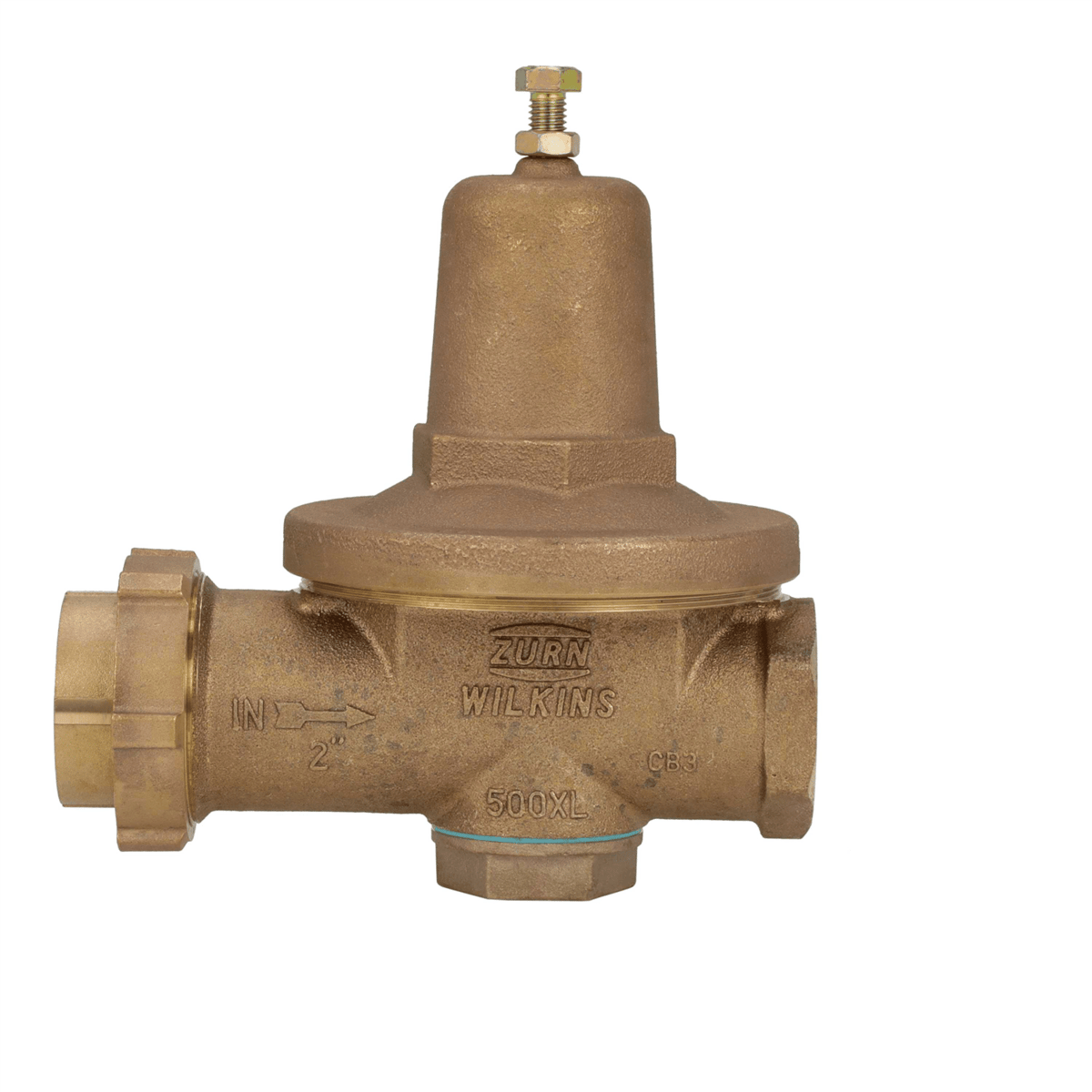

The WILKINS 2-500XL pressure reducing valve is a single union type with diaphragm actuation. Featuring a 2 inch nominal size and female threaded union end connections, it is constructed from ASTM B584 cast bronze. Designed for industrial water lines and commercial irrigation systems, it maintains a standard factory setting of 50 PSI.
- All Bronze Body and Bell Housing Provides Durability and Long Life
- Nylon Reinforced Buna-N Diaphragm
- Balanced Piston Design
Product Highlights
This lead-free pressure reducing valve has an integral bypass check valve, high flow capacity, and balanced piston design. It conforms to ASSE 1003, ANSI B1.20.1, CSA, IAPMO, FDA, NSF/ANSI 61/372, and CUPC standards.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: 2-500XL
Technical Specifications
-
Actuation Type: Diaphragm
-
Applicable Standard: ASSE 1003, ANSI B1.20.1, CSA, IAPMO, FDA, NSF/ANSI 61/372, CUPC
-
Application: Industrial Water Line, Commercial Irrigation System
-
Body Material: ASTM B584 Cast Bronze
-
End Connection: Female Threaded Union x Female Threaded Union
-
End To End Distance: 9-1/2 Inch
-
Inclusions/Features: Integral Bypass Check Valve, High Flow Capacity, Balanced Piston Design
-
Nominal Size: 2 Inch
-
Pressure Rating: 300 PSI
-
Product Sub-Type: Pressure Reducing Valve
-
Seat Material: 300 Series Stainless Steel
-
Series/Model: 500XL
-
Spring Material: ASTM A229 Steel
-
Standard Factory Setting: 50 PSI
-
Strainer Supplied: No
-
Temperature Rating: 140 Deg F
-
Type: Single Union
-
Pressure Range: 25 - 75 PSI
-
Pressure Setting: 50 PSI
-
Valve Size (IN): 2
