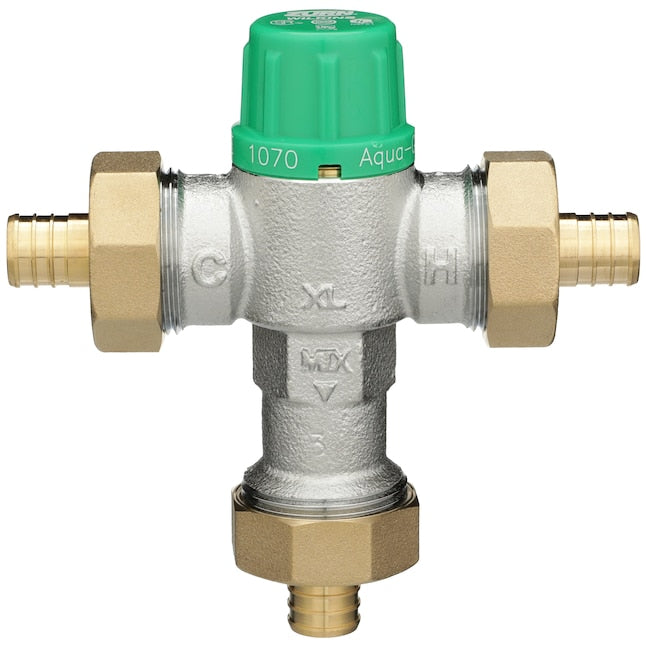

Wilkins 12-ZW1070XLPEX Aqua-Gard Thermostatic Mixing Valve 1/2 in PEX Barb

Product Description

The Wilkins 12-ZW1070XLPEX Aqua-Gard Thermostatic Mixing Valve is designed for point-of-use installation and suitable for multiple fixtures. This lead-free valve features a cast bronze body and a 1/2 in PEX barb connection. It provides protection against scalding from hot water and bacteria growth, with a rapid response rate for a safer water temperature of 95° to 115°F.

• Designed for installation at the point of use
• Suitable for multiple fixtures
• 10 gpm flow rate at 45 psi pressure loss

Product Highlights

Offers protection against scalding and bacteria, suitable for residential and light commercial use, and helps lower energy costs.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 12-ZW1070XLPEX

Technical Specifications

• Series: ZW1070XL
• Nominal Size: 1/2 in
• End Style: PEX Barb
• Pressure Rating: 145 psi
• Temperature Rating: 120 to 195 deg F Hot Supply/40 to 75 deg F Cold Supply
• Flow Capacity: 10 gpm
• Media: Water
• Inlet to Outlet Length: 5.5625 in
• Top to Inlet Center: 2.0625 in
• Body Material: Cast Bronze
• Trim Material: 300 Stainless Steel Spring
• Softgoods Material: FKM Seal/Noryl GFN2 Guide Tube
• Finish: Nickel Plated
