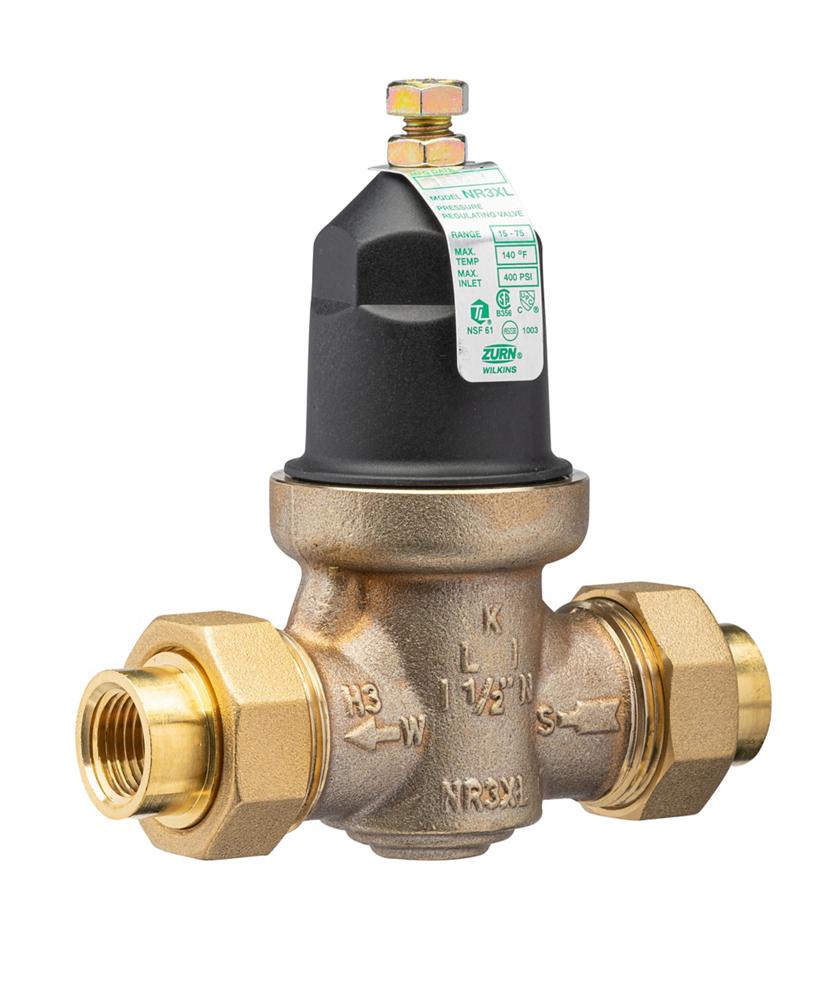

Wilkins 12-NR3XLDU Pressure Reducing Valve with Double Union 1/2 inches NR3XL

Product Description

The Wilkins 12-NR3XLDU is a lead-free water pressure reducing valve with integral by-pass check valve and strainer, designed for residential and commercial potable water systems. It features a low lead cast bronze body and stainless steel internals. The valve is suitable for installation in any position, including below-ground. Maximum working water pressure is 400 psi and maximum working water temperature is 140°F.

• Integral By-Pass & Strainer Design: Prevents excessive system pressure buildup caused by thermal expansion while capturing sediment and debris for frequent cleaning in residential and commercial water systems.
• Balance Piston Technology: Provides smooth, responsive performance to changes in system flow demand with protection from inlet pressure changes for consistent outlet pressure control.
• Lead-Free Construction: Complies with NSF/ANSI/CAN 61 with 0.25% maximum weighted average lead content, ideal for safe potable water applications.

Product Highlights

This Wilkins pressure reducing valve features bypass, strainer, and double union connections for versatile use in potable water systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 12-NR3XLDU
• Country of Origin: United States

Technical Specifications

• Brand: Zurn
• Type: Pressure Reducing Valve
• Shape: Tee
• UPC: n/a
• Country of Origin: United States
• Size: 1/2 Inches
• Maximum Working Water Pressure: 400 psi
• Maximum Working Water Temperature: 140°F
• Notable Certifications: ASSE 1003, IAPMO, CSA
• Connection Type: Double Union FNPT
• Main valve body: Low Lead Cast Bronze ASTM B 584
• Bell housing: UV resistant polymer composite
• Internals: 300 Series Stainless Steel
• Stem: Low Lead Brass
• Elastomers: Buna nitrile (FDA approved)
• Cartridge: Delrin™
• Springs: 302 Stainless Steel
• Strainer screen: 300 Series Stainless Steel
• Reduced Pressure Range: 15 to 75 psi
• Factory Preset Pressure: 50 psi
• Body Material: Low Lead Cast Bronze ASTM B 584
• Bell Housing Material: UV Resistant Polymer Composite
• Internal Components: 300 Series Stainless Steel
• Strainer Screen: 300 Series Stainless Steel, 20 mesh
• Threaded Connection Standard: ANSI B1.20.1
