Product Description

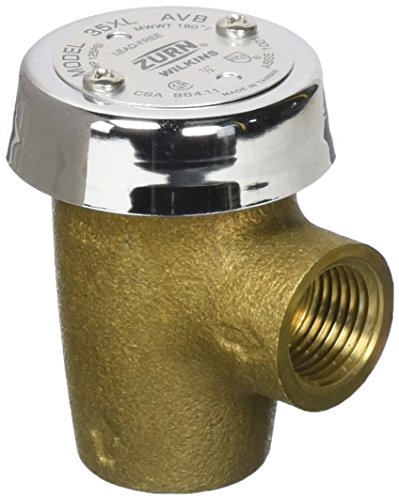

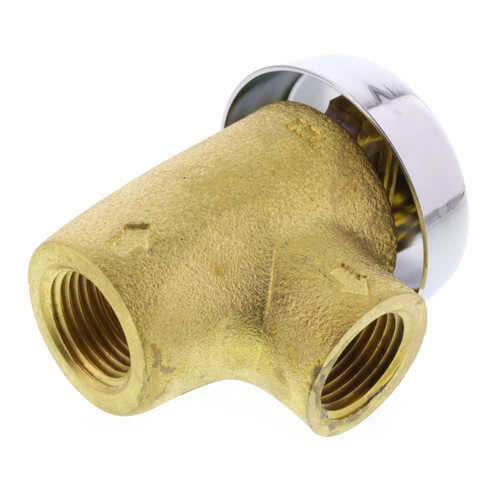

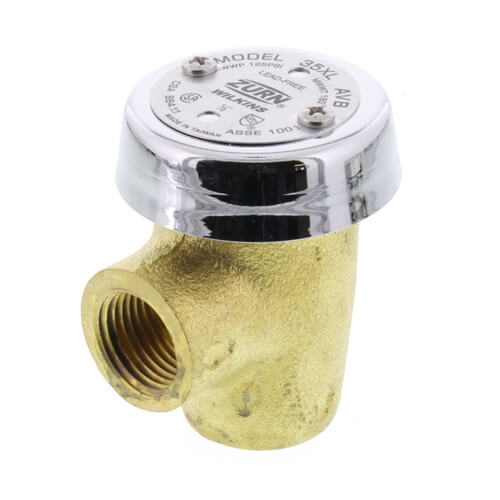

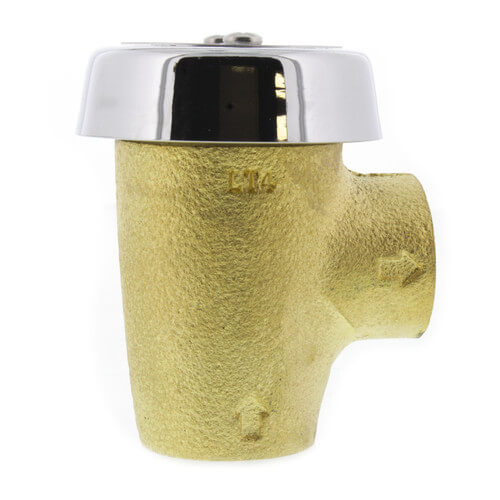

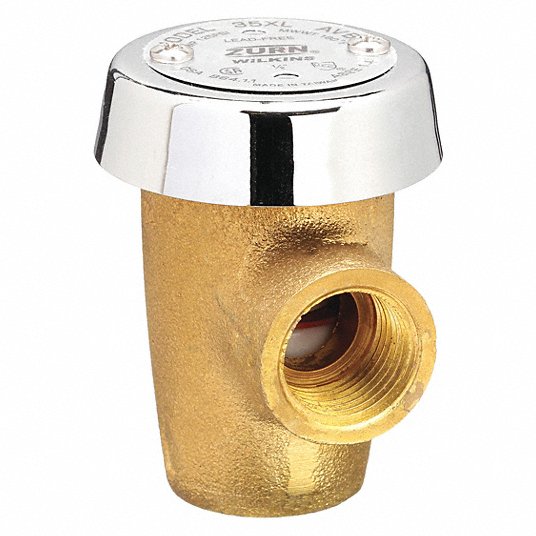

The Wilkins 12-35XL Fnpt X Fnpt Atmospheric Vacuum Breaker is ideal for use where lead-free valves are required. Designed for installation on potable water lines, it protects against backsiphonage of contaminated water into the potable water supply. The assembly provides protection where a potential health hazard exists.
- Atmospheric vacuum breaker
- Ideal for use where lead-free valves are required
- Assembly shall provide protection where a potential health hazard exists
Product Highlights
This atmospheric vacuum breaker is designed to prevent contaminants from traveling backward into the water supply.
Product Information
Standard Information
-
Brand: WILKINS
-
Manufacturer Part Number: 12-35XL
-
Country of Origin: Taiwan
Technical Specifications
-
Brand: Wilkins
-
Manufacturer: Wilkins
-
Model / MPN: 12-35XL
-
Size: 1/2"
-
Max Pressure (PSI): 125
-
Max Temp (F): 180°F
-
Application: Plumbing
-
Material: Cast Brass
-
Height: 2-1/2"
-
Connection Type: Female Threaded
-
Lead Free: Yes
-
Body Material: Cast Bronze
-
Domestic / Import: Domestic
-
Nominal Size: 1/2 in
-
Pressure Rating: 125 psi
-
Temperature Rating: 180 deg F
-
Type: Anti-Siphon Atmospheric
-
Valve Series: 35XL
-
Connection Type - Side 1: NPT
-
Connection Type - Side 2: NPT
-
Body Finish: Rough Brass
-
For Media: Water
-
Media Temp. Range: 180 °F
-
Max. Pressure (CWP): 125 psi
-
Standards: ASSE Listed 1001; CSA; IAPMO; NSF/ANSI 372
-
Protection Type: Back-Siphonage
-
Spring Material: Bronze
-
Pipe Size: 1/2 in
-
Overall Length: 2.5 in
-
Flow Rate: 14.5 gpm
-
Connection Size - Side 1: 1/2 in
-
Connection Gender - Side 1: Female
-
Connection Size - Side 2: 1/2 in
-
Connection Gender - Side 2: Female
-
Includes Atmospheric Vent: Atmospheric Vent Included
-
Max. Media Temperature: 180 °F
-
Seal Material: Buna-N
-
Hazard Protection Level: High Health Hazard
-
Vacuum Breaker Style: Atmospheric Vacuum Breaker
-
Freeze Protection: No
-
NSF Standards: NSF/ANSI 372
-
Finished: Rough Brass
-
Body: Rough Brass Finished Bronze
-
UNSPSC: 39121548
