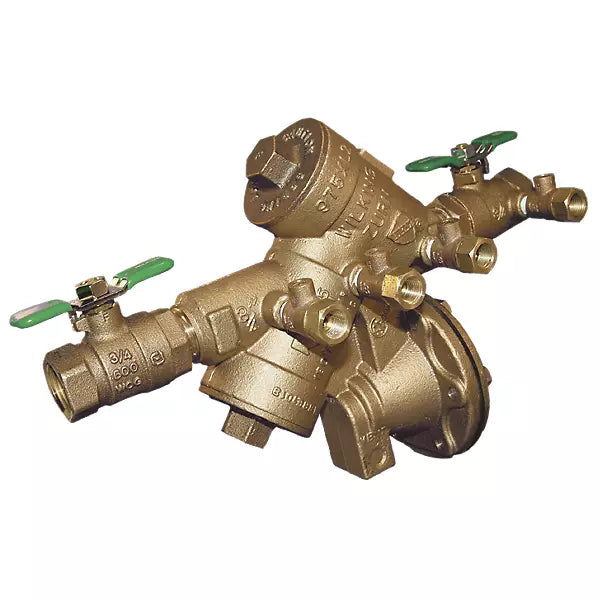

Wilkins 114-975XL2U 975XL2U Reduced Pressure Principle Assembly with Union Ball Valves

Product Description

The Wilkins 114-975XL2U Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. This backflow preventer features a wye pattern, bronze body, and is assembled with union ball valve shutoffs. The 1-1/4" size is commonly specified for mid-size commercial systems, offering reliable protection where water safety is critical.

• Unions between body an shut-off valves allows body to easily be removed from the line
• Well suited to irrigation applications that require removal of the valve during the winter months
• Low-lead law compliant

Product Highlights

Compact and lead-free, this backflow preventer is designed with a wye-pattern body and union ball valves for simplified installation and maintenance.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 114-975XL2U

Technical Specifications

• Model: 114-975XL2U
• Size: 1-1/4"
• Max Pressure: 175 PSI
• Max Temperature: 180°F
• Test Pressure: 350 PSI
• Materials: Bronze body, Noryl™ internals, stainless steel springs
• Standards: ASSE® 1013, CSA® B64.4, AWWA C511
