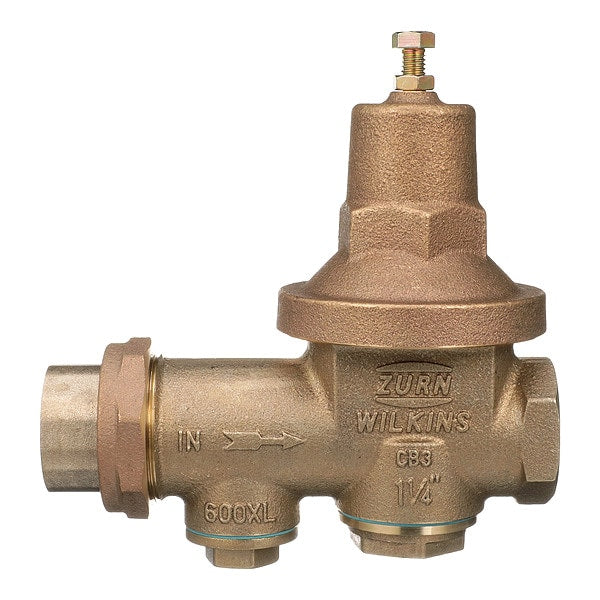

WILKINS 114-600XLHR 600XL Pressure Reducing Valve 1-1/4 in

Product Description

The WILKINS 114-600XLHR 600XL Pressure Reducing Valve is essential for managing water pressure in various applications. This valve serves to protect plumbing systems from pressure fluctuations, making it suitable for both residential and commercial uses. It is crafted with a separate strainer cap, allowing for straightforward cleaning. The valve is factory set to 50 PSI and can adjust between 10 PSI to 125 PSI for optimal functionality.

• Durable construction for long-lasting use
• Easy installation with fiber union gasket
• Separate strainer cap for easy maintenance

Product Highlights

This pressure reducing valve ensures reliable performance in various conditions while preventing debris accumulation.

Product Information

Standard Information

• Brand: WILKINS
• MPN: 114-600XLHR

Technical Specifications

• Size: 1 1/4 inches
• Type: Pressure Reducing Valve
• Connection: FNPT Union x FNPT
• Material: Lead-Free
• Body Material: Cast Bronze
• Domestic/Import: Import
• End Style: FNPT Union x FNPT
• Inlet to Outlet Length: 7-1/8 inches
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Range: 300 psi
• Series: 600XL
• Softgoods Material: Buna Nitrile/EPDM Elastomers/Natural Vulcanized Fiber/Acetal (Delrin) Cap Gasket
• Temperature Rating: 140 degrees F
• Trim Material: 300 Stainless Steel Seat
