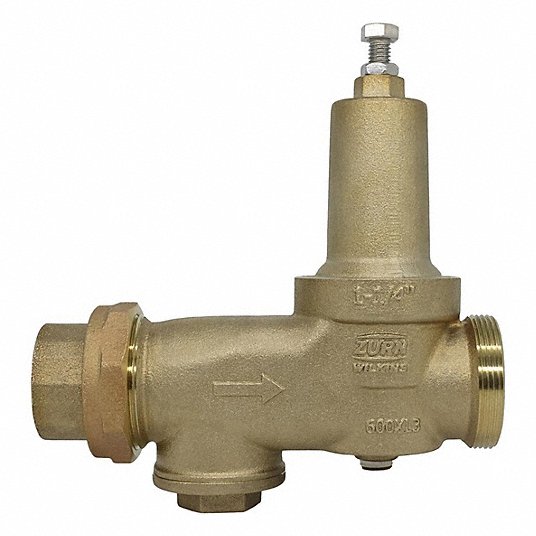

Wilkins 114-600XL3HR Pressure Reducing Valve: FNPT x FNPT, 1 1/4 in Pipe Size, 60 psi to 125 psi

Product Description

The WILKINS 114-600XL3HR pressure reducing valve controls incoming water pressure to set levels, protecting plumbing systems and reducing water consumption in light commercial and residential applications. It features an integral strainer that provides easy accessibility for inline servicing in tight spaces. The valve is made of brass and has a pressure adjustment range of 60 psi to 125 psi.

• Controls incoming water pressure
• Protects plumbing systems
• Reduces water consumption
• Integral strainer for easy servicing

Product Highlights

The WILKINS pressure reducing valve is ideal for light commercial and residential applications, offering reliable water pressure control and system protection.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 114-600XL3HR
• Country of Origin: USA

Technical Specifications

• Brand: WILKINS
• For Media: Water
• Application: Light Commercial Use; Residential
• Use: Connections
• Inlet Connection Size: 1-1/4 in
• Outlet Connection Size: 1-1/4 in
• Body Material: Brass
• Pressure Adjustment Range: 60 psi to 125 psi
• Operating Pressure Range: 60 psi to 400 psi
• Max. Operating Temperature: 140 °F
• Factory Set Pressure: 50 psi
• Max. Continuous Flow Rate: 70 gpm
• Max. Intermittent Flow Rate: 93 gpm
• Port Design: Full
• Port: Overall Width
• Overall Width: 2-3/4 in
• Overall Height: 8-7/16 in
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61; NSF 372
• Manufacturer Part Number: 114-600XL3HR
