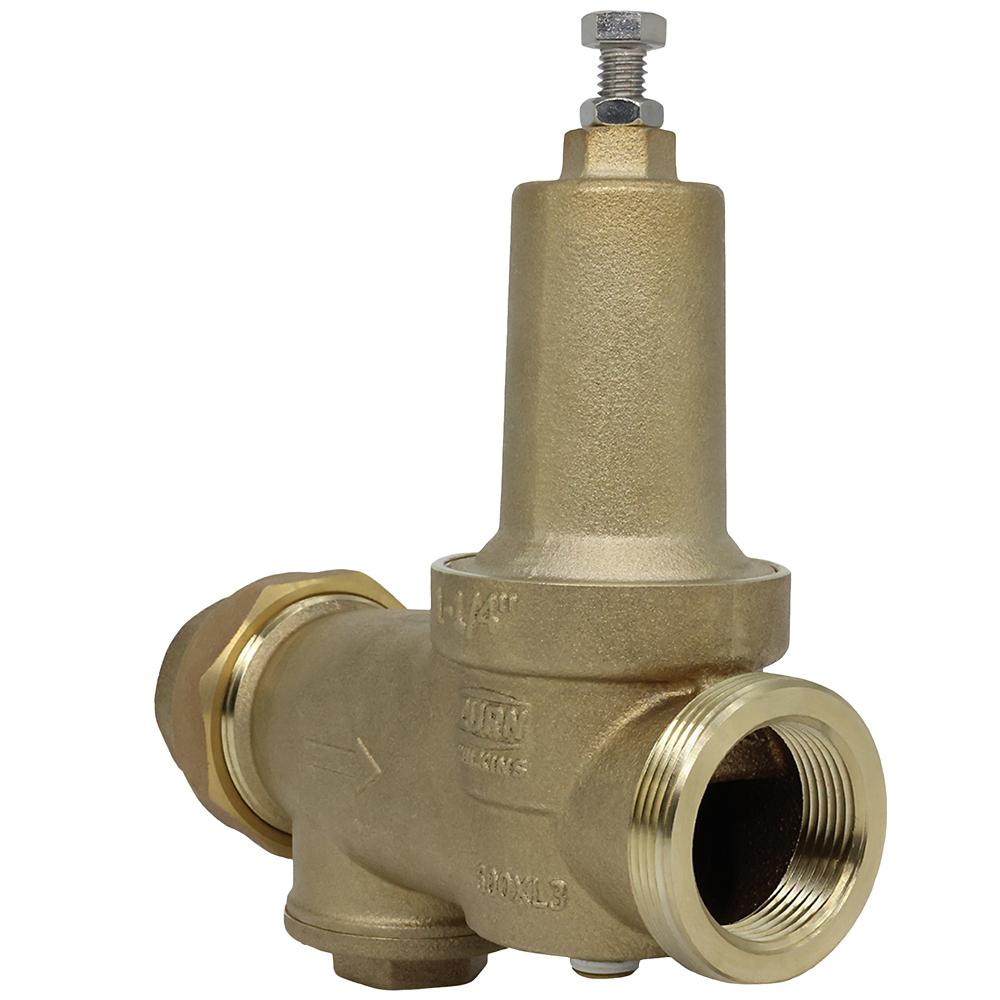

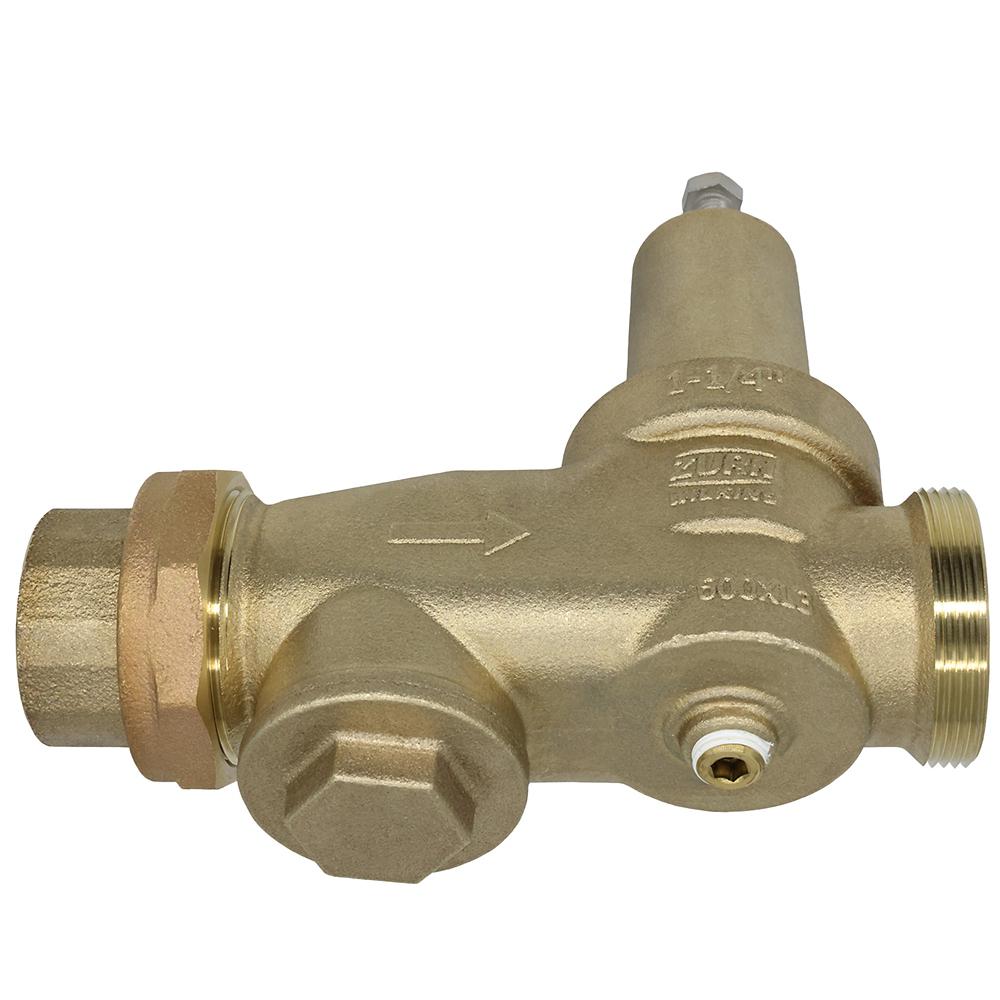

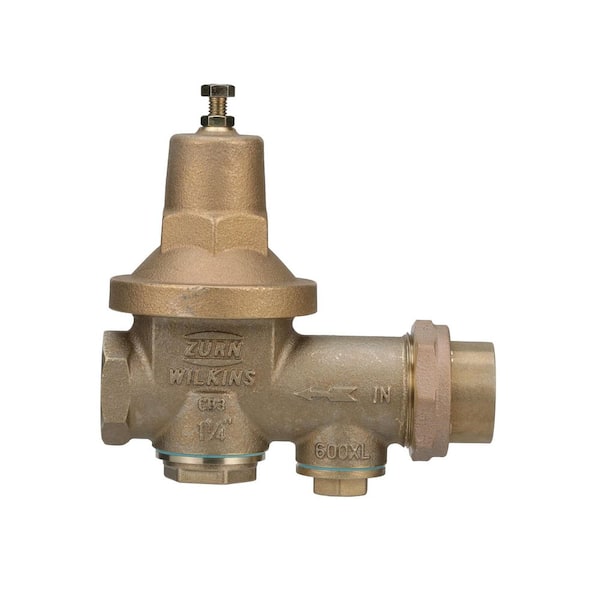

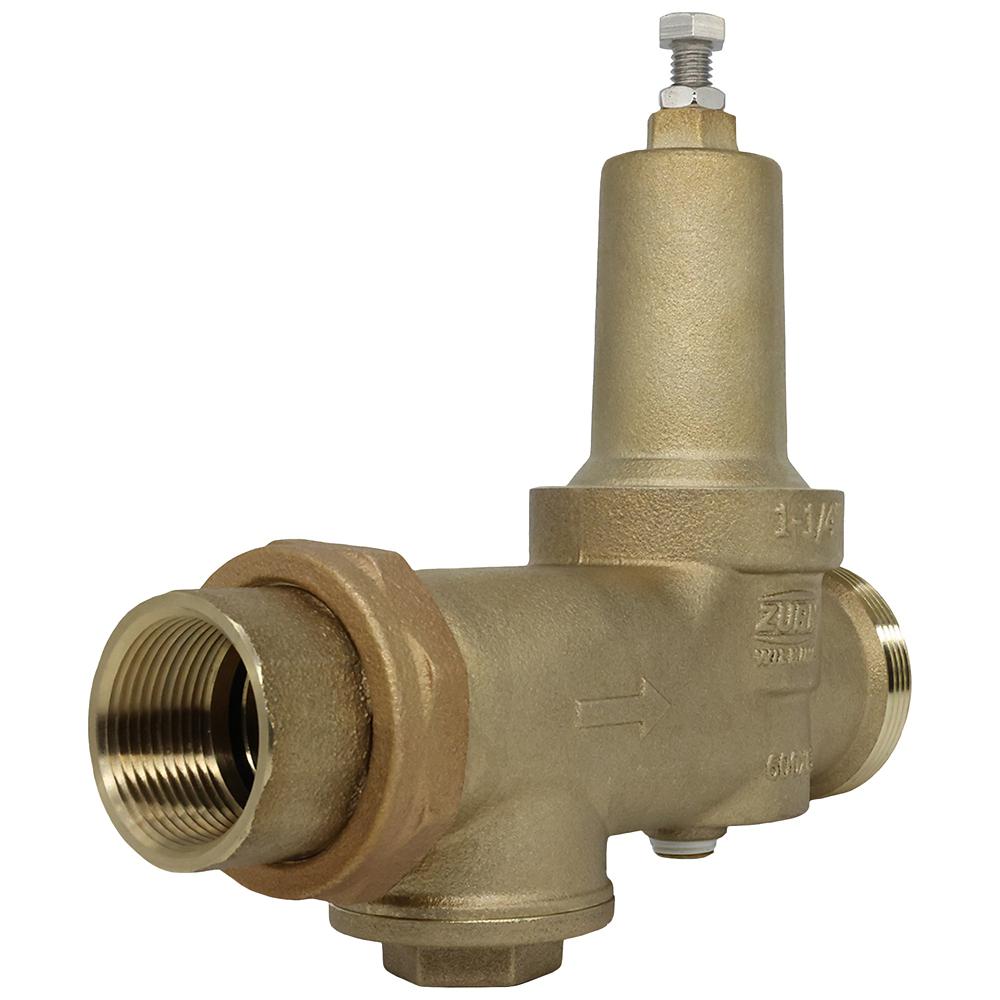

Wilkins 114-600XL3 Pressure Reducing Valve 1-1/4 in 15-75 PSI

Product Description

The Wilkins 114-600XL3 pressure reducing valve with integral strainer is designed for residential and light commercial water lines, providing high-flow rate capacity and low-pressure falloff. The patented venturi technology ensures the valve delivers best-in-class flow performance. Constructed with an all-bronze body and stainless-steel stem, this valve offers superior corrosion resistance.

• Reduces pressure loss over entire flow range, making specification and sizing easier and improving the user experience
• Standard stainless internals and sealed cage provide superior durability
• Works effectively for new and retrofit installations

Product Highlights

This valve meets the requirements of NSF/ANSI/CAN 61 and 372 and is ASSE, cUPC, and CSA certified. It is ideal for high-end residential and light commercial use.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 114-600XL3
• Country of Origin: USA

Technical Specifications

• HPS Quick Code: 123178
• MPN: 114-600XL3
• Brand: WILKINS
• For Media: Water
• Application: Light Commercial Use; Residential
• Use: Connections
• Inlet Connection Size: 1-1/4 in
• Outlet Connection Size: 1-1/4 in
• Body Material: Brass
• Stem Material: Stainless Steel
• Pressure Adjustment Range: 15 psi to 75 psi
• Operating Pressure Range: 15 psi to 400 psi
• Max. Operating Temperature: 140 °F
• Factory Set Pressure: 50 psi
• Max. Continuous Flow Rate: 70 gpm
• Max. Intermittent Flow Rate: 93 gpm
• Port Design: Full Port
• Overall Width: 2-3/4 in
• Overall Height: 8-7/16 in
• Includes Strainer: Strainer Included
• Low-Lead Compliance: Low-Lead Compliant
• NSF Certifications for Food and Drinking Water: NSF 61; NSF 372
• Standards: CSA® Certified; cUPC® Listed; is ASSE® Listed; NSF/ANSI/CAN 61 and 372
• Size: 1 1/4 Inches
• Maximum Working Water Pressure: 400 psi
• Maximum Working Water Temperature: 140°F (60°C)
• Notable Certifications: ASSE 1003, cUPC, CSA B356
• Connection Type: Single Union FNPT Inlet x FNPT Outlet
• Valve Type: Water Pressure Reducing Valve with Integral Strainer
• Size Inches (mm): 1 1/4 Inches (32mm)
• Thread Standard: ANSI B1.20.1
• Reduced Pressure Range: 15 psi to 75 psi
• Factory Preset Pressure: 50 psi
• Design: Balanced piston design with removable cartridge
• Strainer Screen Material: 300 Series Stainless Steel
• Elastomers: Buna Nitrile and EPDM (FDA approved)
• Certifications: ASSE Listed 1003, cUPC Listed, CSA Certified B356, NSF/ANSI/CAN 61 & 372
• Inlet Diameter (In.): 1-1/4
