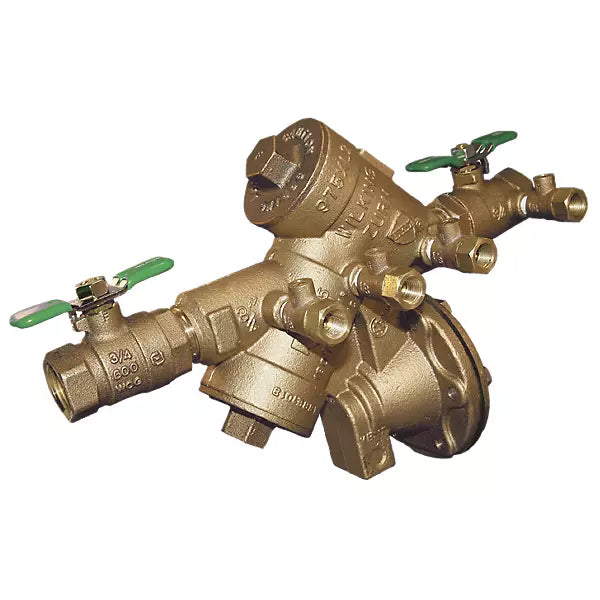

Wilkins 1-975XL2U 975xl2u reduced pressure principle assembly with union ball valves

Product Description

The Wilkins 1-975XL2U Reduced Pressure Principle Backflow Preventer provides high hazard protection for potable water applications. This wye pattern, bronze body backflow preventer is assembled with union ball valve shutoffs. Features a straight valve configuration, a 1-inch nominal size, and female threaded end connections. It has a flow rate of 40 GPM and is suitable for health hazard and potable water systems.

• Unions between body an shut-off valves allows body to easily be removed from the line
• Well suited to irrigation applications that require removal of the valve during the winter months
• Low-lead law compliant

Product Highlights

The Wilkins 1-975XL2U backflow preventer offers reliable protection with union ball valves for easy maintenance and is ideal for irrigation systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 1-975XL2U
• Country of Origin: United States

Technical Specifications

• Applicable Standard: ASSE 1013, ANSI B1.20.1, AWWA C511, IAPMO, NSF/ANSI 372, CUPC, CSA
• Application: Health Hazard, Potable Water System
• Body Material: ASTM B584 Cast Bronze
• Disc/Poppet Material: Silicone
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 14-1/4 Inch
• Flow Rate: 40 GPM
• Inclusions/Features: Full Port 1/4 Turn Union Ball Valve
• Nominal Size: 1 Inch
• Pressure Rating: 175 PSI
• Seal Material: Buna-N, Silicone
• Spring Material: 300 Stainless Steel
• Temperature Rating: 180 Deg F
• Type: Reduced Pressure Assembly
• Valve Configuration: Straight
• Brand: Zurn Wilkins
• MPN: 1-975XL2U
• Country of Origin: United States
