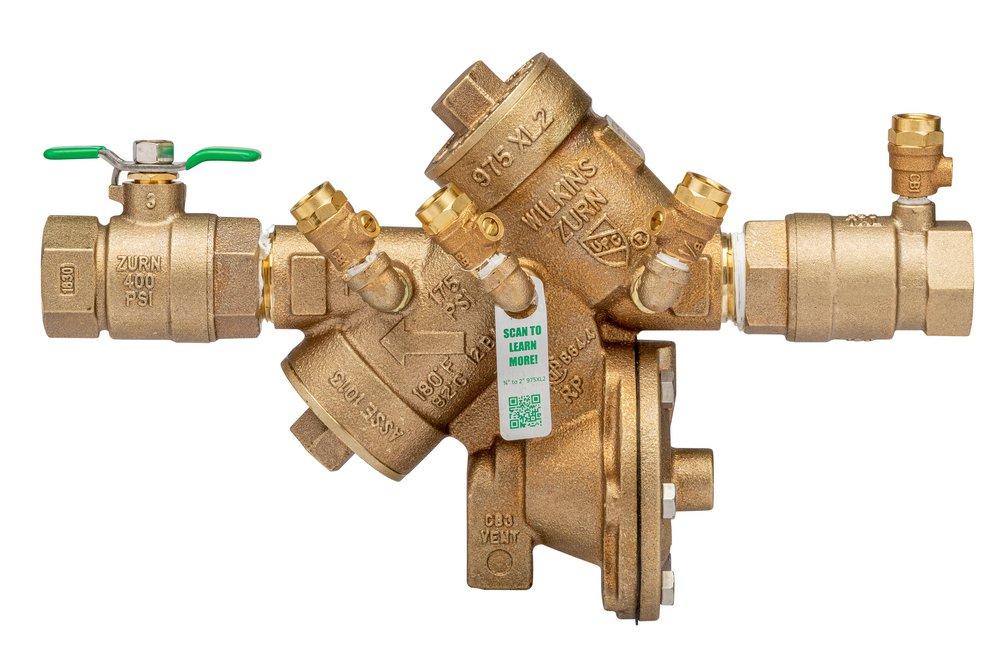

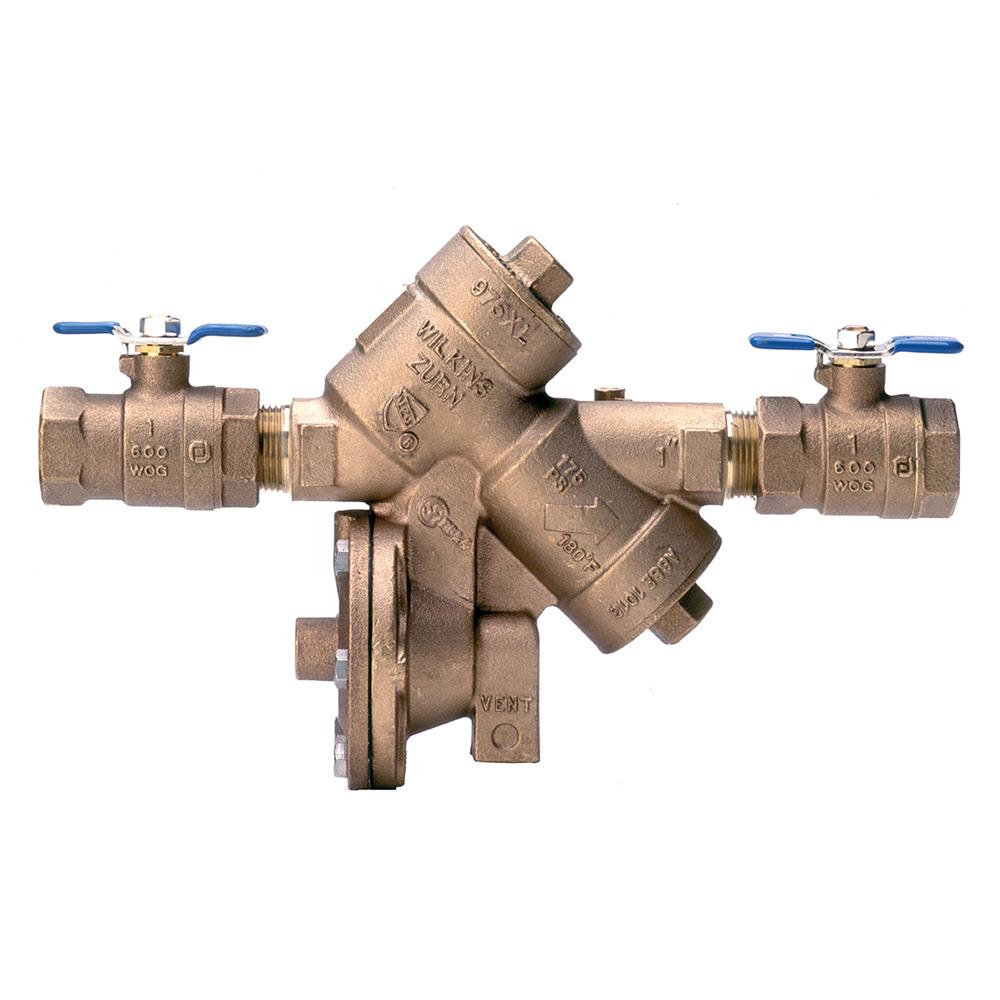

Wilkins 1-975XL2TCU Reduced Pressure Backflow Assembly 1 Inch

Product Description

The Wilkins 1-975XL2TCU is a reduced pressure principle backflow preventer designed to protect potable water supplies from contamination by backsiphonage and backpressure where health hazards exist. It is made with low lead cast bronze meeting NSF/ANSI/CAN 61 and 372 standards.

• Health Hazard Protection: Protects against both backsiphonage and backpressure of contaminated water into potable water supply.
• Lead-Free Construction: Made with low lead cast bronze meeting NSF/ANSI/CAN 61 and 372 standards for safe potable water applications.
• Easy Maintenance Access: First and second checks accessible for maintenance without removing relief valve or entire device from the line.

Product Highlights

This backflow preventer features full port QT ball valves and test cocks up configuration for simplified testing and service. Its notable certifications include ASSE 1013, cUPC, and CSA B64.4.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 1-975XL2TCU

Technical Specifications

• Manufacturer (Brand): Wilkins
• Manufacturer Item Number: 1-975XL2TCU
• UPC: 612052097022
• Package Quantity: Each
• Reduced Pressure: Feature
• Genuine OEM: Feature
• Valve Size: 1 Inch
• Model Number: 975XL
• Size: 1 Inches
• Maximum Working Water Pressure: 175 PSI
• Maximum Working Water Temperature: 180
