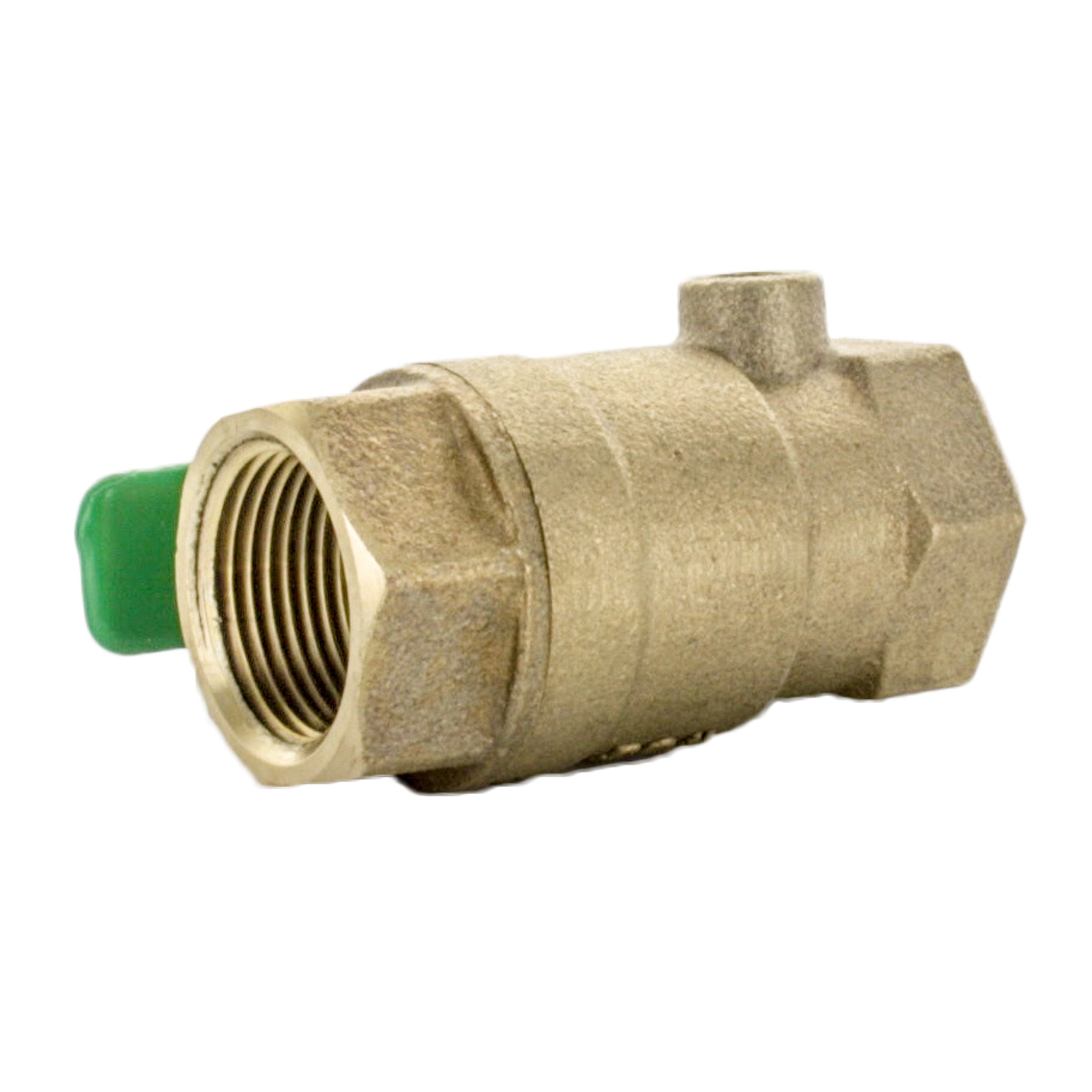

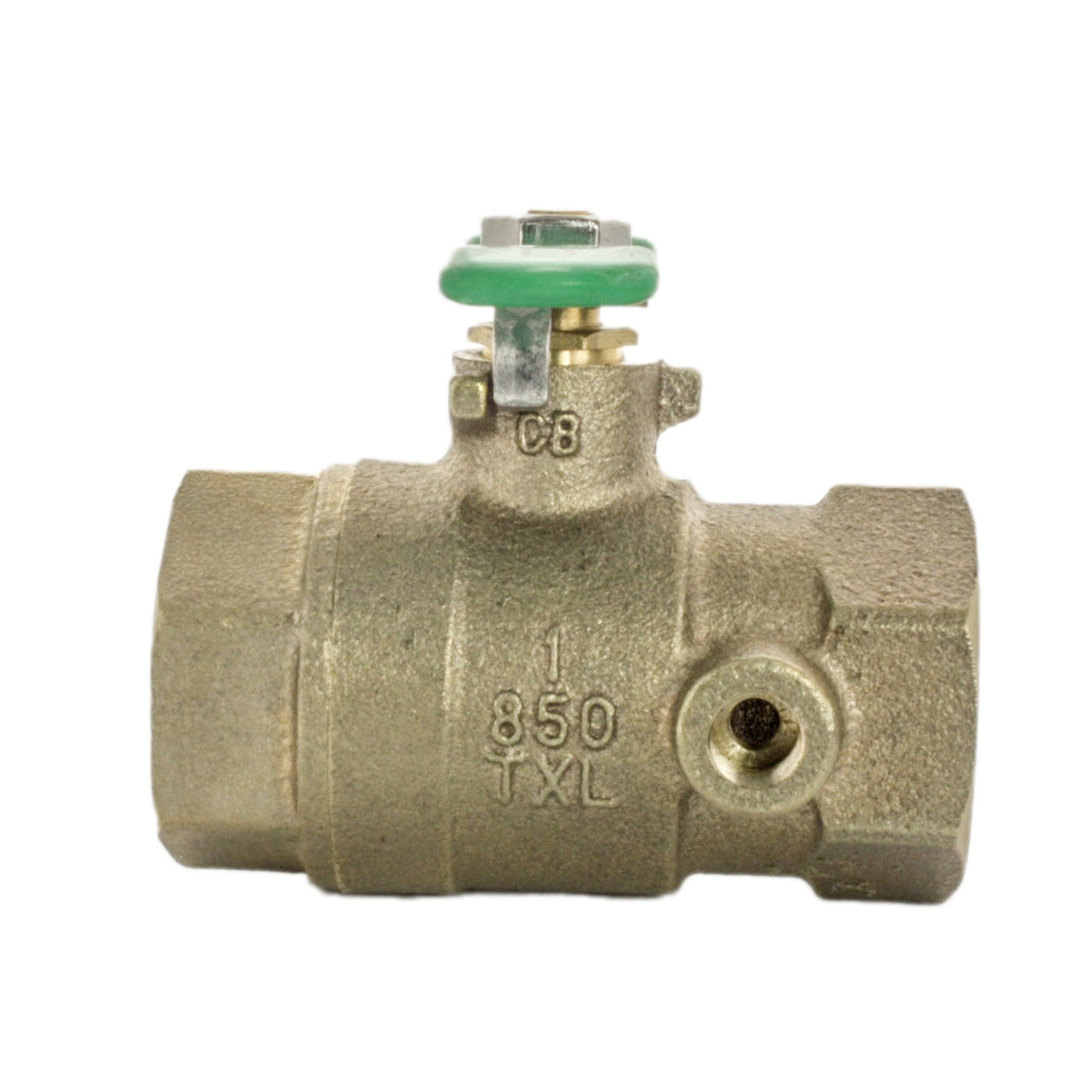

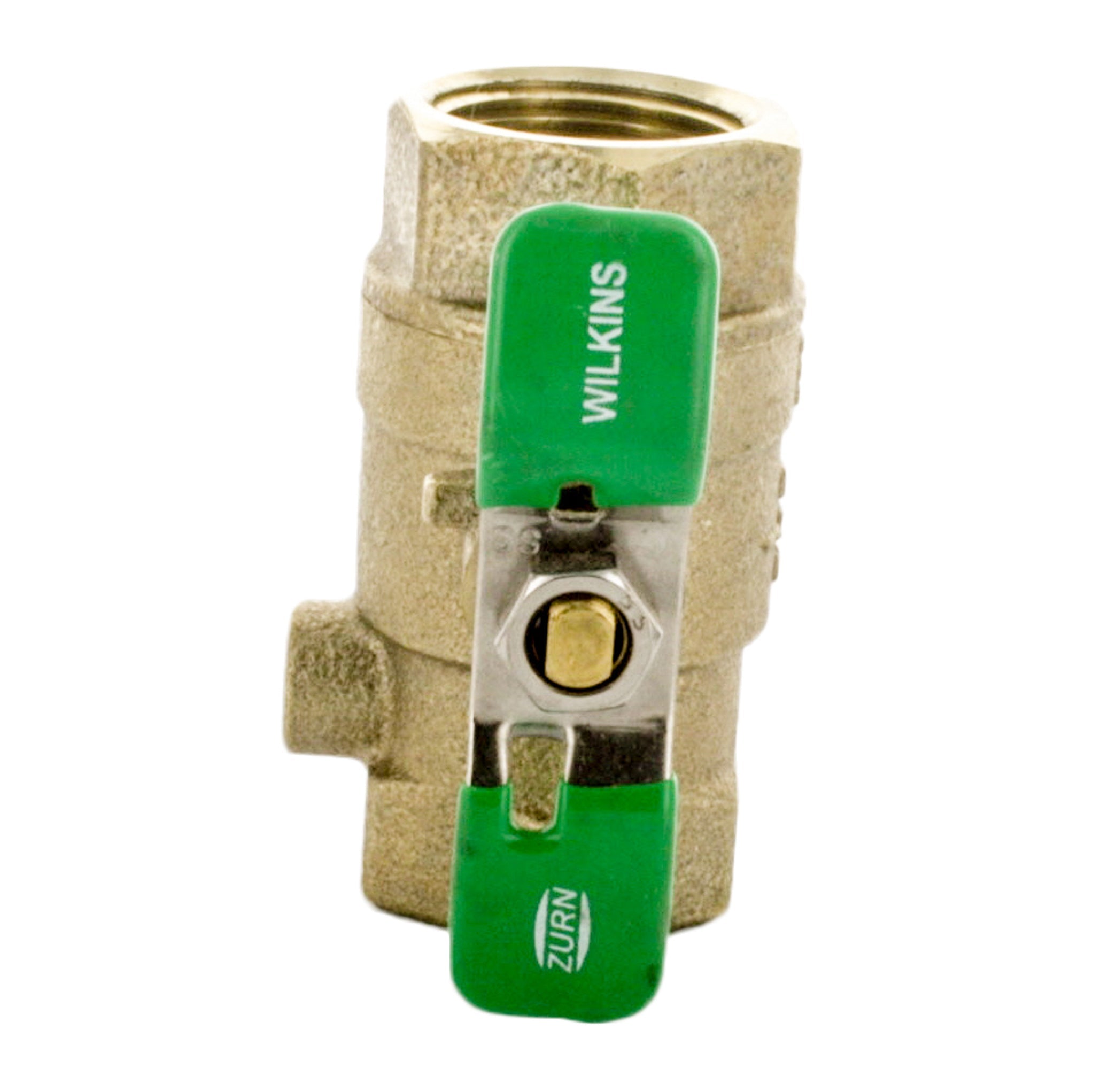

Wilkins 1-850TXL 1 in. Lead-Free Bronze FNPT x FNPT Tapped Full Port Ball Valve

Product Description

The WILKINS 1-850TXL 1 inch full-port tapped ball valve provides lead-free shutoff and flow control. Constructed from bronze with a chrome-plated brass ball and PTFE seats, it is suitable for residential, commercial, and light industrial systems, including backflow assemblies, irrigation, and general plumbing. This quarter-turn valve balances flow and enables testing and throttling.

• Bronze frame construction for durable use
• Ideal for industrial, commercial, and residential applications
• Perfect for balancing and throttling installations

Product Highlights

Lead-free full-port ball valve for reliable shutoff, flow control, balancing, and throttling in various plumbing systems.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 1-850TXL

Technical Specifications

• Size: 1 inch nominal
• Connections: FNPT x FNPT
• Design: Full-port tapped
• Body Material: Bronze
• Ball Material: Chrome-plated brass
• Stem Material: Brass
• Handle/Nut Material: Stainless steel
• Certification: NSF/ANSI 372 (Lead-Free)
• Pressure Rating: 400 PSI WOG
• Temperature Range: 33-350°F
• Suitable Media: Water, low-pressure steam, air, non-corrosive gases or oil
• Seat Material: Virgin PTFE (TFE)
• Operation: Quarter-turn
• Construction: One-piece
