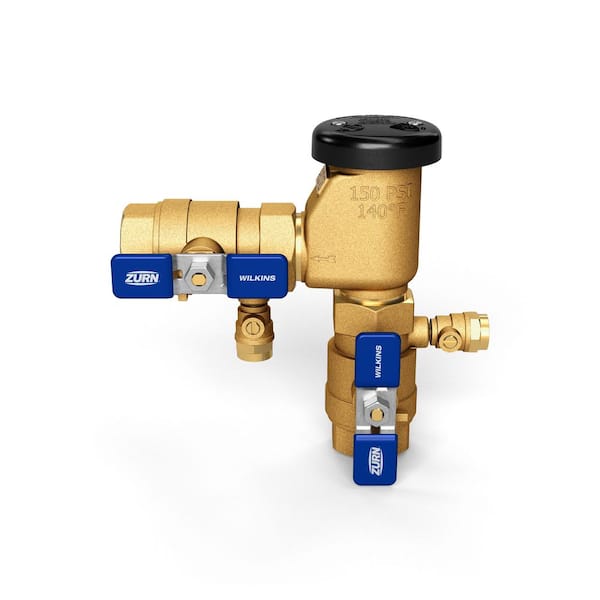

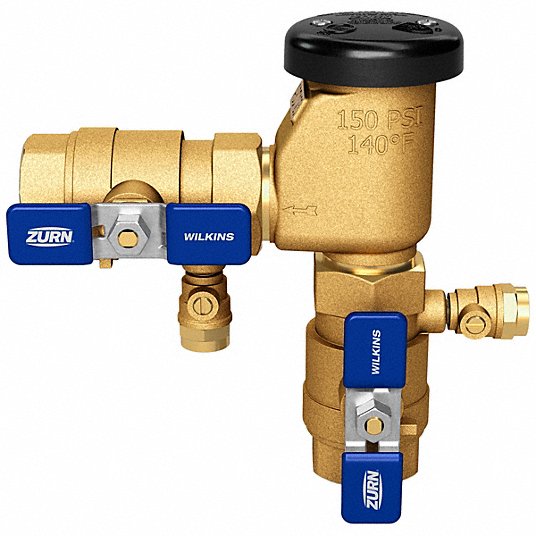

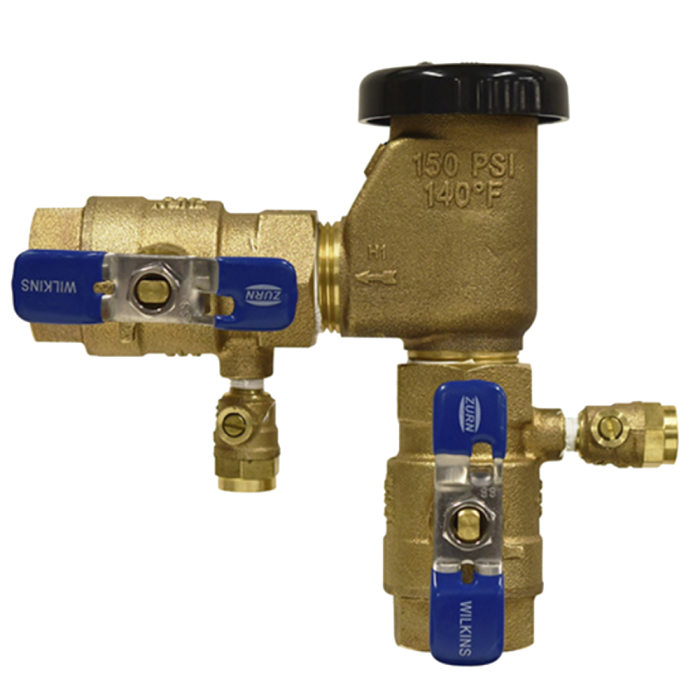

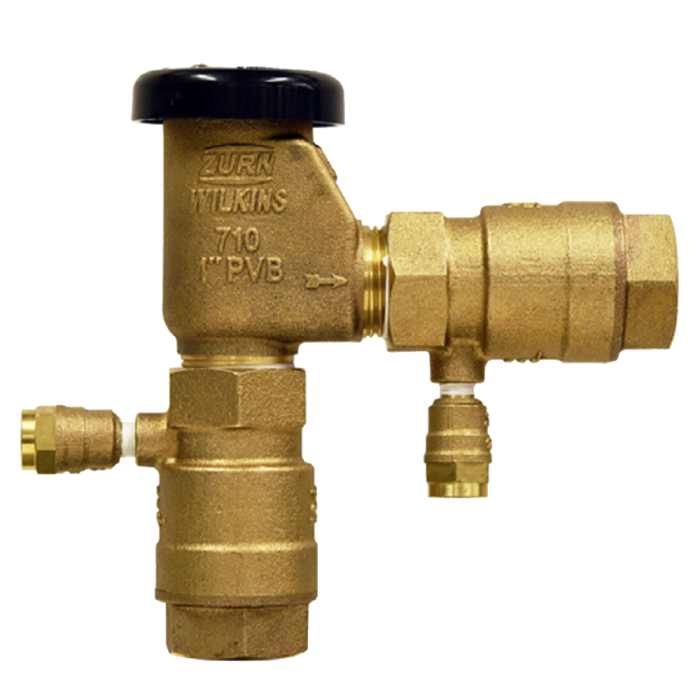

Wilkins 1-710 Pressure Vacuum Breaker Valve Assembly 1 in.

Product Description

The Wilkins 1-710 Pressure Vacuum Breaker Assembly is an economical and compact PVB suitable for residential or commercial irrigation systems. It features fewer parts and a lightweight body. It has a maximum pressure of 150 psi and a temperature range of 33°F to 140°F. Designed for installation on irrigation water lines to protect against backsiphonage.

• Lightweight and compact body construction for easy maintenance
• Perfect for use in compact spaces
• Ideal for use in high hazard applications for enhanced protection

Product Highlights

The Wilkins 710 Pressure Vacuum Breaker Assembly protects against backsiphonage of contaminated water into the potable water supply.

Product Information

Standard Information

• Brand: WILKINS
• Manufacturer Part Number: 1-710
• Country of Origin: China

Technical Specifications

• Pressure Rating: 150 PSI
• Connection Size: 1 in.
• Temperature Range: 33°F to 140°F
• Integrated Backflow Preventer: Anti-Siphon Feature
• Lead-Free: None
• Corrosion Resistance: None
• Material Composition: Bronze
• Available Sizes: 3/4" and 1"
• Brand: Wilkins
• Product Type: Pressure Vacuum Breakers (PVB)
• Connection: FPT
• Manufacturer Part Number: 1-710
• Connection Type: FNPT x FNPT
• For Media: Water
• Hazard Protection Level: High Health Hazard
• Protection Type: Back-Siphonage
• Body Material: Bronze
• Pipe Size: 1 in
• Max. Pressure (CWP): 150 psi
• Media Temp. Range: 33 °F – 140 °F
• Flow Rate: 56 gpm
• Connection Size - Side 1: 1 in
• Connection Gender - Side 1: Female
• Connection Type - Side 1: NPT
• Connection Size - Side 2: 1 in
• Connection Gender - Side 2: Female
• Connection Type - Side 2: NPT
• Min. Media Temperature: 33 °F
• Max. Media Temperature: 140 °F
• Shut-Off Valve Type: Ball Valve
• Overall Height: 6.75 in
• Seat Material: Acetal
• Includes Spill Resistance: Not Spill Resistant
• Product Configuration: Standard
• Standards: ASSE Listed 1020; IAPMO Listed
• Mounting Orientation: Horizontal
• Spring Material: Stainless Steel
• Overall Width: 7.5 in
• Handle Type: Tee
• Valve Series: 710
• Fits: 1 inch inner diameter pipe
