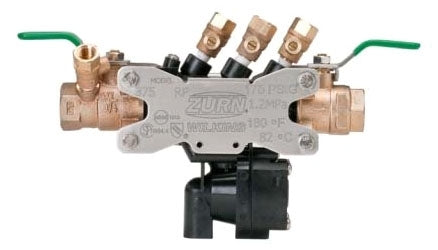

Wilkins 1-375XL Backflow Preventer 1 Inch Replacement MPN

Product Description

The Wilkins 1-375XL is a backflow preventer designed to protect potable water systems from potential contamination. This model features a reduced pressure principle assembly, ensuring reliable operation. The nominal size of the unit is one inch, with female threaded connections for easy installation.

• Backflow Preventer designed for health hazard applications
• Temperature rating of one hundred eighty degrees Fahrenheit
• Lead-free construction for safe use in potable water systems

Product Highlights

The Wilkins 1-375XL features a durable reinforced nylon body and is made with lead-free materials. Its compact design allows for installation in tight spaces. The EZSwap pressure vessel enables quick removal for flushing, saving time during maintenance.

Product Information

Standard Information

• Manufacturer: Wilkins
• UPC: 612052088513

Technical Specifications

• Type: Reduced Pressure Principle Assembly
• Nominal Size: 1 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 14-9/16 Inch
• Body Material: Reinforced Nylon
• Disc/Poppet Material: Silicone
• Spring Material: 300 Series Stainless Steel
• Seal Material: Silicone/Buna N
• Temperature Rating: 180 Deg F
• Pressure Rating: 175 PSI
• Application: Health Hazard, Potable Water System
• Applicable Standard: ASSE 1013, AWWA C511, ANSI B1.20.1, CSA B64.4, IAPMO, FDA, NSF/ANSI 61, CUPC
• Hydrostatic Test Pressure Rating: 350 PSI
