Wilkins 1-350XL Backflow Preventer 1 Inch Replacement MPN 1-350XL

Product Description

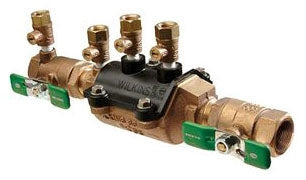

The Wilkins 1-350XL is a backflow preventer designed to prevent pollution of potable water systems. This double check valve assembly is suitable for installation in systems requiring a reliable and lead-free solution.

• Backflow preventer with double check valve assembly
• Designed for potable water applications
• Lead-free construction for safety

Product Highlights

This unit offers protection against both backsiphonage and backpressure in potable water systems. It features female threaded connections for easy installation.

Product Information

Standard Information

• Manufacturer: Wilkins
• UPC: 612052087189

Technical Specifications

• Applicable Standard: ANSI B1.20.1, ASSE 1015, CUPC, IAPMO, CSA, FDA, AWWA C510, NSF/ANSI 61
• Application: Potable Water
• Nominal Size: 1 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 12-1/4 Inch
• Body Material: ASTM B584 Cast Bronze
• Spring Material: 300 Series Stainless Steel
• Flow Rate: 40 GPM (Schedule 40 Pipe)
• Temperature Rating: 180 Deg F
• Pressure Rating: 175 PSI
• Inclusions/Features: Cast Bronze Full Port QT Ball Valve, Reinforced Nylon Housing, 200 Series Stainless Steel Handle
