Product Description

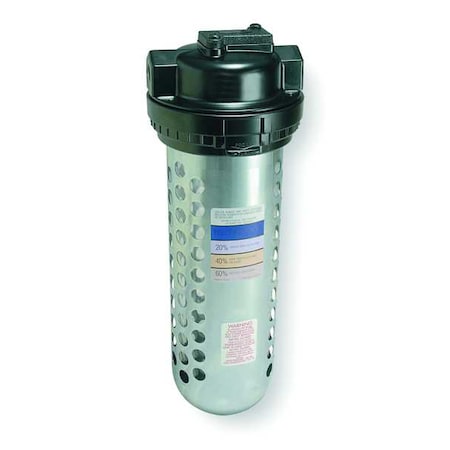

Wilkerson X03-02-000 Desiccant Dryer efficiently removes moisture from air systems, ideal for applications requiring extremely dry air such as paint spray setups and laboratory instruments. Manufactured in the United States, this dryer offers robust zinc construction and features a polycarbonate bowl with a capacity of 1.75 lb.
- Maximum flow rate of 10 cubic feet per minute at 100 psi
- Operational up to 150 psi with a maximum temperature of 125 degrees Fahrenheit
- Includes bowl guard made of aluminum for enhanced durability
Product Highlights
Equipped with silica gel that achieves a dew point as low as -40 degrees Fahrenheit. Suitable for small control air systems and other critical applications.
Product Information
Standard Information
-
Package Quantity: 1
-
Bowl Material: Polycarbonate
Technical Specifications
-
Flow Rate at 100 PSI: 10 cfm
-
Dew Point: -40 degrees Fahrenheit
-
Material: Zinc and Aluminum
-
Dimensions (Inches): Length 13 5/8, Width 4 13/16, Height 13 7/8
-
Air Inlet/Outlet Size: 1/4 in NPT
-
ISO Class: 2
