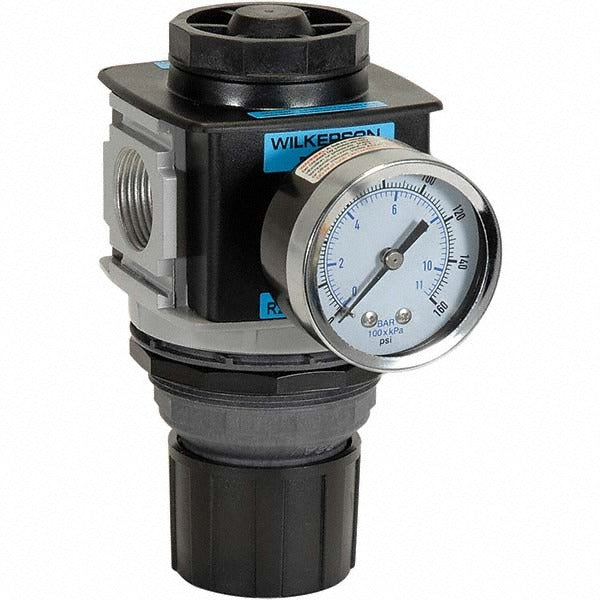

Wilkerson R28-06-F0G0B Air Regulator 3/4 Npt 300 Psi

Product Description

The WILKERSON R28-06-F0G0B is a standard compressed air regulator designed to control downstream pressure in pneumatic systems. Built from aluminum die cast construction, it accepts supply pressures up to 300 psi and delivers a regulated output range of 0 to 125 psi. With a maximum air flow of 233 CFM through a 3/4 inch NPT port, this regulator suits high-demand industrial and commercial compressed air lines. It includes an integrated pressure gauge and a relief function to vent excess downstream pressure. Pneumatic technicians, maintenance mechanics, and industrial tradespeople install this unit as part of a filter-regulator-lubricator (FRL) assembly or as a standalone pressure regulation point.

The R28-06-F0G0B belongs to the Wilkerson Series 28 modular product line. Its modular connection design allows it to be paired with compatible Series 28 filters, lubricators, and accessory modules without additional fittings between units. Typical applications include compressed air supply lines in manufacturing facilities, automated assembly equipment, pneumatic tool stations, and process air systems requiring consistent regulated pressure. The regulator handles compressed air service and is rated for operation down to -13 degrees F, making it suitable for unheated industrial environments.

Key Features

• 3/4 inch NPT end connections for direct inline installation on standard compressed air piping
• 0 to 125 psi output range with 300 psi maximum supply pressure
• 233 CFM maximum air flow supports high-volume pneumatic demand
• Integrated pressure gauge with 1/4 inch gauge port thread for monitoring downstream pressure
• Built-in relief function vents excess downstream pressure automatically
• Modular connection compatible with Wilkerson Series 28 FRL components
• Aluminum die cast body for lightweight, corrosion-resistant construction

Compatibility

Designed for use with compressed air systems requiring 3/4 inch NPT inline pressure regulation. Compatible with Wilkerson Series 28 modular FRL components via the integrated modular connection interface.

Installation Notes

Installation should be performed by a qualified pneumatic or mechanical technician. Isolate and depressurize the air supply line completely before removing or installing any regulator. Verify that upstream supply pressure does not exceed 300 psi and that downstream components are rated for the regulated output pressure. Follow applicable OSHA and local compressed air safety codes when working on pressurized systems.
