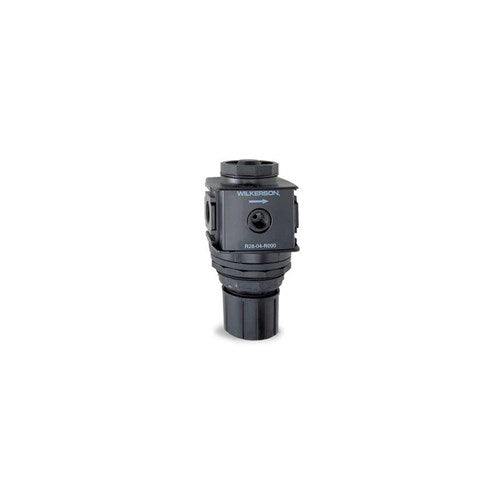

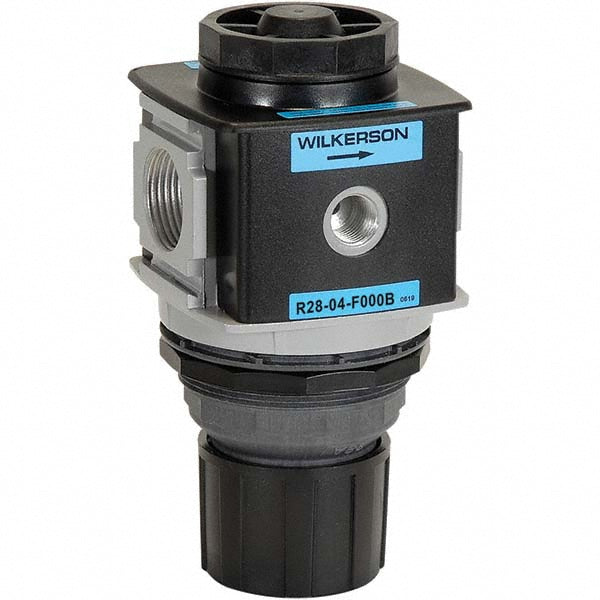

WILKERSON R28-04-F000B Compressed Air Regulator 1/2 NPT

Product Description

The Wilkerson R28-04-F000B compressed air regulator has a 1/2 NPT port size. It can handle a maximum supply pressure of 300 psi and provides a maximum air flow of 233 CFM. This regulator is engineered with a balanced valve and a spring-loaded diaphragm, suitable for applications requiring compressed air with a pressure range from 0 to 125 PSIG.

• Balanced Valve Design for efficiency
• Spring-loaded Diaphragm for stable performance
• Two Gauge Ports for monitoring

Product Highlights

This regulator is versatile, featuring a modular connection and relieving function, perfect for various compressed air applications.

Product Information

Standard Information

• Regulator Type: Standard Regulator
• Port Size: 1/2

Technical Specifications

• Range: 0 to 125 PSIG
• Maximum Air Flow: 233 CFM
• Maximum Supply Pressure: 300 psi
• Overall Height: 5.870 inches
• Overall Width: 2.870 inches
• Fluid Type: Compressed Air
• Material: Aluminum Die Cast
• Adjustable Pressure: 5 to 125 psig
• Operating Temperature: -13 to 150 °F
