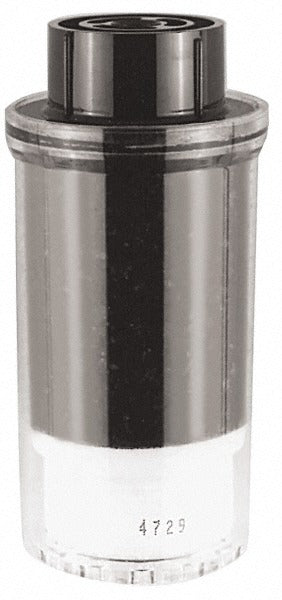

Wilkerson MXP-95-537 Carbon Adsorber Element 0.003 Micron

Product Description

The WILKERSON MXP-95-537 is an activated carbon adsorber element rated at 0.003 micron, designed to remove oil vapor, hydrocarbon vapors, and odors from compressed air lines. It installs inside the Wilkerson M21 adsorber filter housing and is a direct replacement element for that unit. The activated carbon media provides adsorption-based filtration, which complements mechanical particulate filters and coalescing elements in a multi-stage compressed air treatment system. This element is suited for applications where air purity is critical, including instrumentation, spray finishing, food processing, and breathing air systems. Installation is performed by qualified compressed air system technicians or pipefitters.

The MXP-95-537 is intended for use in compressed air treatment systems wherever the M21 adsorber filter housing is installed. It is commonly deployed in industrial and commercial facilities requiring clean, dry, oil-free compressed air downstream of a compressor and dryer. Typical installations include point-of-use filtration stations and centralized air treatment panels. This element handles demanding environments where residual hydrocarbon contamination must be reduced to protect downstream equipment, processes, or end users.

Key Features

• 0.003 micron rating for effective removal of oil vapor and hydrocarbon contaminants
• Activated carbon media provides adsorption-based filtration distinct from coalescing or particulate elements
• Designed specifically for use with the Wilkerson M21 adsorber filter housing
• Single-element package quantity allows straightforward replacement stocking
• Supports critical air purity requirements in instrumentation, finishing, and food-grade applications

Compatibility

Designed for use with the Wilkerson M21 Adsorber Filter housing.

Installation Notes

Element replacement should be performed by a qualified compressed air system technician or pipefitter. Depressurize and isolate the filter housing completely before opening and removing the spent element. Follow the M21 housing manufacturer instructions for element seating and housing reassembly to ensure a proper seal. Dispose of used carbon elements in accordance with local regulations, as they may contain adsorbed hydrocarbons.
