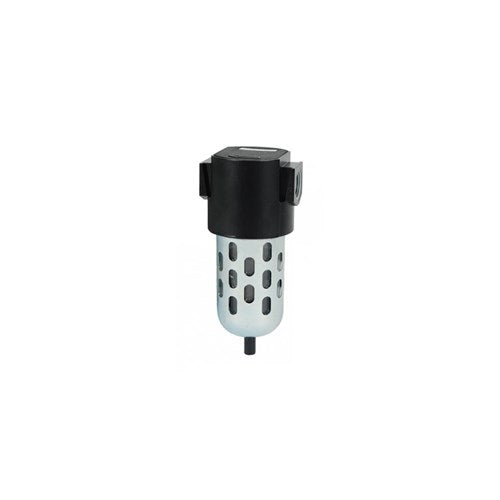

Wilkerson M18-04-BK00B Compressed Air Filter 1/2 in NPT

Product Description

The Wilkerson M18-04-BK00B compressed air filter removes water, dirt, and other contaminants from compressed air. This filter is essential in enhancing the quality of air in your system. It supports a filter rating of 0.5 microns, ensuring efficient filtration of impurities. The maximum flow rate is eighty-five cubic feet per minute, allowing it to handle substantial airflow. Designed with a maximum operating pressure of one hundred fifty psi, this filter is reliable for various applications.

• Removes water, dirt, and other contaminants
• 0.5 micron filter rating
• Maximum operating pressure of 150 psi

Product Highlights

This filter is a vital part of the Wilkerson FRL system, featuring a differential pressure indicator for monitoring filter performance.

Product Information

Standard Information

• Brand: Wilkerson
• Filter Type: Coalescing

Technical Specifications

• Filter Rating: 0.5 micron
• Maximum Flow Rate: 85 cfm
• Maximum Operating Pressure: 150 psi
• Filter Bowl Capacity: 1.7 oz
• Drain Type: Manual
• Overall Width: 2.375 inches
• Series: M18
• MPN: M18-04-BK00B
• Number of Air Inlets: 1
• Air Inlet Size: 1/2 inches
• Air Inlet Type: NPT
• Filter Bowl Material: Plastic
• Body Material: Aluminum
• Maximum Operating Temperature: 125 °F
• Overall Height: 8.375 inches
• Air Outlet Size: 1/2 inches
• Air Outlet Type: NPT
• Connection Style: Air Line
• Drain Included: Yes
• Filter Bowl Guard Included: Yes
• Filter Element Material: Borosilicate Cloth
• For Fluid Type: Oil; Water
• For Substance Type: Oil Aerosols; Solid Particulate; Water
• ISO Class: 2
• Includes: Differential Pressure Indicator
• Minimum Operating Temperature: -13 °F
• Number of Air Outlets: 1
• Overall Depth: 2.375 inches
• Pressure Drop: 3 psig
• Seal Material: Nitrile
• Port Size: 1/2 inches
• Filtration Level: 0.5 microns
• Bowl Material: Polycarbonate Bowl w/Bowl Guard
• Filter Exchange Sensing: No Indicator
• Thread Type: NPT
• Type: Coalescing Filter
• California Prop 65 Warning: Y
• Manufacturer: Wilkerson
• Material: Aluminum
• Model: M18-04-BK00B
• Features: Compressed Air Filter, Filter Type Coalescing, Air Inlet Size 1/2
• Assembled Product Weight: 1.4 lbs
• Height: 8.375 inches
