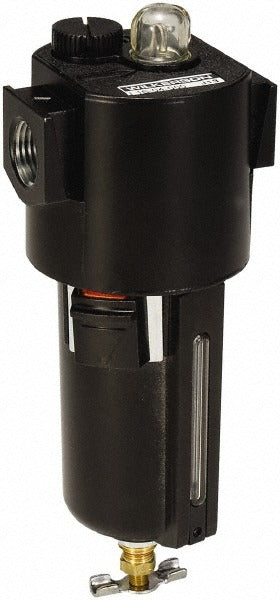

Wilkerson L16-04-G00 Air Lubricator 64 Cfm 1/2 Inch Npt

Product Description

The WILKERSON L16-04-G00 is a compact compressed air lubricator designed to deliver controlled oil mist into pneumatic systems, reducing friction and wear on downstream components. Part of the Series L16 modular lineup, it accepts a 1/2 inch NPT port and flows up to 64 CFM, making it suitable for moderate-duty pneumatic circuits. The zinc body and zinc bowl construction keep weight low at 1.8 pounds while maintaining structural integrity under normal shop-air pressures. A built-in sight glass allows technicians to monitor oil level without disassembly. Fluorocarbon seals provide compatibility with a broad range of lubricating oils used in compressed air service.

This lubricator is intended for use in compressed air distribution systems in light industrial, commercial, and mechanical service environments. It is typically installed as part of a filter-regulator-lubricator (FRL) assembly on pneumatic tool drops, control valve supply lines, and actuator circuits. The modular design allows it to connect directly with compatible Series L16 filter and regulator units, streamlining installation in tight panel or manifold configurations. Licensed mechanical contractors and industrial maintenance technicians are the primary installers.

Key Features

• 64 CFM flow capacity through a 1/2 inch NPT port suits moderate pneumatic circuit demands
• Modular connection design integrates with compatible Series L16 filter and regulator units
• Sight glass included for visual oil level monitoring without removing the bowl
• Zinc body and zinc bowl construction provides lightweight, corrosion-resistant housing
• Fluorocarbon seals rated for service down to 32 degrees F (0 degrees C)
• 5 oz bowl capacity reduces refill frequency on continuous-duty applications

Compatibility

Designed as a modular OEM-style compressed air lubricator for use in Series L16 FRL assemblies with 1/2 inch NPT compressed air supply lines.

Installation Notes

Installation should be performed by a qualified technician familiar with compressed air system service. Depressurize and isolate the air supply line completely before removing or installing this lubricator. Use thread sealant rated for pneumatic service on all NPT connections and verify all fittings are snug before re-pressurizing. Fill the bowl only with lubricating oil specified for compressed air systems and do not exceed the maximum fill line indicated on the sight glass.
