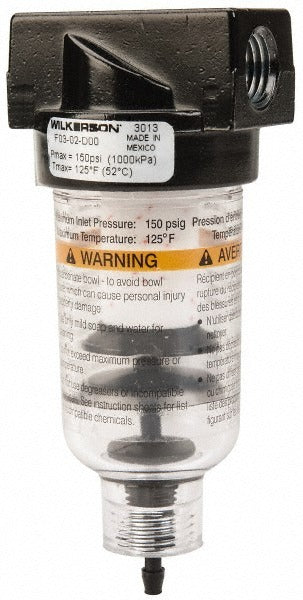

Wilkerson F03-02-D00 Air Filter 1/4 in Npt 5 Micron

Product Description

The WILKERSON F03-02-D00 is a miniature compressed air filter designed to remove particulate contamination from pneumatic lines. Part of the F03 series, it accepts 1/4 in NPT connections and delivers up to 24 standard cubic feet per minute (SCFM) of filtered airflow. The 5-micron filter rating captures fine particulates before they reach downstream components such as valves, actuators, and instrumentation. The polycarbonate bowl provides a clear view of accumulated liquid and debris without disassembly. A piston-style drain allows for manual bowl evacuation. Licensed pneumatic technicians and industrial maintenance professionals are the typical installers for this component.

The F03-02-D00 is suited for use in light industrial, manufacturing, and automation environments where clean, dry air is required at point-of-use. It fits inline on compressed air distribution lines upstream of directional control valves, cylinders, FRL assemblies, and precision pneumatic tooling. The compact miniature form factor makes it appropriate for panel-mounted or tight-clearance installations where a full-size filter body would not fit. Minimum operating temperature is 32 degrees F, making it appropriate for standard indoor industrial service.

Key Features

• 5-micron filtration rating removes fine particulate from compressed air supply lines
• 24 SCFM rated flow through 1/4 in NPT end connections
• Polycarbonate bowl offers visual inspection of bowl contents without removal
• Piston-style drain for manual evacuation of collected liquids and debris
• 1 oz bowl capacity suits miniature inline filter applications
• Compact body: 4.26 inches tall, 1.53 inches in diameter, 1.69 inches wide

Compatibility

Designed as an OEM-style inline compressed air filter for pneumatic systems using 1/4 in NPT ported connections. Part of the Wilkerson F03 series filter line.

Installation Notes

Installation should be performed by a qualified pneumatic or industrial maintenance technician. Depressurize the air line completely before connecting or removing the filter body. Apply thread sealant appropriate for compressed air service to NPT fittings per standard practice. Verify that system operating pressure and temperature do not exceed the rated limits of the polycarbonate bowl before placing into service.
